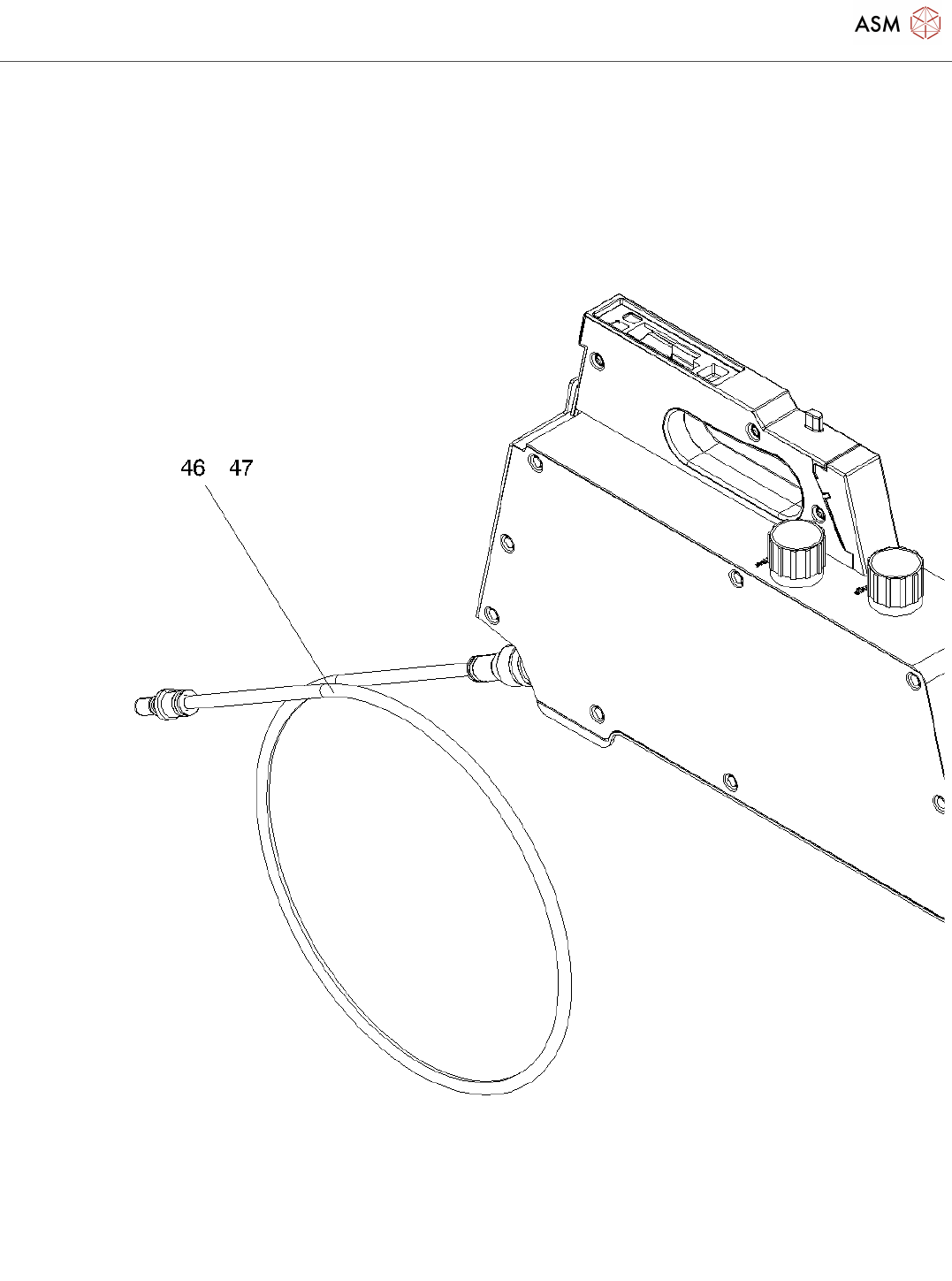

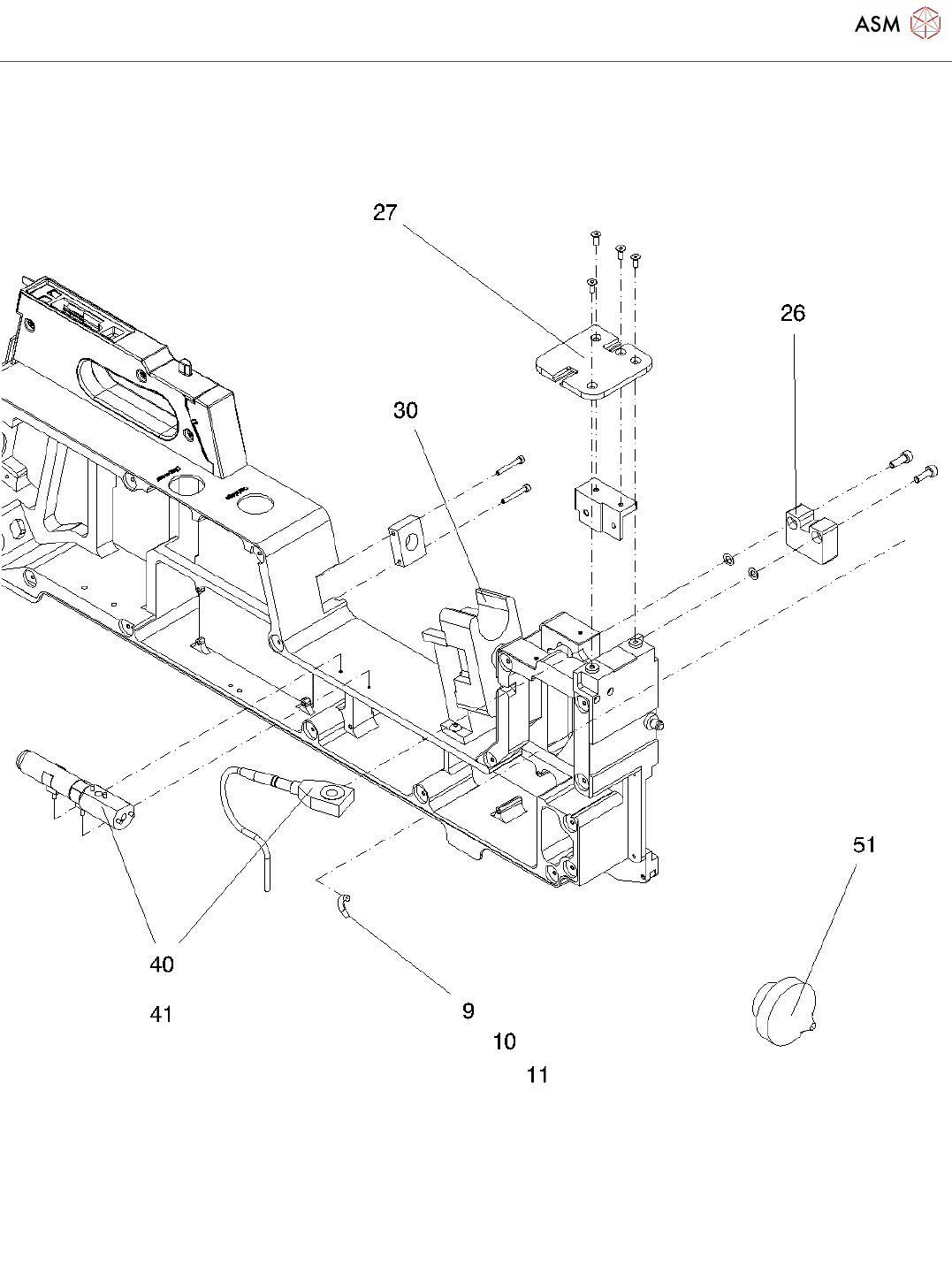

Glue Feeder_20211119_073016 - 第6页
Glue Feeder Page 6 / 9 19.11.2021
Glue Feeder
Page 5 / 9 19.11.2021
Glue Feeder
Page 6 / 9 19.11.2021
Glue Feeder
Page 7 / 9 19.11.2021
Pos. Item no. Description Part marking
1 03088129-01 GLUEFEEDER
2 03033496-01 REMFORM-SCREW RF-SN65-2,5 X
12-9.8
3 03065209S03 EDIF-SEKUNDARY CPL. /X2X8 Spare Part
4 03096482S01 SAFETY SENSOR PROTECTION
COVER REWORK
SPARE PART
5 03093009-01 SCHMERSAL SAFETY SENSOR BNS
250-11Z
Spare Part
6 03089046-01 TUBE FOR CARTRIDGE WEAR PART
7 00321633-01 PUSH-IN THREADED L FITTING
QSML-M5-6
STANDARD PARTS
8 03088692S02 COVER HANDLE SPARE PART
9 03094555-01 MICRO-DISPENSING VALVE P-DOT
WITH NOZZLE
10 03096487S01 DISPENSING VALVE P-DOT WITH
CABLE REWORK
WEAR PART
11 03088151-01 JETVALVE P-DOT
03094177-01 SPARE FLUIDICS WEAR PART
03094179S02 O-RING PUSHER NBR TF 2X1,5
OR2N15 10PC.
WEAR PART
03100695-01 GUIDE BUSHING V (FOR JETVENTIL) WEAR PART
03094220-01 FLAT NOZZLE FD6100 WEAR PART
51 03094182-01 NEEDLE JET ND6150 (150 MICROM.) WEAR PART
12 03003994S01 SLIDE GUIDE /REAR L200 SPARE PART
13 03019604S01 SLIDING FOIL X-FEEDER SPARE PART
14 03010209-01 ISO 7045 - M2.5 X 6-A2-50-H STANDARD PARTS
15 03133349S01 HANDLE WITH CONTROL PANEL V1
GLUEFEEDER
SPARE PART
16 00341370S01 BLADE, PARTITION SPARE PART
17 03033796-01 REMFORM-SCREW RF-SN75-2,5 X
6-9.8
STANDARD PARTS
18 03088137-01 FRAME MILLED GLUEFEEDER CPL.
19 03005196-01 ROLL, LOCKING X-SERIES SPARE PART
20 03015750-01 ISO 8734 - 3 X 10 - A-ST
21 03068667-01 SHOULDERED SCREW ø4X4,5 M3
/X2X8
SPARE PART
22 03088710S02 COVER GLUE FEEDER LEFT SPARE PART
23 03012683-01 COMPRESSION SPRING D-027 SPARE PART
