3 1 Specications 1.1 RS-232C Specications T ransmission Method Communication method: Full duplex Synchronous method: Start-stop synchronization T ransmission Speed 9600 bps , 19200 bps , 38400 bps , 57600 bps Data Bits…
2
Safety Information
3
1
Specications
1.1 RS-232C Specications
Transmission Method Communication method: Full duplex
Synchronous method: Start-stop synchronization
Transmission Speed 9600 bps
,
19200 bps
,
38400 bps
,
57600 bps
Data Bits 8 bits
Parity None
Stop bit 1 bits
Message terminator (delimiter) CR+LF
,
CR
Flow control Software (XON/XOFF control)
“Handshake (About Buffer Flow Control)” (p. 3)
Electrical
Specications
Input voltage level
5 to 15 V ON
-15 to -5 V OFF
Output voltage level
5 to 9 V ON
-9 to -5 V OFF

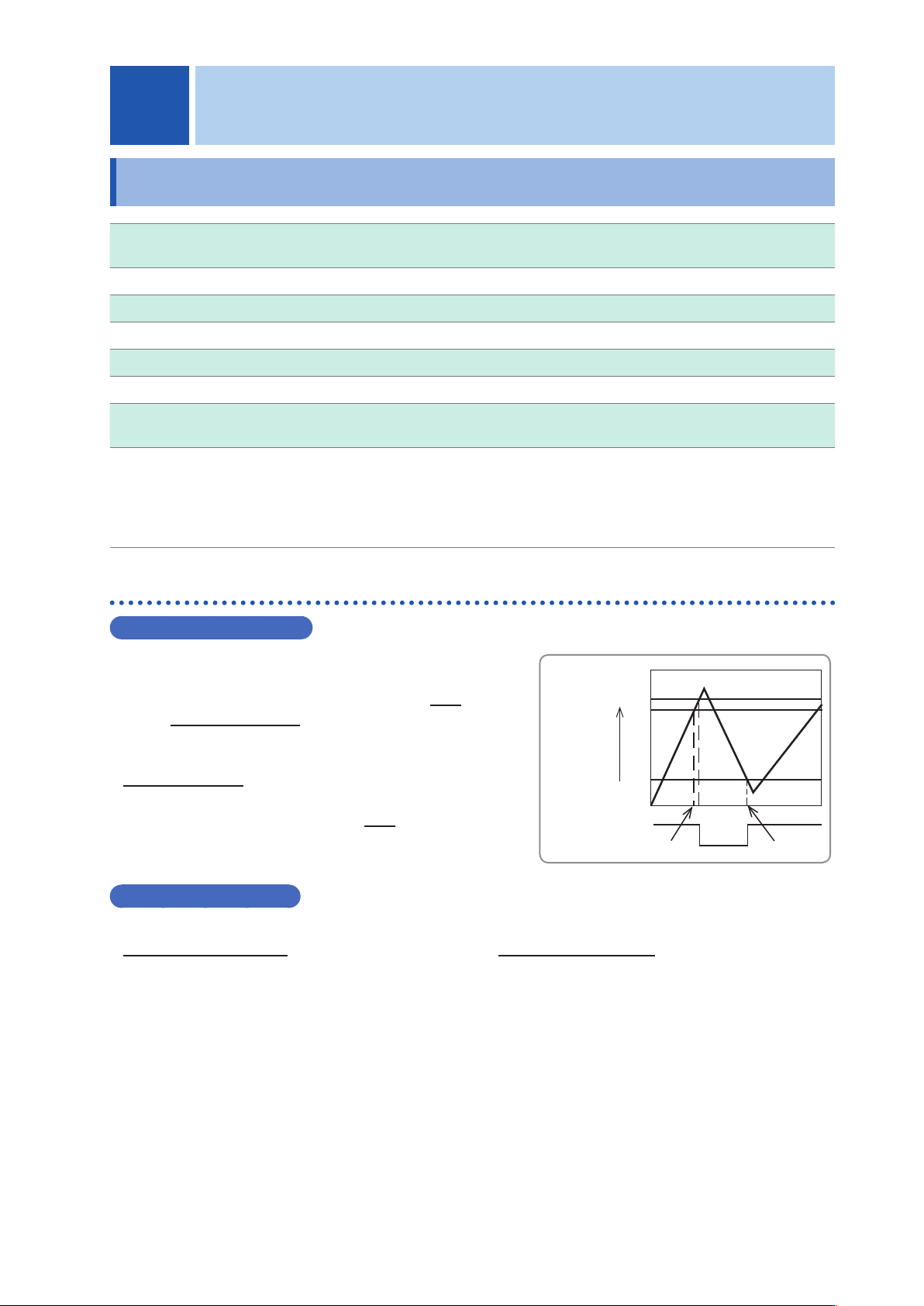

Handshake (About Buffer Flow Control)
Control during Receiving
Input Buffer
Usage
Amount
85%
75%
25%
Buffer Space
Send XON
Send XOFF
XON/XOFF control:
• When the data in the receive buffer exceeds 75% of the
buffer
,
XOFF(13H) is sent and the controller is notied
that there is not much space remaining in the buffer.
• Processing of the data in the buffer continues
,
and then
XON(11H) is sent and the controller is notied that there
is sufcient remaining space in the buffer when the
amount of data becomes less than 25%.
Control during Sending
XON/XOFF control:
• When XOFF is received
,
the sending of data is halted. When XON is received
,
the sending of data is
resumed.
1 Specications
1
4
GP-IB Specications
1.2 GP-IB Specications
SH1 Supports all source handshake functions.
AH1 Supports all acceptor handshake functions.
T6 Supports standard talker functions.
Supports serial poll functions.
Talk only mode is not supported.
Supports the talker cancel function by MLA (My Listen Address).
L4 Supports standard listener functions.
Listener only mode is not supported.
Supports the listener cancel function by MTA (My Talk Address).
SR1 Supports all service request functions.
RL1 Supports all remote/local functions.
PP0 Parallel poll functions are not supported.
DC1 Supports all device clear functions.
DT1 Supports all device trigger functions.
C0 Controller functions are not supported.
Code used: ASCII code
1.3 USB Specications
Connector Series B receptacle
Compliance tandard USB2.0 (Full Speed/High Speed)
No. of ports 1
Class Communication class
Supported OS Windows Vista
,
Windows 7
,
Windows 8
,
Windows 10
1.4 LAN Specications
Connector RJ-45 connector × 1
Compliance
standard
IEEE 802.3-compliant Ethernet
Transfer system 10BASE-T/ 100BASE-TX/ 1000BASE-T Auto detected
Protocol TCP/IP
Function Command control
