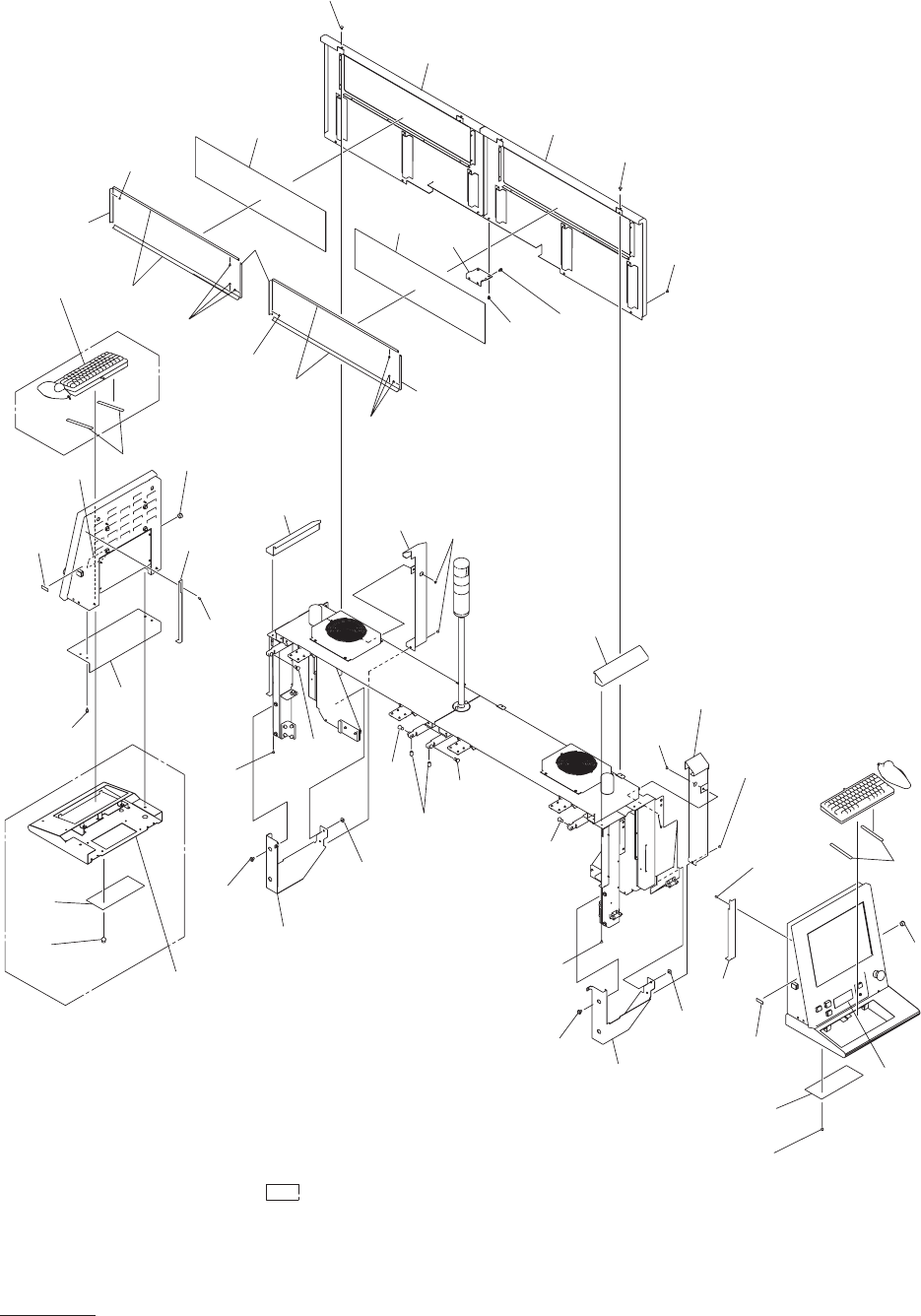

G -S005-05
0802-001
カバー部
COVER SECTION
Fig. G-3
中央カバー
Center Cover
226
265
内が後面用キーボード対応箇所です。
Inside the box shows the locations to be treated
when the Keyboard for Machine’s Rear side is attached.
218
207
212
231
211
292
214
292
214
221
221
221
221
226
233
211
218
241
208
216
217
217
216
216
215
215
213
279
.
273
.
269
266
.
267
.
268
287
286
286
286
243
242
254
287
287
287
248
246
278
247
272
.
273
.
269
278
245
278
272
.
273
.
269
256
.
257
.
258
291
292
256
.
257
.
258
265
292
See Fig. GA-5
Key No.461
241
See Fig. GA-5
Key No.404
G-3 illust-1
G -S005-05
1004-003
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
207 6301592275 COVER 1 858G--100-007 211AC274
208 6301592282 COVER 1 858G--100-008 211AC275
211 6301623849 NAME PLATE,PARTS 2 858G--100-731 6P441841
212 6301578170 COVER 1 0 858G--100-742 211AC101
213 6301612362 BRACKET 1 858G--100-743 211FD045
214 6301578736 FRAME 2 858G--100-744 210B4191
215 6301581255 COVER 2 858G--100-745 211AC140
216 6301581262 SUPPORT 4 858G--100-746 211K3425
217 6301550688 SUPPORT 4 858G--100-747 211K3383
218 6301287812 ACCESSORY,WIRING 2 858G--100-748 23N30627
221 6301508740 PIN,HINGE 4 858G--100-021 216D0550
226 6301561578 PLATE 1 2 858G--100-306 211DC783
231 6301572390 NAME PLATE,PARTS 1 858G--100-411 6P441800
233 6301572406 NAME PLATE,PARTS 1 858G--100-413 6P441801
241 6301414249 MECH PARTS(URETHAN SHEET) 2 4 858G--100-501 226J2211
242 6301612072 COVER 1 858G--100-702 211AC583
243 6301612089 COVER 1 858G--100-703 211AC584
245 6301578088 COVER 1 858G--100-705 211AC099
246 COVER 1 858G--100-706 211AD281
247 6301577593 COVER 1 858G--100-707 211AC091
248 6301577609 COVER 1 858G--100-708 211AC092
254 6300008883 SET SCREW 4 M3X4 SET
858G--100-034 221C0001
256 6300007510 BOLT,HEX-SCT 4 M3X8 858G--100-036 221A0006
257 4111412806 WASHER SPR 3 4 858G--100-037 221H0281
258 4111413902 WASHER V 3X7X0.5 4 858G--100-038 221H0312
265 4110511708 SCR TRS 4X6 4 8 858G--100-045 221E0532
266 6300007749 BOLT,HEX-SCT 2 M5X12 858G--100-826 221A0029
267 4111416705 WASHER SPR 5 2 858G--100-827 221H0287
268 4111414107 WASHER V 5X10X1 2 858G--100-828 221H0318
269 6300010220 WASHER 4 BW5 858G--100-829 221H0005
272 6300007626 BOLT,HEX-SCT 2 M4X10 858G--100-802 221A0017
273 4111412905 WASHER SPR 4 4 858G--100-803 221H0284
278 4110511708 SCR TRS 4X6 4 858G--100-808 221E0532
279 6300007619 BOLT,HEX-SCT 2 M4X8 858G--100-809 221A0016
286 4111408007 SCR TRS 5X6 8 858G--100-816 221E0536
287 4111147005 SCR PAN+SW+W 3X8 24 858G--100-817 221D0242
291 4111139109 SCR TRS 5X10 4 0 858G--100-821 221E0534
292 6300139860 BOLT,HEX-SCT 8 M4X8 858G--100-822 221A0158
