G -S005-04 0802-001 カバー準備 COVER PREP ARA TION COMPONENT Fig. GA-5 リアパネル Rear Panel 内が後面用キーボード対応箇所です。 Inside the box shows the locations to be treated when the Keyboard for Machine’s Rear side is attached. 481 474 . 475 .…
G -S005-04
0802-001
G -S005-04(GXH-3) G -S005-04(GXH-3)
後面用キーボード
Keyboard for Machine's Rear side

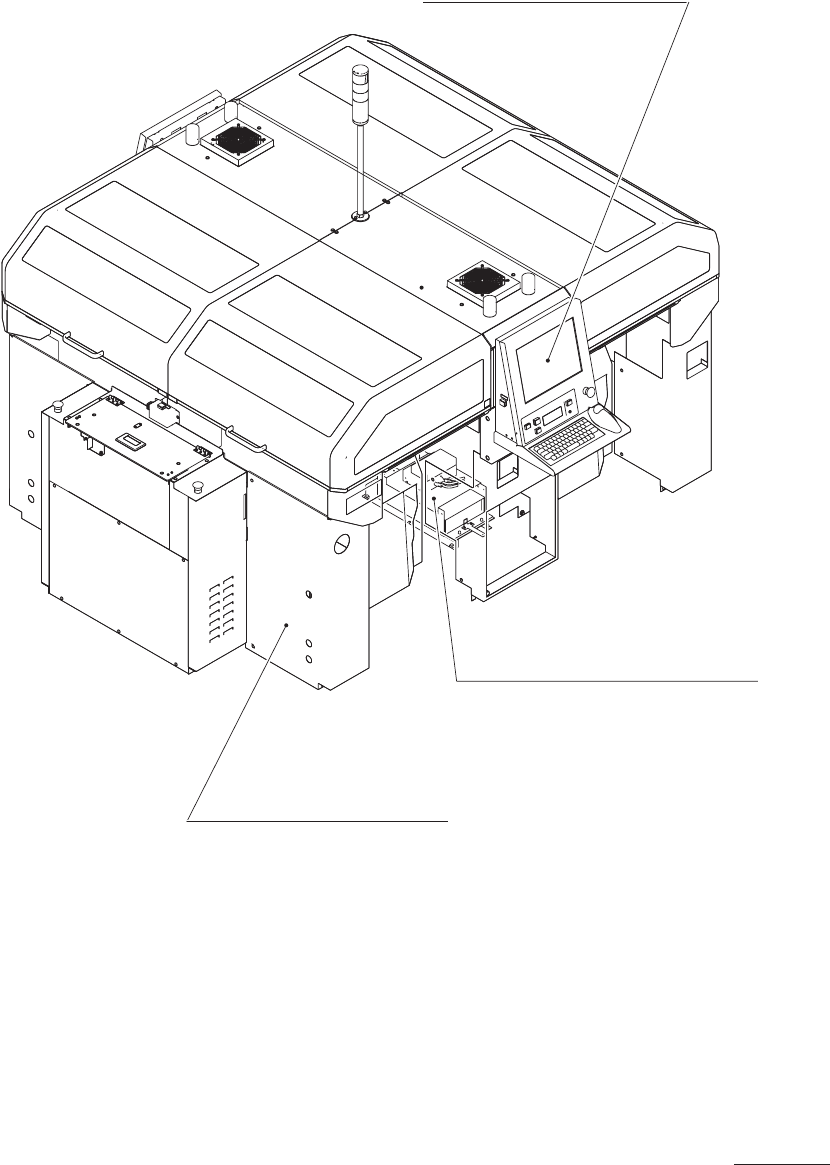

UNIT Illust-1
カバー部Fig.G COVER SECTION
カバー準備Fig.GA
COVER PREPARATION COMPONENT
操作PC部Fig.FA OPERATION PC SECTION
注)
イラストはGXH本体に後面用キーボードを設置をした場合の、本体対応箇所を
示しております。
Notice) The illustration shows the locations to be treated in t
he main machine when the
Keyboard for Machine’s Rear side is attached to the GXH main machine.
G -S005-04
0802-001
カバー準備
COVER PREPARATION COMPONENT
Fig. GA-5
リアパネル
Rear Panel
内が後面用キーボード対応箇所です。
Inside the box shows the locations to be treated
when the Keyboard for Machine’s Rear side is attached.
481
474
.
475
.
476
421
.
422
421
.
422
401
477
.
478
.
479
411
413
477
.
478
.
479
464
.
466
.
465
481
.
478
.
482
491
431
.
432
451
.
452
.
453
408
457
458
456
454
.
455
409
402
459
471
.
472
.
473
484
484
471
.
472
.
473
410
410
483
.
475
.
476
460
487
B
B
A
A
460
467
.
497
.
498
496
.
497
.
498
477
.
478
.
479
484
480
405
442
404
461
462
GA-5 illust-1
G -S005-04
1004-003
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
401 6301572697 BOX 1 845GA-100-301 211B1288
402 6301610337 BOX 1 845GA-100-302 211B1353
404 6301561530 BOX 1 845GA-100-304 211B1267
405 6301561547 BRACKET 1 845GA-100-305 211FC267
408 6301573373 PANEL 2 845GA-100-308 211C1354
409 6301561585 COVER 1 0 845GA-100-309 211AB888
410 6301563336 PLATE 2 845GA-100-310 211DC815
411 6301540504 PLATE 1 845GA-100-051 211DC568
413 6301376103 P.C.B,MOUNT 1 U01 845GA-100-063 4B111516
421 6300002713 SWITCH,BUTTON 2 S111,H111
845GA-100-151 4S1B0032
422 6300000382 ACCESSORY,SW 2 845GA-100-152 23H20003
431 6300137606 ACCESSORY,P.C.B 4 845GA-100-451 23L10024
432 6300137637 ACCESSORY,P.C.B 4 845GA-100-452 23L10025
442 6301320700 HINGE 2 845GA-100-502 226F0154
451 6300334609 SWITCH,BUTTON 1 S101 845GA-100-351 4S1B0085
452 6300334586 DISPLAY ELEMENT 1 845GA-100-352 4T400003
453 6300334593 ACCESSORY,SW 1 845GA-100-353 23H20029
454 6300002713 SWITCH,BUTTON 1 S102,H102
845GA-100-354 4S1B0032
455 6300000382 ACCESSORY,SW 1 845GA-100-355 23H20003
456 6300002515 SWITCH,BUTTON 1 S103 845GA-100-356 4S1B0012
457 6300002744 SWITCH,BUTTON 1 S104,H104A
845GA-100-357 4S1B0035
458 4070354704 LED SLP-721F 1 H104B 845GA-100-358 4T3A0246
459 6301241616 SWITCH,BUTTON 1 S105 845GA-100-359 4S1B0151
460 6301572024 UNIT,DISPLAY 1 N74 845GA-100-360 4U210130
461 6301235837 UNIT,I/O 1 N75
845GAA100020-A051
4U250152
462 6301235844 UNIT,I/O 1 N76
845GAA100020-A052
4U250153
464 6300938692 BOLT 4 M4X8 845GA-100-854 221E0176
465 4111414008 WASHER V 4X9X0.8 4 845GA-100-855 221H0315
466 4111412905 WASHER SPR 4 4 845GA-100-856 221H0284
467 4111410307 NUT HEX 4 4 845GA-100-407 221F0082
471 6300007503 BOLT,HEX-SCT 4 M3X6 845GA-100-331 221A0005
472 4111412806 WASHER SPR 3 4 845GA-100-332 221H0281
473 4111413902 WASHER V 3X7X0.5 4 845GA-100-333 221H0312
474 6300007626 BOLT,HEX-SCT 2 M4X10 845GA-100-334 221A0017
475 4111412905 WASHER SPR 4 8 845GA-100-335 221H0284
476 4111414008 WASHER V 4X9X0.8 8 845GA-100-336 221H0315
477 6300007756 BOLT,HEX-SCT 6 10 M5X12 845GA-100-337 221A0030
478 4111416705 WASHER SPR 5 10 14 845GA-100-338 221H0287
479 4111414107 WASHER V 5X10X1 6 10 845GA-100-339 221H0318
480 4111408007 SCR TRS 5X6 2 845GA-100-340 221E0536
GXH-3PH
G -S005-04
GA-5
GA-5 list-1
