Brief Description Disassembly Sequence Sequence of the Placement Head Exchan ge Assembly Instructions / Montageanleitung Head Reconfiguration K it C&P20A 45 Sequence o f the Pla cement He ad Exchang e 2.5 Sequence of…

Brief Description

Head Modularity SX 70x SIPLACE SX 1

44 Assembly Instructions / Montageanleitung Head Reconfiguration Kit C&P20A

Head Modularity SX 70x

2.4 Head Modularity SX 70x

The following head configuration options are available:

SIPLACE SX 1

2.4.1 SIPLACE SX 1

Head configurations on the SIPLACE SX 1

SIPLACE SX 2

2.4.2 SIPLACE SX 2

Head configurations on the SIPLACE SX 2

Gantry 1 Default cameras Options

C&P20A STT 23 ----

CPP_H SST 29 Component camera SST 38

Stat. camera SST 33 (from FS 04 and in low installation posi-

tion only)

CPP_L SST 29 Component camera SST38

TwinHead SST 33 Stat. camera SST 25 (location 1 only)

3D coplanarity module ST 37 (location 1 only)

Gantry 1 / Gantry 2 Default cameras Options

C&P20A / C&P20A STT 23 ----

CPP_H / CPP_H SST 29 Component camera SST 38

Stat. camera SST 33 possible on location 1 and

2 (from FS 04 and in low installation position on-

ly)

CPP_L / CPP_L SST 29 Component camera SST38

CPP_H / TwinHead STT 29 (on gan-

try 1)

Twin SST33 (on

gantry 2)

CPP:

Component camera SST 38

Stat. camera SST 33 (from FS 04 and in low in-

stallation position only)

TwinHead:

Stat. camera SST 25 (location 1 only)

3D coplanarity module SST 37 (location 1 only)

TwinHead / TwinHead SST 33 Stat. camera SST 25 (location 1 only)

3D coplanarity module ST 37 (location 1 only)

Brief Description

Disassembly Sequence Sequence of the Placement Head Exchange

Assembly Instructions / Montageanleitung Head Reconfiguration Kit C&P20A 45

Sequence of the Placement Head Exchange

2.5 Sequence of the Placement Head Exchange

Disassembly Sequence

2.5.1 Disassembly Sequence

NOTICE

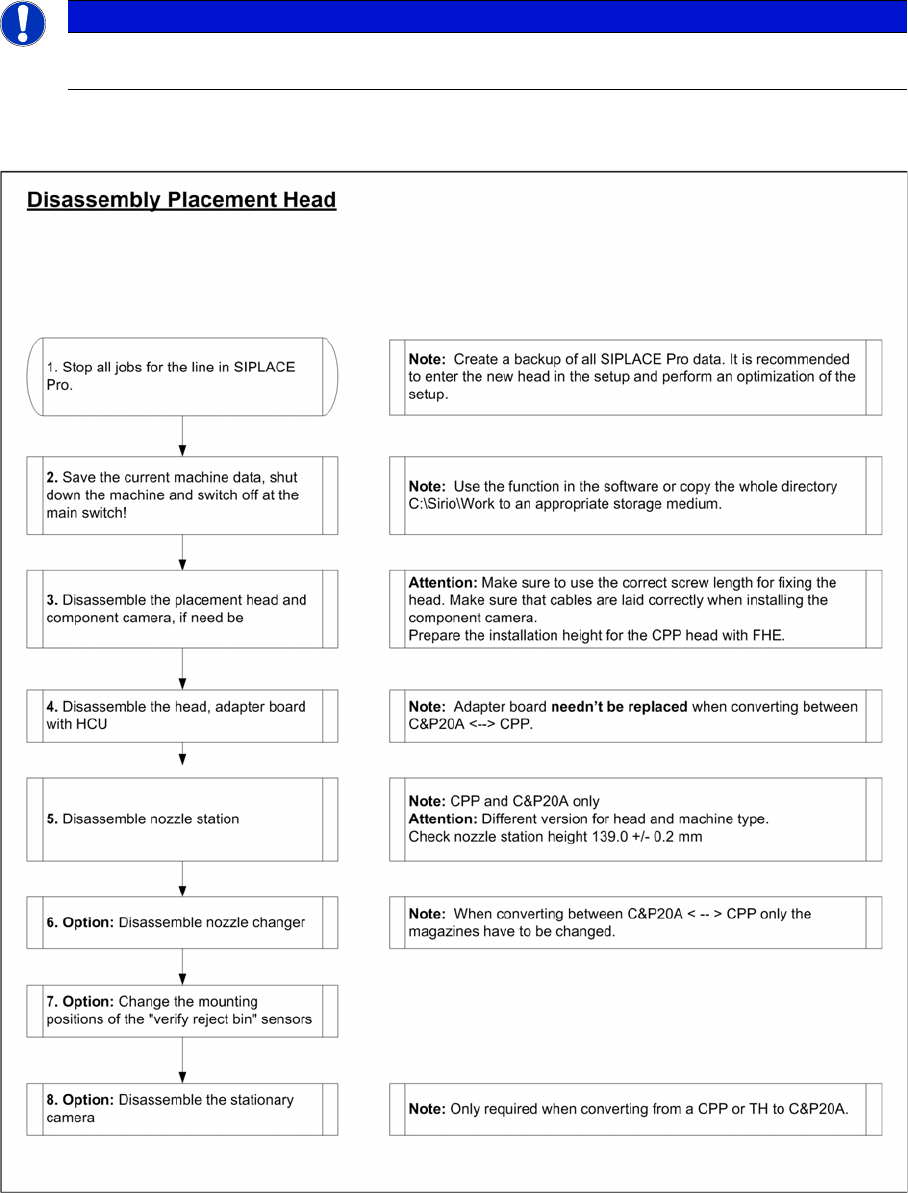

The flow charts describe the general procedure for switching between different placement head

types on SX1/2 machines from SW70x.

Brief Description

Sequence of the Placement Head Exchange Assembly Sequence

46 Assembly Instructions / Montageanleitung Head Reconfiguration Kit C&P20A

Assembly Sequence

2.5.2 Assembly Sequence
