Installing the C&P20A Placement Head Configuration of the Placement Heads in SIPLACE Pro Before Disas sembling the Placement Head Assembly Instructions / Montageanleitung Head Reconfiguration K it C&P20A 47 Insta…
Brief Description

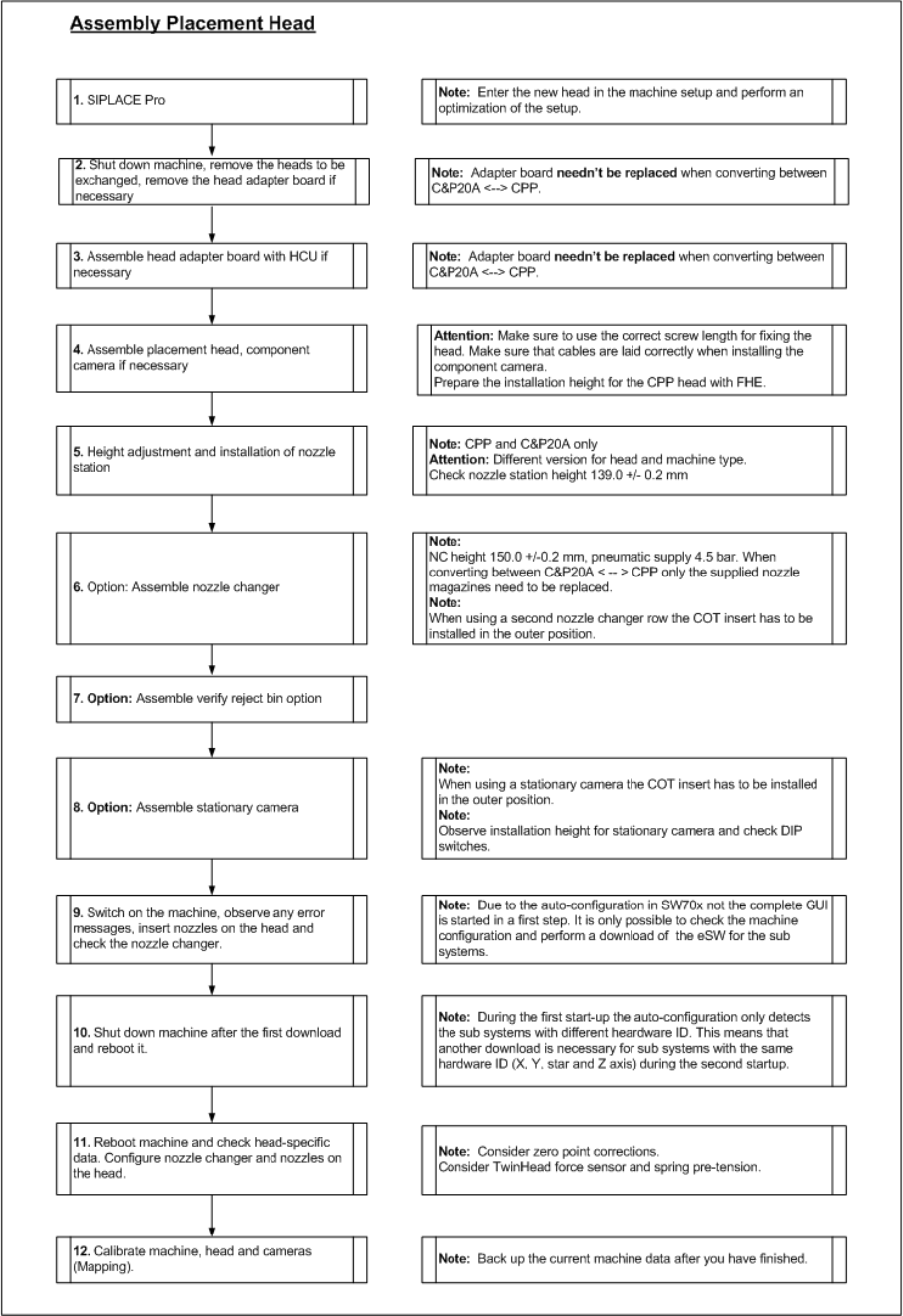

Sequence of the Placement Head Exchange Assembly Sequence
46 Assembly Instructions / Montageanleitung Head Reconfiguration Kit C&P20A
Assembly Sequence
2.5.2 Assembly Sequence
Installing the C&P20A Placement Head
Configuration of the Placement Heads in SIPLACE Pro Before Disassembling the Placement Head
Assembly Instructions / Montageanleitung Head Reconfiguration Kit C&P20A 47
Installing the C&P20A Pla cement He ad
3 Installing the C&P20A Placement Head
Before installing the C&P20A placement head you have to save the current configuration and machine
data first and then remove the placement head to be replaced.
If you replace a CPP head by a C&P20A head, start with sections "3.1 Before Disassembling the Place-
ment Head" [ ➙ 47] and "3.2 Disassembling the CPP Placement Head" [ ➙ 48].
If you replace a TwinHead by a C&P20A head, start with sections "3.1 Before Disassembling the Place-
ment Head" [ ➙ 47] and "3.3 Disassembling the TwinHead" [ ➙ 50].
If you install the C&P20A head on a gantry with no head installed so far, start with sections "3.1 Before
Disassembling the Placement Head" [ ➙ 47] and "3.4 Assembly of the C&P20A Placement Head" [ ➙
53].
Before Disassembling the Placement Head
3.1 Before Disassembling the Placement Head
Configura tion of the Place ment Heads in SIPL ACE Pro
3.1.1 Configuration of the Placement Heads in SIPLACE Pro
► In SIPLACE Pro stop all jobs on the line.
► Back up all SIPLACE Pro data.
NOTICE
It is recommended to enter the new head (cameras and nozzles) into the setup at this point in
time and to perform an optimization for the setups.

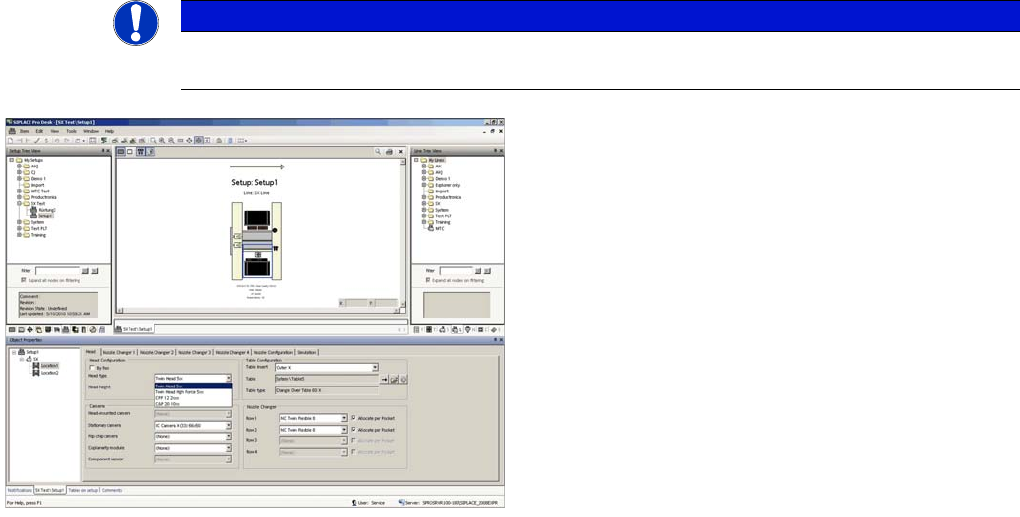

► In the Setup Properties dialogue enter the type of the
placement head, the camera type and the nozzle
changer configuration for the relevant machine loca-
tion.
► Re-optimize the setup in SIPLACE Pro. Make sure to
set correct head height.
Installing the C&P20A Placement Head
Disassembling the CPP Placement Head Saving the Existing Machine Data
48 Assembly Instructions / Montageanleitung Head Reconfiguration Kit C&P20A
Saving the Existing Machine Data
3.1.2 Saving the Existing Machine Data
► Insert a USB stick or another appropriate storage medium into the USB slot of the station computer.
► Save the machine data to the storage medium. Select Service --> Archive machine data...
Docking Out the Component Trolley and Switching Off the Machine
3.1.3 Docking Out the Component Trolley and Switching Off the Machine
► Dock out the component trolleys.
► Shut down the station computer and switch off the machine at the main switch.
► Disconnect the machine from the main power and the pneumatic supplies.
► Always secure the machine against unauthorized reactivation. See "1.2 Preparatory Work..." [➙ 38].
Disassembling the CPP Placement Head
3.2 Disassembling the CPP Placement Head
Disconnecting Data and Pneumatic Lines
3.2.1 Disconnecting Data and Pneumatic Lines
CAUTION
► You must wear the ESD armband during all work on the placement head.

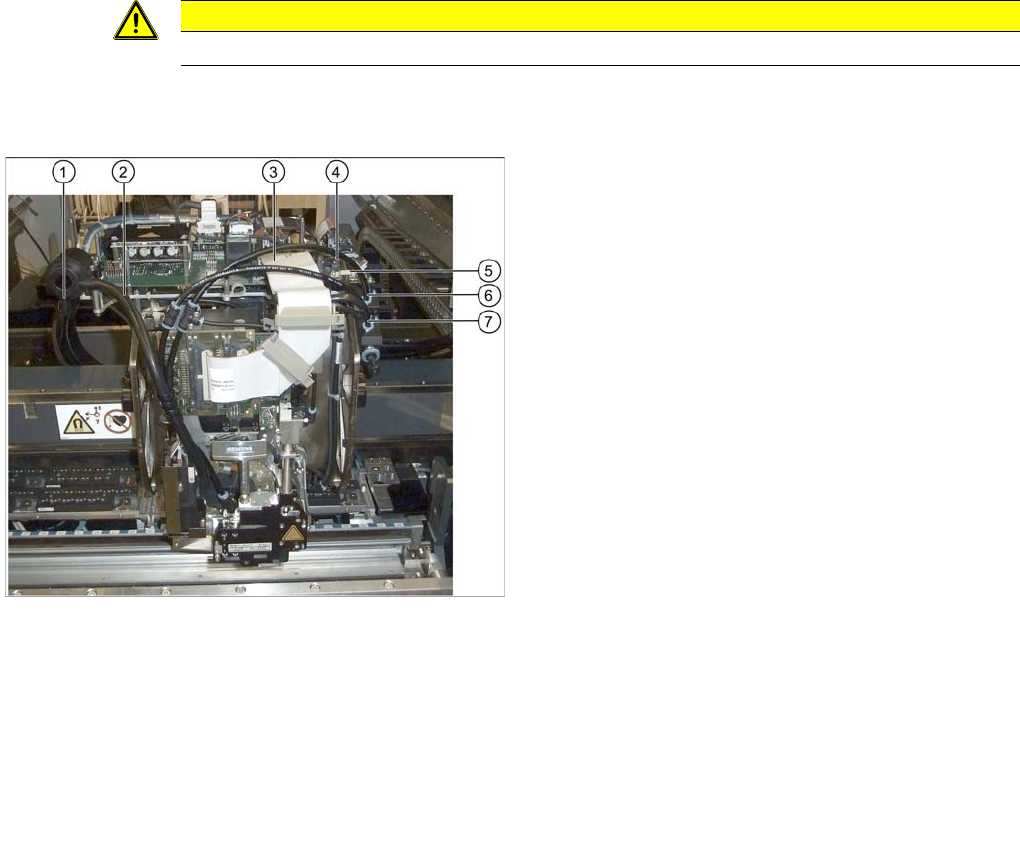

Disconnecting data and pneumatic lines
Legend
1. Cover cap on the silencer
2. Discharged air hose to silencer
3. Flat ribbon cable to the head adapter
4. Component camera connector
5. Cable holder of the component camera cable
6. Pneumatic hose of the pickup / placement circuit
7. Pneumatic hose of the holding circuit
► Disconnect the discharged air hose (2) on the silenc-
er.
► Remove the cover cap when converting to a Twin-
Head (1).
► Unplug the flat ribbon cable from the head adapter
(3).
► Disconnect the two connectors from the component
camera (4).
► Remove the cable holder (strain relief) of the compo-
nent camera cable (5).
► Disconnect the pneumatic hoses of the pickup /
placement circuit (6) and the holding circuit (7) from
the compressed air distributor.
► Remove all blanking plugs on the compressed air dis-
tributor when converting to a TwinHead.
