Installing the C&P20A Placement Head

Removing CPP Head Disassembling the CPP Placement Head

Assembly Instructions / Montageanleitung Head Reconfiguration Kit C&P20A 49

Removing CPP Head

3.2.2 Removing CPP Head

Further Aspects for the C onfigurati on

3.2.3 Further Aspects for the Configuration

The following points have to be observed when replacing a CPP head by a C&P20A head:

▪ The existing head adapter can be kept.

▪ The CPP nozzle magazines are to be replaced by DC&P20A nozzle magazines. The basic nozzle

changer body on SX machines is identical for both head types.

▪ The reject bin and the nozzle station can still be used.

Continue with section "3.4 Assembly of the C&P20A Placement Head" [ ➙ 53].

CAUTION

► Firmly hold the placement head at its handle when loosening the fixing screws to prevent

the head from falling and avoid a possible damage.

Legend

1. Fixing screws on the left side

2. Fixing screws on the right side

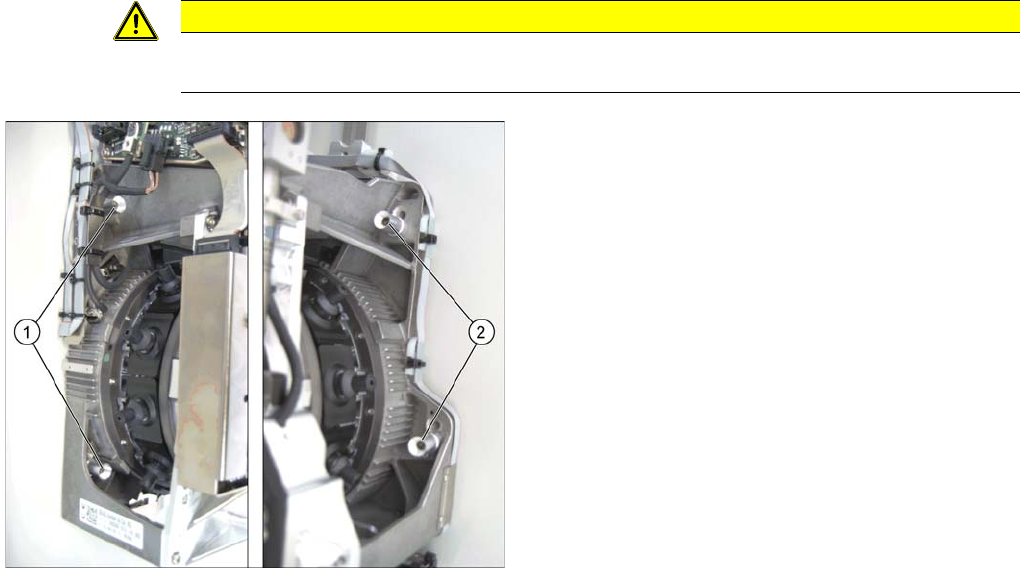

In this graphic the fixing screws are shown in the "head

top" position.

► Loosen the four fixing screws of the CPP head (the

screws stay in the sockets).

► Lift the CPP head out of the machine.

Installing the C&P20A Placement Head

Disassembling the TwinHead Further Aspects for the Configuration

50 Assembly Instructions / Montageanleitung Head Reconfiguration Kit C&P20A

Disassembling the TwinHead

3.3 Disassembling the TwinHead

The TwinHead consists of 2 identical Twin segments, which are fitted at an angle of 180° to one another.

When changing over to another placement head type both segments must be removed.

Parts, Equipment and Tools

▪ Torque screwdriver 100-500 Ncm [03078400-xx]

Removal

CAUTION

► You must wear the ESD armband during all work on the placement head.

NOTICE

The removal procedure is described here for module 1 (left). Repeat the procedure for

module 2 (right).

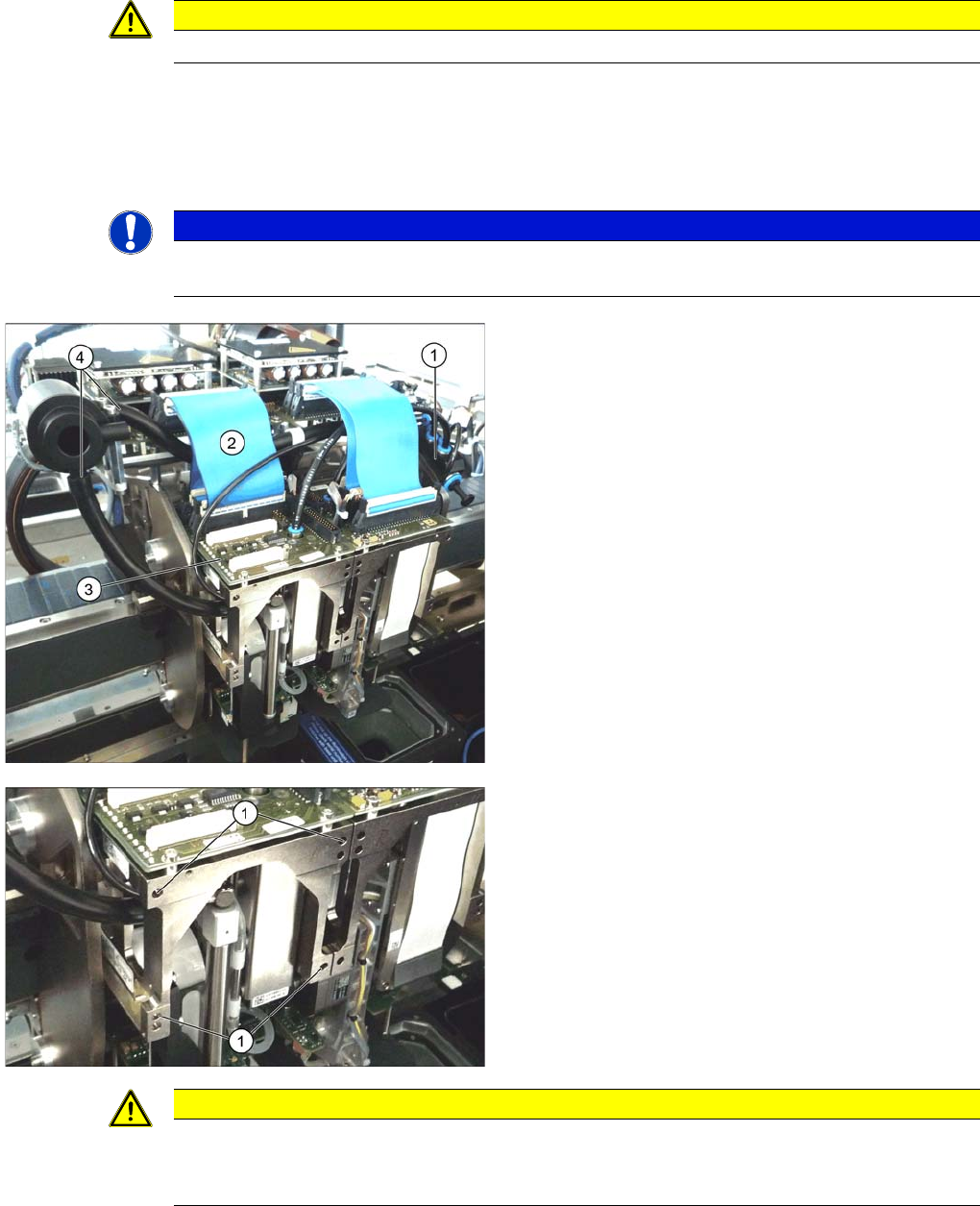

► Move the gantry into a position which allows you best

access.

► Unplug the pneumatic connection from the TwinHead

vacuum generator to the pneumatic distributor (1)

and the silencer.

► Remove both discharged air hoses from the silencer

(4).

► Unplug the pneumatic connection from the pneumat-

ic distributor (1) to the TwinHead return cylinder.

► Unplug the flat ribbon cable (2) from the head main

board (3) on the TwinHead.

Each module is fixed with 4 screws to the head plate and

is positioned with two pins.

► Loosen the 4 M4x14 fixing screws (1) with a long Al-

len key.

► Pull the module out of the locating pins.

► Remove module 2 the same way.

CAUTION

Removal instruction

The individual modules are not secured with a hook like it is the case for the C&P20A and the

CPP head. They can fall down.

Installing the C&P20A Placement Head

Conversion of the Head Adapter Disassembling the TwinHead

Assembly Instructions / Montageanleitung Head Reconfiguration Kit C&P20A 51

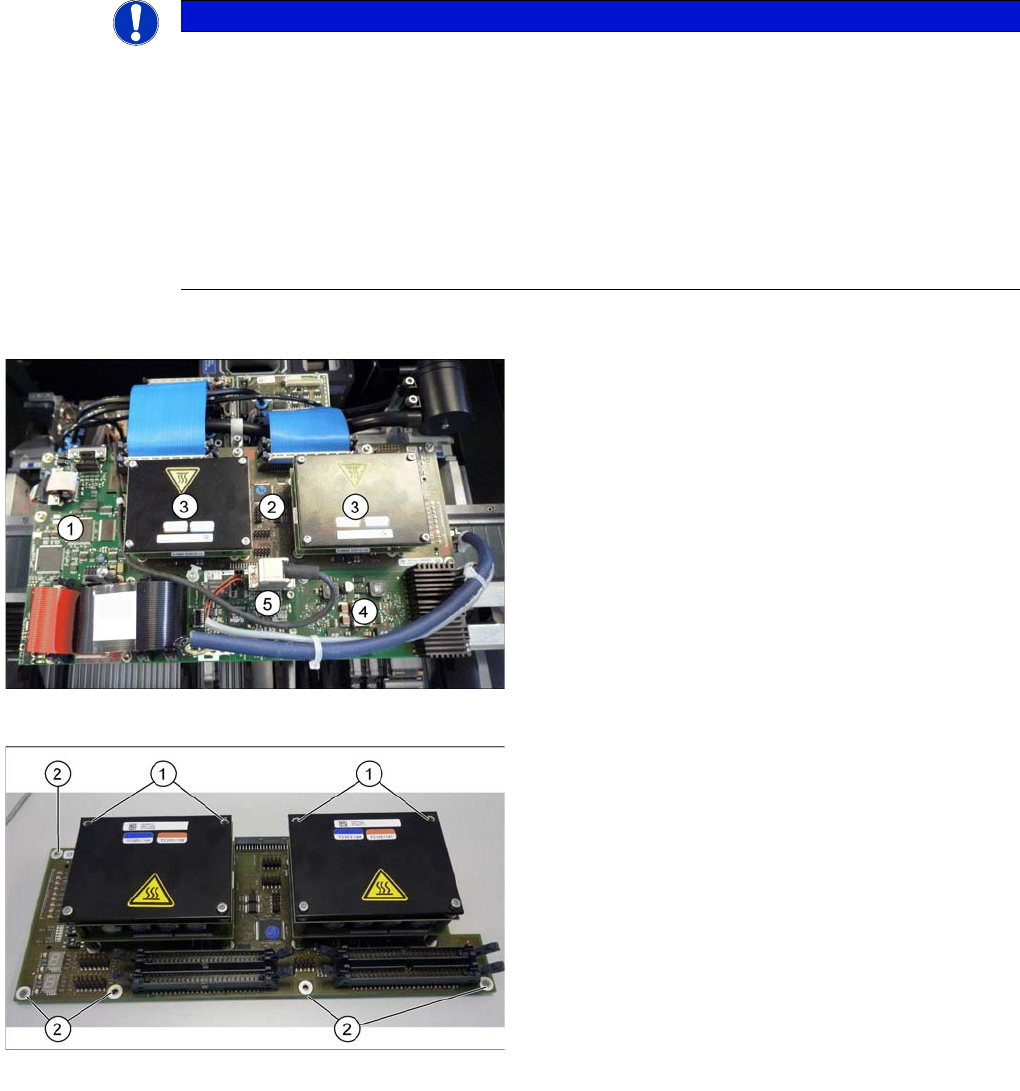

► Remove the stationary camera. Further information can be found in the Service Manual SX 1/2

[00196497-xx] in the section describing the exchange of the stationary component camera.

The reject bin of the stationary camera can be kept when changing over to a CPP head. When changing

over to a C&P20A head the reject bin must be removed. Further information can be found in the Assem-

bly Instructions "Reject Bin SX1/2 [00196615] or in the Assembly Instructions "Stationary Camera SI-

PLACE SX [00196608-xx].
