Installing the C&P20A Placement Head Assembly of the C&P20A Placement Head Height Adjustment and Inst allation of the Nozzle Station 58 Assembly Instructions / Mont ageanleitung Head Reconfiguratio n Kit C&P2…
Installing the C&P20A Placement Head
Height Adjustment and Installation of the Nozzle Station Assembly of the C&P20A Placement Head
Assembly Instructions / Montageanleitung Head Reconfiguration Kit C&P20A 57
Installing the Downholder and the Coding Sheet
3.4.3.3 Installing the Downholder and the Coding Sheet
Depending on the configuration of the SX machine either the reject bin [03063238-xx] with downholder
[03079173-xx] or the component reject bin up to 6x6 [03062378--xx] is used on occupied box locations.
On unoccupied bin locations the coding sheet (No Box) [03083883-xx] has to be installed.
For the description of the configurations refer to "3.4.3.3.1 Configurations with Reject Bins and Coding
Sheet" [ ➙ 57].
For the description of the installation and the removal refer to "3.4.3.3.2 Installing/Removing Downhold-
er" [ ➙ 58] and "3.4.3.3.3 Installing/Removing Coding Sheet" [ ➙ 59].
Configura tions with Reject Bins and Coding S heet

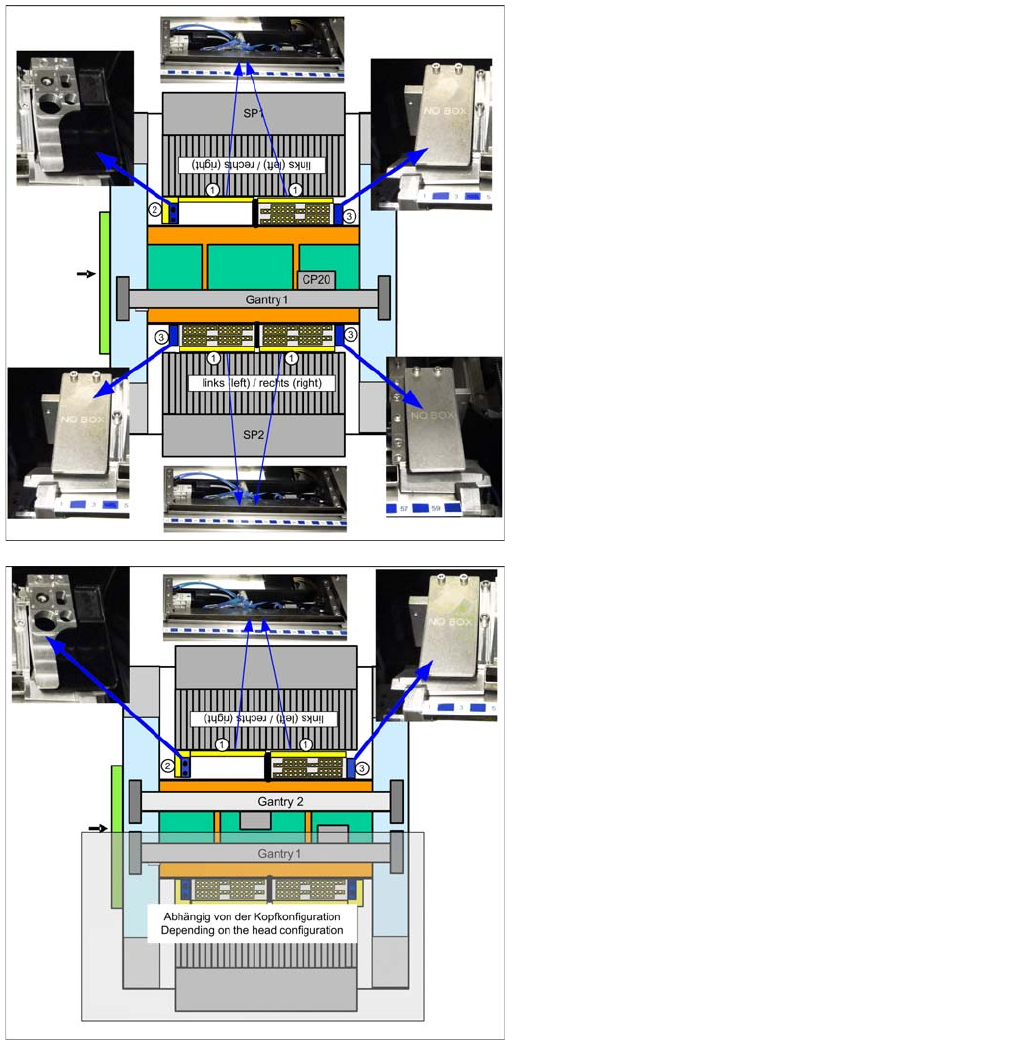

Configurations with Reject Bins and Coding Sheet
SX 1
Nozzle station in SP1 right, component reject bin up to
6x6 [03062378--xx] in SP1 and 2, coding sheet in SP1 left
as well as in SP2 left and right
SX2
Nozzle station right, component reject bin up to 6x6
[03062378--xx], coding sheet left
On the other gantry: depending on the head configura-
tion.
Installing the C&P20A Placement Head
Assembly of the C&P20A Placement Head Height Adjustment and Installation of the Nozzle Station
58 Assembly Instructions / Montageanleitung Head Reconfiguration Kit C&P20A
Installing/Removing Downholder
Installing/Removing Downholder
Installing downholder
Removing downholder
When exchanging the placement head type it may be necessary, depending on the new configuration,
to remove downholders and reject bins and replace them by coding sheets on unopccupied bin locations.
The configurations with reject bins, downholders and coding sheets are described in the relevant assem-
bly instructions ([00196429--xx] for changeover to C&P20A, [00196430-xx] for changeover to CPP and
[00196431--xx] changeover to TwinHead).
► Remove the two screws (1 and 2) and lift off the downholder.
► Remove the reject bin.
► Insert the reject bin [03063238-xx].
► Fasten the downholder [03079173-xx] directly on the
cast part of the used tape channel using two screws
(1 and 2).
No shim plates are required.
Installing the C&P20A Placement Head
Height Adjustment and Installation of the Nozzle Station Assembly of the C&P20A Placement Head
Assembly Instructions / Montageanleitung Head Reconfiguration Kit C&P20A 59
Installing/Removing Coding Sheet
Installing/Removing Coding Sheet
Coding sheets are used on unoccupied bin locations.
Installing coding sheet
Coding sheet left and right
► Fasten the coding sheet [03083883-xx] directly on cast part of the used tape channel using two
screws (1 and 2).
No shim plates are required.
Removing coding sheet
When exchanging the placement head type it may be necessary, depending on the new configuration,
to remove downholders and reject bins and replace them by coding sheets on unopccupied bin locations.
The configurations with reject bins, downholders and coding sheets are described in the relevant assem-
bly instructions ([00196429--xx] for changeover to C&P20A, [00196430-xx] for changeover to CPP and
[00196431--xx] changeover to TwinHead).
► Remove the two screws (1 and 2) and lift off the coding sheet.
