MODEL CD-G100 0702-003 6 4 6 12 5 2 3 7 8 7 1 9 9 58 63 56 67 62 55 57 57 54 67 62 55 See Fig.LF-1 Key No.61 66 61 . 52 . 51 CD-G100 機構部 CD-G100 MECHANICAL SECTION Fig. LE-1 機構部 Mechanical Section
MODEL CD-G100
0702-002
5
For GXH-1
For GXH-1J
G-S052-03
CD-G100
CD-G100
G-S052-03
G-S052-04
CD-G100

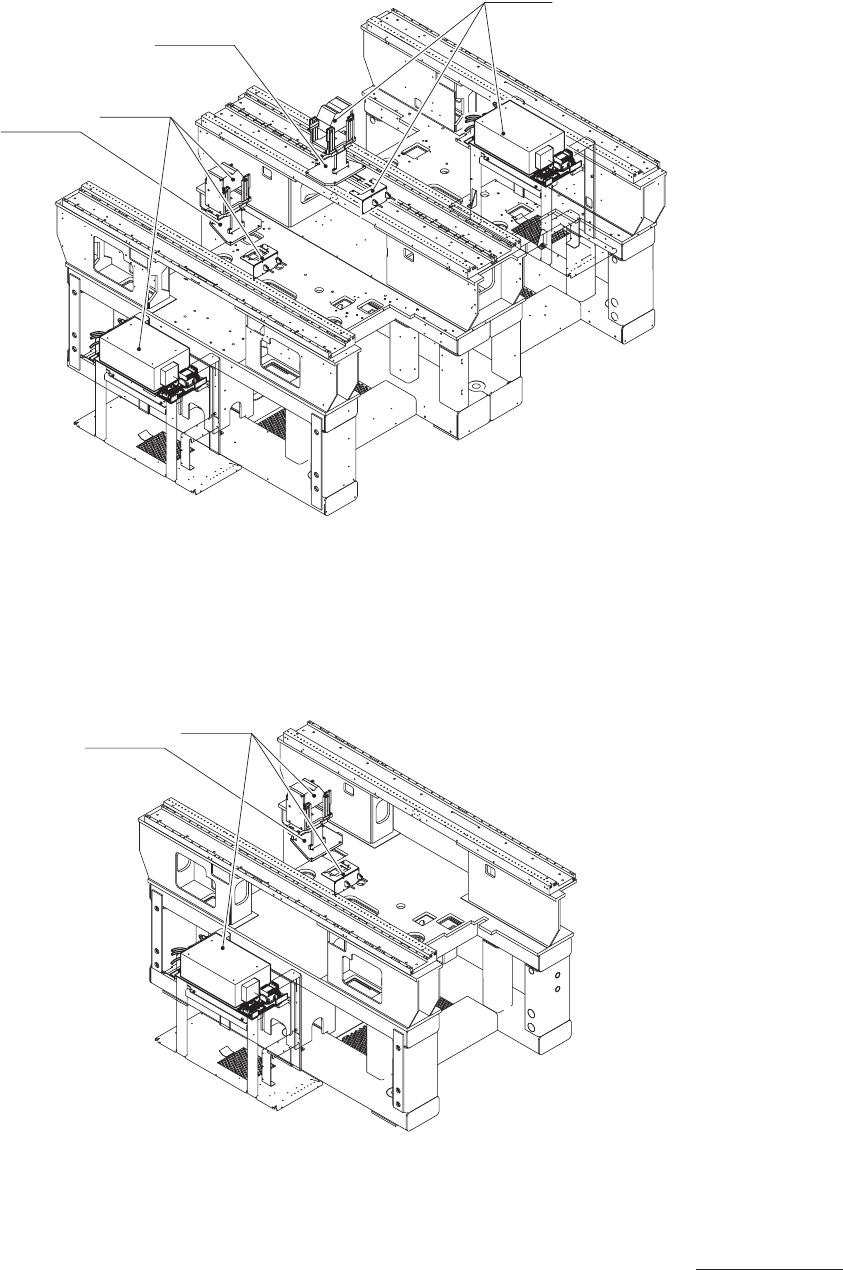

コプラナリティチェックユニット
CD-G100
Coplanarity Check Unit CD-G100
（多段トレイフィーダ
FP-G200
搭載
(Case:Multi-Layer Tray Feeder
の場合）
FP-G200 Used)
MODEL CD-G100
0702-003
6
4
6
12
5
2
3
7
8
7
1
9
9
58
63
56
67
62
55
57
57
54
67
62
55
See Fig.LF-1
Key No.61
66
61
.
52
.
51
CD-G100
機構部
CD-G100 MECHANICAL SECTION
Fig. LE-1
機構部
Mechanical Section
MODEL CD-G100
1012-005
7
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
1 6301319995 PLATE 1 806LE-110-001 211DA044
2 6301320007 PLATE 1 806LE-110-002 211DA045
3 6301372471 PLATE 1 806LE-110-003 211DA608
4 6301372464 PLATE 1 806LE-110-004 211DA607
5 6301320090 SHAFT 1 806LE-110-005 213A1133
6 6301320083 COLLAR 1 806LE-110-006 216A1209
7
6301320038 STAY 4 806LE-110-007 211J1255
8 6301320045 STAY 4 806LE-110-008 211J1256
9 6301320052 BLOCK 4 806LE-110-009 211G3799
12 6301340876 ROD END 1 806LE-110-012 222B0103
51
6300007510 BOLT,HEX-SCT 4 M3X8 221A0006
52
6300007558 BOLT,HEX-SCT 4 M3X16 221A0010
54
6300007619 BOLT,HEX-SCT 4 M4X8 221A0016
55
6300007763 BOLT,HEX-SCT 4 M5X16 221A0031
56
4110511708 SCR TRS 4X6 2 M4X6 TRS 221E0532
57
6300082296 SET SCREW 4 M4X4 SET 221C0027
58
4111410901 NUT HEX 8 1 M8 221F0089
61
4111412806 WASHER SPR 3 4 SW3 221H0281
62
4111416705 WASHER SPR 5 4 SW5 221H0287
63
4111413100 WASHER SPR 8 1 SW8 221H0291
66
4111413902 WASHER V 3X7X0.5 4 FW3 221H0312
67
4111414107 WASHER V 5X10X1 4 FW5 221H0318
LE-1
