P-198-001e - 第127页
MEMO
MODEL TCM-3600J-2
0109-001
124
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
6-1
53 630 053 1022 GUIDE,LINEAR 2 703J--01H-005
54 411 141 0703 NUT HEX 6 2 M6
55 630 053 8113 BOLT,HEX 2 703J--01H-028
56 411 141 4008 WASHER V 4X9X0.8 8 FW4
57 411 141 2905 WASHER SPR 4 8 SW4
58 630 000 7664 BOLT,HEX-SCT 8 M4X20
59 630 064 5682 PLATE 1 703J--01B-009
60 630 053 8106 MECH PARTS (STOP PINS) 1 703J--01H-027
61 411 141 4107 WASHER V 5X10X1 4 FW5
62 411 141 6705 WASHER SPR 5 4 SW5
63 630 000 7770 BOLT,HEX-SCT 4 M5X20
64 630 053 2050 HOLDER 1 703J--01B-011
65 630 001 0220 WASHER 2 703J--01H-025
66 411 141 6705 WASHER SPR 5 2 SW5
67 630 000 7763 BOLT,HEX-SCT 2 M5X16
74 630 064 5705 PLATE 1 703J--01B-026
75 630 001 0213 WASHER 2 703J--01H-128
76 411 141 2905 WASHER SPR 4 2 SW4
77 630 000 7633 BOLT,HEX-SCT 2 M4X12
78 630 064 6986 SENSOR,PHOTO 1 703J--01H-022
80 411 088 9005 WASHER F 3X6X0.5 2 FWS3 F
81 411 086 4408 WASHER SPR 3 2 SW3 F
82 411 113 0502 SCR PAN 3X14 2 M3X14 PAN
91 630 001 0251 WASHER 10 703J--01H-024
92 411 141 3209 WASHER SPR 10 10 SW10
93 630 000 8166 BOLT,HEX-SCT 10 M10X50
94 630 053 1244 CYLINDER 1 SV24A, SV24B 703J--01H-010
95 630 003 5223 AIR LINE EQPT 2 703J--01H-011
96 630 064 8294 ROD 1 703J--01B-010
97 411 141 1403 NUT HEX 12 1 M12-3
98 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
99 411 141 3001 WASHER SPR 6 4 SW6
100 630 000 7886 BOLT,HEX-SCT 4 M6X16
MEMO
MODEL TCM-3600J-2
0109-001
126

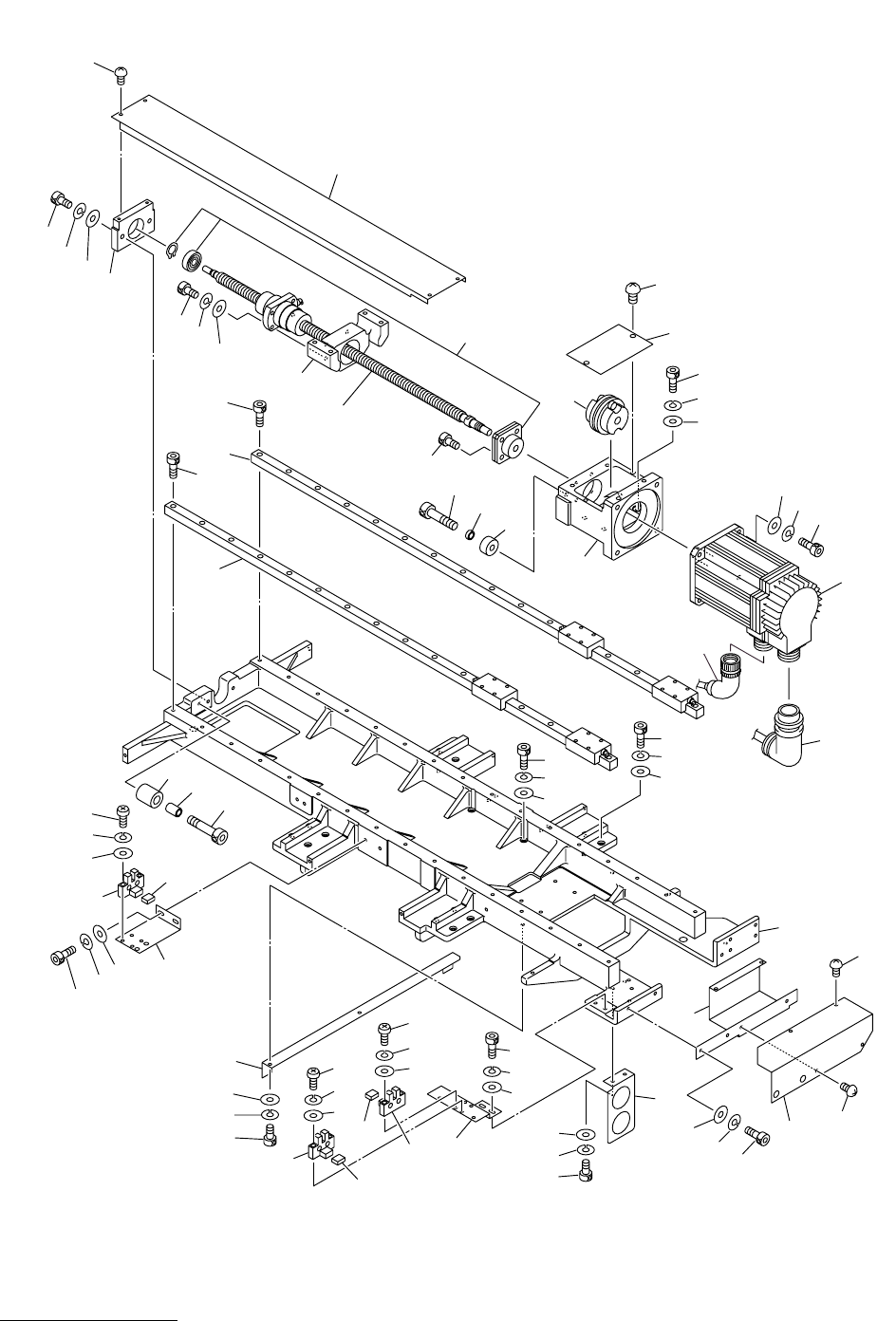

㨄㨅࠹ࡉ࡞ㇱ XY TABLE SECTION
Fig. 6-2 㨅ゲ Y Axis
1
61
64
64
63
65
13
9
12
12
52
52
44
44
45
33
32
32
31
30
30
25
24
24
23
23
21
51
51
11
11
16
20
38
46-1
46-1
47
26
26
27
19
18
40
40
41
41
42
39
39
15
14
14
7
48
49
49
50
50
66
2-1
2-1
3
4
5
2
17
17
22
45
45
43
43
52
52
51
51
3
62
94
95
96
4
5
13
12
11
11
9
10
13
13
12
12
11
11
10
9
16
15
14
6
66
66
10
46
91
92
93
123
117
Fig.6-2
TCM-3600J-2
TCM-3500Z-2
