P-198-001e - 第149页
MODEL TCM-3600J-2 0109-001 147 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 6-7 1 630 064 5514 BRACKET 1 703J--01B-048 2 630 000 0252 SEN SO R, PH OT O 2 PHS105, PHS106 703J--01H-071 3 630 000 0269 SENSOR,PHOTO(CONN…
MODEL TCM-3600J-2
0109-001
146
㨄㨅࠹ࡉ࡞ㇱ XY TABLE SECTION

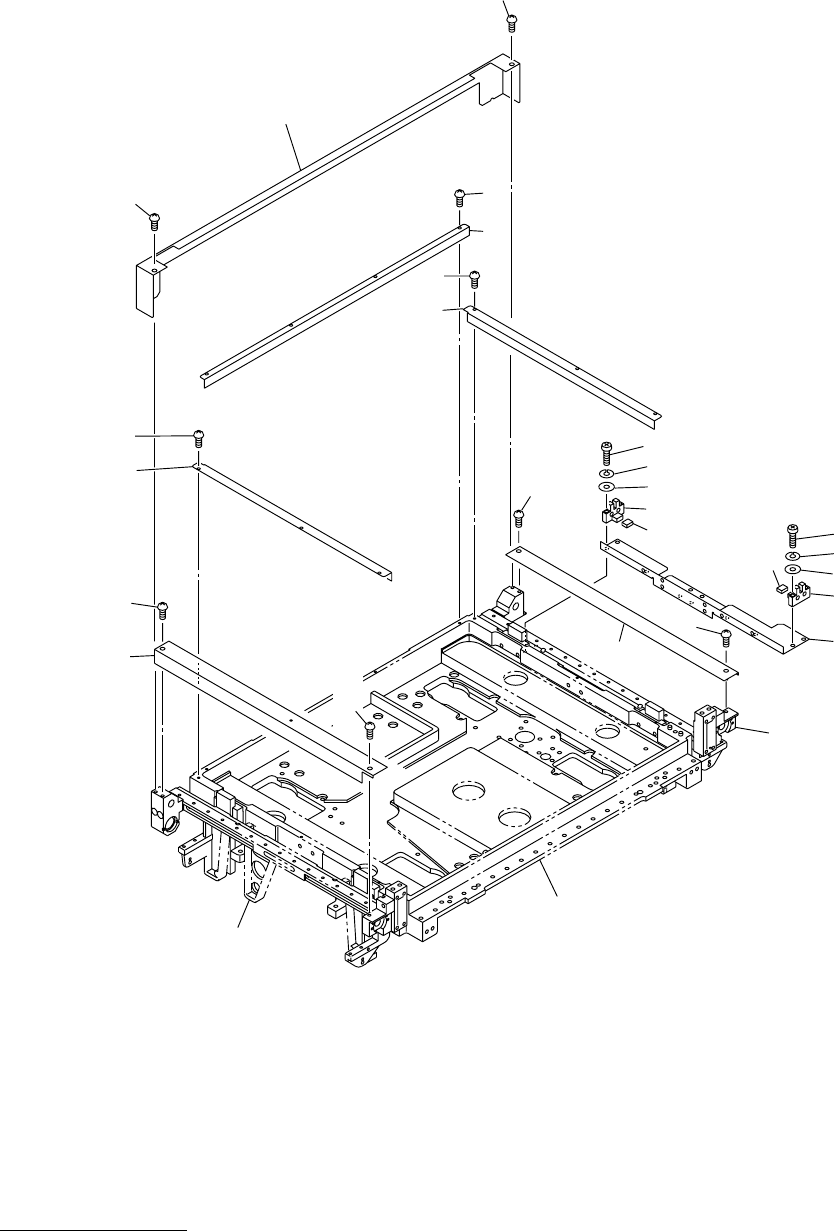

Fig. 6-7 ࠪࡘ࠻ࠞࡃ Chute Cover
See Fig.6-6
Key No.45
10
19
19
19
19
18
18
19
16
9
8
9
7
9
6
5
4
2
3
6
5
4
2
1
3
17
17
11
See Fig.6-6
See Fig.6-6
Key No.6
See Fig.6-3
Key No.1
11
11
9
MODEL TCM-3600J-2
0109-001
147
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
6-7
1 630 064 5514 BRACKET 1 703J--01B-048
2 630 000 0252 SENSOR,PHOTO 2 PHS105, PHS106 703J--01H-071
3 630 000 0269 SENSOR,PHOTO(CONNECTOR) 2 703J--01H-075
4 411 119 1909 WASHER V 3X7X0.5 4 FW3 F
5 411 086 4408 WASHER SPR 3 4 SW3 F
6 411 113 0502 SCR PAN 3X14 4 M3X14 PAN
7 630 064 5903 COVER 1 703J--01B-046
8 630 064 5927 COVER 1 703J--01B-052
9 411 051 1708 SCR TRS 4X6 4 M4X6 TRS
10 630 064 5910 COVER 1 703J--01B-047
11 411 051 1708 SCR TRS 4X6 2 M4X6 TRS
16 630 068 3059 COVER 1 703J--01B-144
17 630 068 3042 COVER 1 703J--01B-143
18 630 068 3066 COVER 1 703J--01B-145
19 411 050 5004 SCR TRS 3X6 10 M3X6 TRS
MODEL TCM-3600J-2
0109-001
148
㨄㨅࠹ࡉ࡞ㇱ XY TABLE SECTION

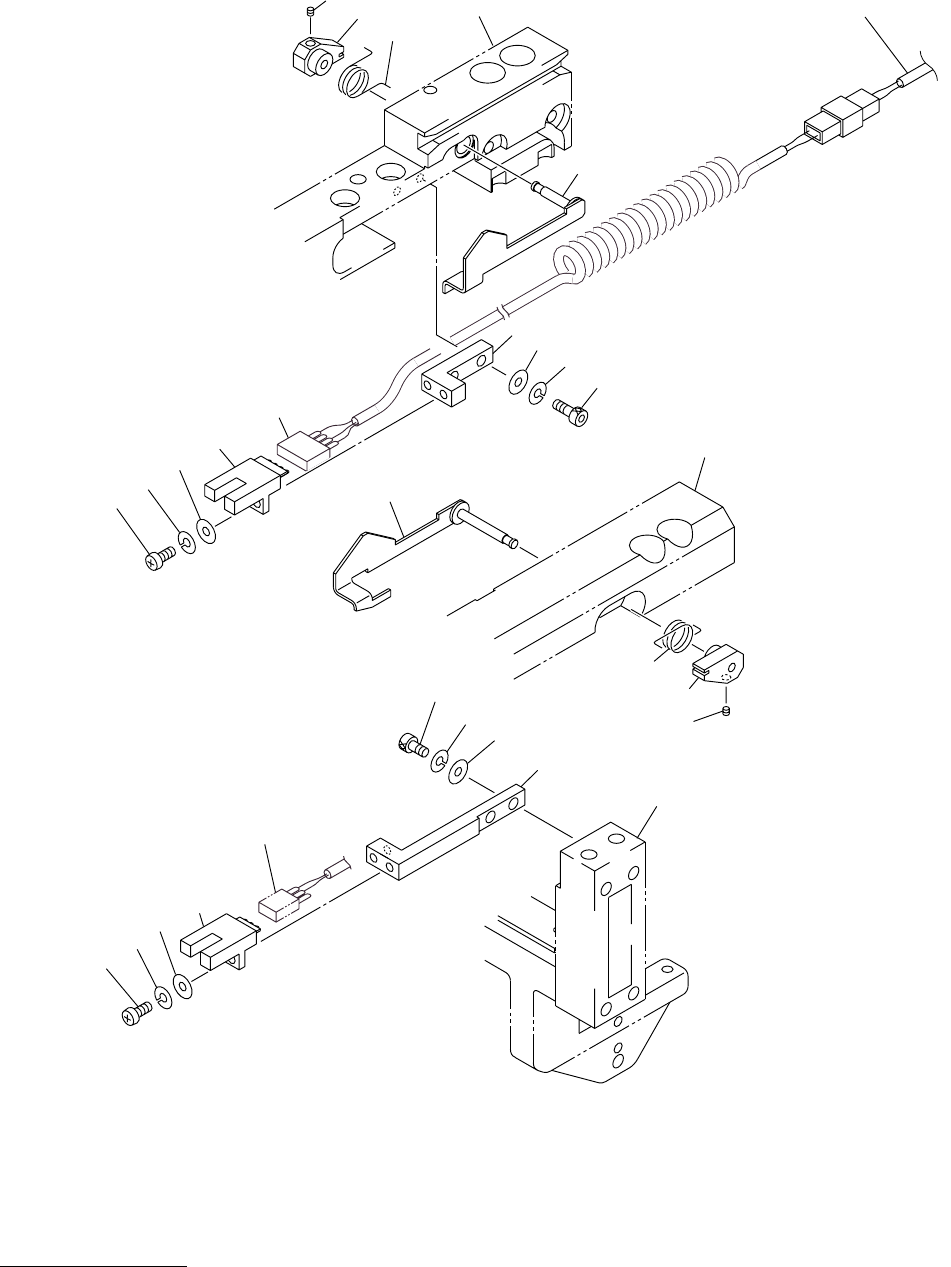

Fig. 6-8 ၮ᧼ᬌࡃ P.C.B. Detector Lever
10
5
1
4
2
3
11
12
21
21
24
23
25
30
30
31
32
32
26
26
27
29
28
22
6
125
125
9
8
7
See Fig.6-5
See Fig.6-5
Key No.41
Key No.41
See Fig.6-10
Key No.113
See Fig.6-5
Key No.21
See Fig.6-5
Key No.1
See Fig.6-10
Key No.113
