MODEL TCM-3600J-2 0109-001 155 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 7-1 2 630 073 7301 BASE(CONVEYOR L) 1 703G--01B-001 3 630 053 0629 PLA TE 1 703G--01B-004 4 41 1 141 4107 WASHER V 5X10X1 2 F W 5 5 41 1 14…
MODEL TCM-3600J-2
0109-001
154

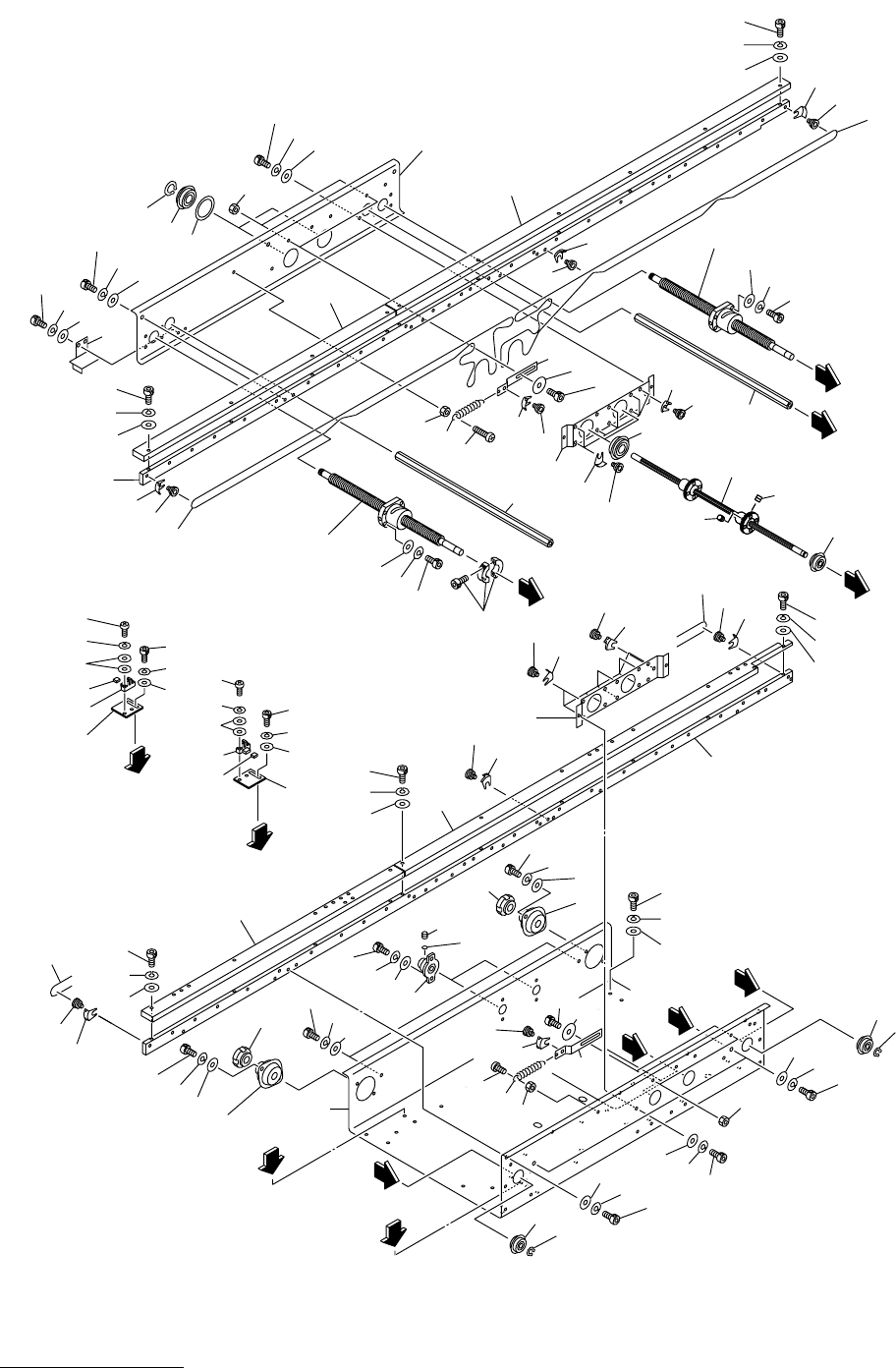

㧸ࠦࡦࡌࠕㇱ L CONVEYOR SECTION
Fig. 7-1 ࠦࡦࡌࠕ Conveyor
76
74
73
71
72
75
79
78
77
74
72
73
75
76
79
79
78
78
77
77
71
71
E
F
12
12
11
9
13
13
15
14
16
68
67
66
69
69
45
18
17
59
60
57-1
57-1
57
53-2
53-2
53
59
60
58
28
28
27
27
38
A
B
C
D
29
30
42
42
43
43
44
36
35
34
39
39
40
31
32
41
14
15
15
31
32
16
16
4
5
6
45
37
36
35
34
33
2
26
26
26-1
25
25
24
24
23
23
22
22
33
92
93
91
A
B
D
F
E
37
37
18
18
53-2
53
19
54
53
53-3
53-3
53
53-1
53
96
53-3
3
56
53-1
53-1
53
56-1
56-1
59
55
55
53
53-3
53-3
60
58
10
53-3
53
53
21
21
59
59
58
58
8
60-1
60-1
7
46
46
48
48
47
28
29
27
30
30
38
38
53
53-3
53-3
53
54
58
8-1
53-3
53-3
53
55
20
59
58
60
47
47
48
48
44
43
43
42
53
53
53-3
46
46
C
Fig.7-1
TCM-3600J-2
41
40
40
39
MODEL TCM-3600J-2
0109-001
155
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
7-1
2 630 073 7301 BASE(CONVEYOR L) 1 703G--01B-001
3 630 053 0629 PLATE 1 703G--01B-004
4 411 141 4107 WASHER V 5X10X1 2 FW5
5 411 141 6705 WASHER SPR 5 2 SW5
6 630 000 7749 BOLT,HEX-SCT 2 M5X10
7 630 001 1548 BEARING,RADIAL 2 703G--01H-022
8 630 073 7349 PLATE (MAE) 1 703G--01B-012
8 -1 630 073 7332 PLATE (OKU) 1 703G--01B-011
9 630 073 7325 PLATE,LOCATE(L) 1 703G--01B-003
10 630 053 0612 PLATE,LOCATE 1 703G--01B-006
11 411 141 4107 WASHER V 5X10X1 2 FW5
12 411 141 6705 WASHER SPR 5 2 SW5
13 630 000 7749 BOLT,HEX-SCT 2 M5X10
14 411 141 4305 WASHER V 6X12.5X1.6 6 FW6
15 411 141 3001 WASHER SPR 6 6 SW6
16 630 000 7886 BOLT,HEX-SCT 6 M6X16
17 630 030 5913 COLLAR 2 703G--01B-007
18 630 001 1531 BEARING,RADIAL 4 703G--01H-021
19 630 065 4264 GUIDE,SLIDE 2 703G--01H-024
20 411 000 7805 RING C 20 2 703G--01H-023
21 630 000 8883 SET SCREW 2 M3X4 SET
22 630 008 5303 BEARING,UNIT 2 703G--01H-020
23 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
24 411 141 3001 WASHER SPR 6 4 SW6
25 630 000 7886 BOLT,HEX-SCT 4 M6X16
26 630 000 8920 SET SCREW 2 M4X6 SET
26 -1 630 053 5419 COLLAR 2 703G--01B-025
27 630 065 4295 BALL SCREW 2 703G--01H-010
28 411 141 4008 WASHER V 4X9X0.8 8 FW4
29 411 141 2905 WASHER SPR 4 8 SW4
30 630 000 7657 BOLT,HEX-SCT 8 M4X16
31 630 001 1432 BEARING,RADIAL 2 703G--01H-009
32 411 000 7300 RING C 12 2 703G--01H-004
33 630 031 0566 BEARING,UNIT 2 703G--01H-012
34 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
35 411 141 3001 WASHER SPR 6 4 SW6
36 630 000 7879 BOLT,HEX-SCT 4 M6X12
37 630 031 0573 NUT 2 703G--01H-013
38 630 064 8133 STAY 2 703G--01B-008
39 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
40 411 141 3001 WASHER SPR 6 4 SW6
41 630 000 7886 BOLT,HEX-SCT 4 M6X16
42 630 053 0636 PLATE 4 703G--01B-005
43 630 001 0220 WASHER 4 703G--01H-027
44 630 000 7763 BOLT,HEX-SCT 4 M5X16
45 411 141 0505 NUT HEX 5 4 M5
46 411 118 8503 NUT HEX 5 4 M5 F
47 411 140 6508 SCR PAN 5X20 4 M5X20 PAN
48 630 002 9697 SPRING,TENSION 4 703G--01H-003
53 630 031 0399 BEARING,RADIAL 86 703G--01H-001
MODEL TCM-3600J-2
0109-001
156
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
7-1
53 -1 630 089 8101 COVER 2 703G--01B-058
53 -2 630 089 8118 COVER 2 703G--01B-059
53 -3 630 089 7845 COVER 34 703G--01B-060
54 630 071 9659 BELT,ROUND 2 703G--01H-002
55 630 067 2930 BELT,ROUND 2 703G--01H-035
56 630 073 7363 GUIDE(MAE) 1 703G--01B-014
56 -1 630 073 7387 GUIDE(MAE) 1 703G--01B-038
57 630 073 7356 GUIDE(OKU) 1 703G--01B-013
57 -1 630 073 7370 GUIDE(OKU) 1 703G--01B-037
58 411 141 4008 WASHER V 4X9X0.8 20 FW4
59 411 141 2905 WASHER SPR 4 20 SW4
60 630 000 7664 BOLT,HEX-SCT 19 M4X20
60 -1 630 000 7633 BOLT,HEX-SCT 1 M4X12
66 630 056 2750 PLATE(R) 1 703G--01B-048
67 411 141 4008 WASHER V 4X9X0.8 4 FW4
68 411 141 2905 WASHER SPR 4 2 SW4
69 630 000 7602 BOLT,HEX-SCT 2 M4X6
71 630 056 2736 PLATE 2 703G--01B-049
72 630 000 0252 SENSOR,PHOTO 2 PHS114, PHS115 703G--01H-044
73 630 000 0269 SENSOR,PHOTO(CONNECTOR) 2 703G--01H-045
74 411 088 9005 WASHER F 3X6X0.5 8 FWS3 F
75 411 086 4408 WASHER SPR 3 4 SW3 F
76 411 040 7803 SCR PAN 3X12 4 M3X12 PAN
77 411 141 4008 WASHER V 4X9X0.8 4 FW4
78 411 141 2905 WASHER SPR 4 4 SW4
79 630 000 7619 BOLT,HEX-SCT 4 M4X8
91 630 001 0237 WASHER 2 703G--01H-025
92 411 141 3001 WASHER SPR 6 2 SW6
93 630 000 7886 BOLT,HEX-SCT 2 M6X16
96 630 035 6618 MECH PARTS (SET COLLARS) 1 703G--01H-046
