MODEL TCM-3600J-2 0109-001 192 㔚᳇ᓮㇱ ELECTRICAL SECTION Fig.11-1 ৻ᰴ㔚Ḯ Power Supply-Primary 1 2 A A 3 4 5 B 1 0 4 1 4 2 3 6 5 7 5 5 3 8 3 9 4 0 5 6 56-1 56-1 56-1 56-2 57 57 5 1 37 37 8 7 85 85 8 6 52 52 5 1 5 3 5 4 5-1 5…
MODEL TCM-3600J-2
0109-001
191
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
10-3
1 630 064 2087 SOLENOID VALVE 1 703F--01H-030
1 -2 630 081 3609 SOLENOID VALVE 2 SV32, SV106
1 -3 630 081 3593 SOLENOID VALVE 2 SV24A, SV24B, SV31A, SV31B
1 -4 630 052 1993 PIPE FITTINGS 1
1 -5 630 003 6541 AIR LINE EQPT 2
1 -6 630 040 4067 PIPE FITTINGS 2
1 -7 630 003 8293 PIPE FITTINGS 2
1 -8 630 065 7296 AIR LINE EQPT 2
2 411 141 4008 WASHER V 4X9X0.8 2 FW4
3 411 141 2905 WASHER SPR 4 2 SW4
4 630 000 7688 BOLT,HEX-SCT 2 M4X30
21 630 000 1709 SOLENOID VALVE 1 703L--01H-014
22 630 003 8163 PIPE FITTINGS 2
23 630 003 8064 PIPE FITTINGS 1
24 630 003 7821 PIPE FITTINGS 1
25 630 003 6688 AIR LINE EQPT 2 703L--01H-015
26 630 031 8579 PIPE FITTINGS 1 703L--01H-016
27 411 141 4008 WASHER V 4X9X0.8 2 FW4
28 411 141 2905 WASHER SPR 4 2 SW4
29 630 000 7619 BOLT,HEX-SCT 2 M4X8
MODEL TCM-3600J-2
0109-001
192
㔚᳇ᓮㇱ ELECTRICAL SECTION

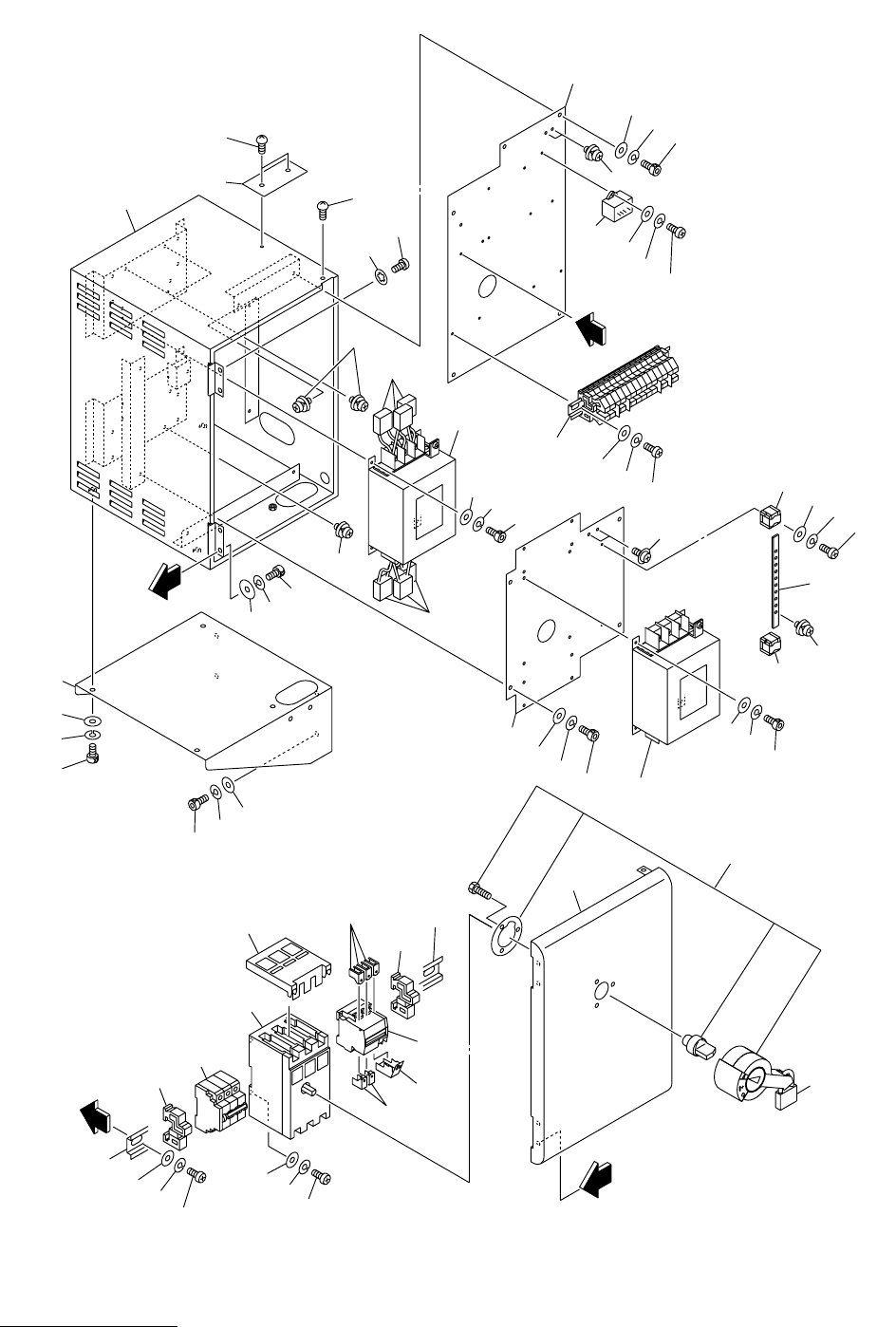

Fig.11-1 ৻ᰴ㔚Ḯ Power Supply-Primary
1
2
A
A
3
4
5
B
10
41
42
36
57
55
38
39
40
56
56-1
56-1
56-1
56-2
57
57
51
37
37
87
85
85
86
52
52
51
53
54
5-1
5-1
5-2
7
6
8
9
10
6-1
6-1
B
32
31
31
33
34
34
75
75
71
72
73
73
74
65
65
66
67
68
81
82
82
83
83
83
84
84
12
11
13
14
20
17
18
19
19
21
25
22
22
23
24
21
26
16
Fig.11-1
TCM-3600J-2
MODEL TCM-3600J-2
0109-001
193
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
11-1
1 630 094 6710 BOX 1 703BB-01V-001
2 630 059 8025 COVER 1 703BB-01V-002
3 630 001 0220 WASHER 3 BW5
4 411 141 6705 WASHER SPR 5 3 SW5
5 630 000 7756 BOLT,HEX-SCT 3 M5X12
5 -1 411 168 4104 WASHER IN TW 6 1
5 -2 411 113 2803 SCR PAN 5X8 1
6 630 086 3871 FILTER,NOISE 1 NF1 703BB-01D-014
6 -1 630 094 5737 CAPACITOR,SPECIAL 6 703BB-01D-016
7 411 141 4107 WASHER V 5X10X1 4 FW5
8 411 141 6705 WASHER SPR 5 4 SW5
9 630 000 7756 BOLT,HEX-SCT 4 M5X12
10 411 036 8609 SCR PAN+SW+W 5X12 4
11 630 094 2996 PANEL 1 703BB-01V-003
12 411 141 4107 WASHER V 5X10X1 4 FW5
13 411 141 6705 WASHER SPR 5 4 SW5
14 630 000 7756 BOLT,HEX-SCT 4 M5X12
16 630 086 3871 FILTER,NOISE 1 NF2 703BB-01D-014
17 411 141 4107 WASHER V 5X10X1 4 FW5
18 411 141 6705 WASHER SPR 5 4 SW5
19 630 000 7756 BOLT,HEX-SCT 4 M5X12
20 411 036 8609 SCR PAN+SW+W 5X12 2
21 630 051 5763 WIRE PARTS 2 703FB-01D-101
22 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
23 411 008 1706 WASHER SPR 4 2 SW4 F
24 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
26 411 036 8609 SCR PAN+SW+W 5X12 10
31 630 094 2989 PANEL 1 703BB-01V-004
32 411 141 4107 WASHER V 5X10X1 5 FW5
33 411 141 6705 WASHER SPR 5 5 SW5
34 630 000 7756 BOLT,HEX-SCT 5 M5X12
36 630 049 1104 BREAKER 1 CB200 703BB-01D-002
37 630 049 1241 COVER 1 703BB-01D-003
38 411 119 2104 WASHER V 4X9X0.8 3 FW4 F
39 411 008 1706 WASHER SPR 4 3 SW4 F
40 630 000 9286 MACHINE SCREW 3 M4X50 PAN
41 630 049 1234 HANDLE 1 703BB-01D-004
42 630 054 9676 MECH PARTS 1 703S--01D-009
52 411 119 2104 WASHER V 4X9X0.8 4 FW4 F
53 411 008 1706 WASHER SPR 4 4 SW4 F
54 411 043 5004 SCR PAN 4X8 4 M4X8 PAN
55 630 088 9536 CIRCUIT PROTECTOR 1 CB204 703BB-01D-005
56 630 083 5359 CIRCUIT PROTECTOR 1 CB219 703BB-01D-010
56 -1 630 071 3343 COVER 5 703BB-01D-017
56 -2 630 071 3350 COVER 1 703BB-01D-018
57 630 049 3672 BRACKET,WIRING 2
65 630 094 3290 TERMINAL 1 703BB-01D-001
66 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
67 411 008 1706 WASHER SPR 4 2 SW4 F
68 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
