MODEL TCM-3600J-2
0109-001
216
㔚᳇೙ᓮㇱ ELECTRICAL SECTION

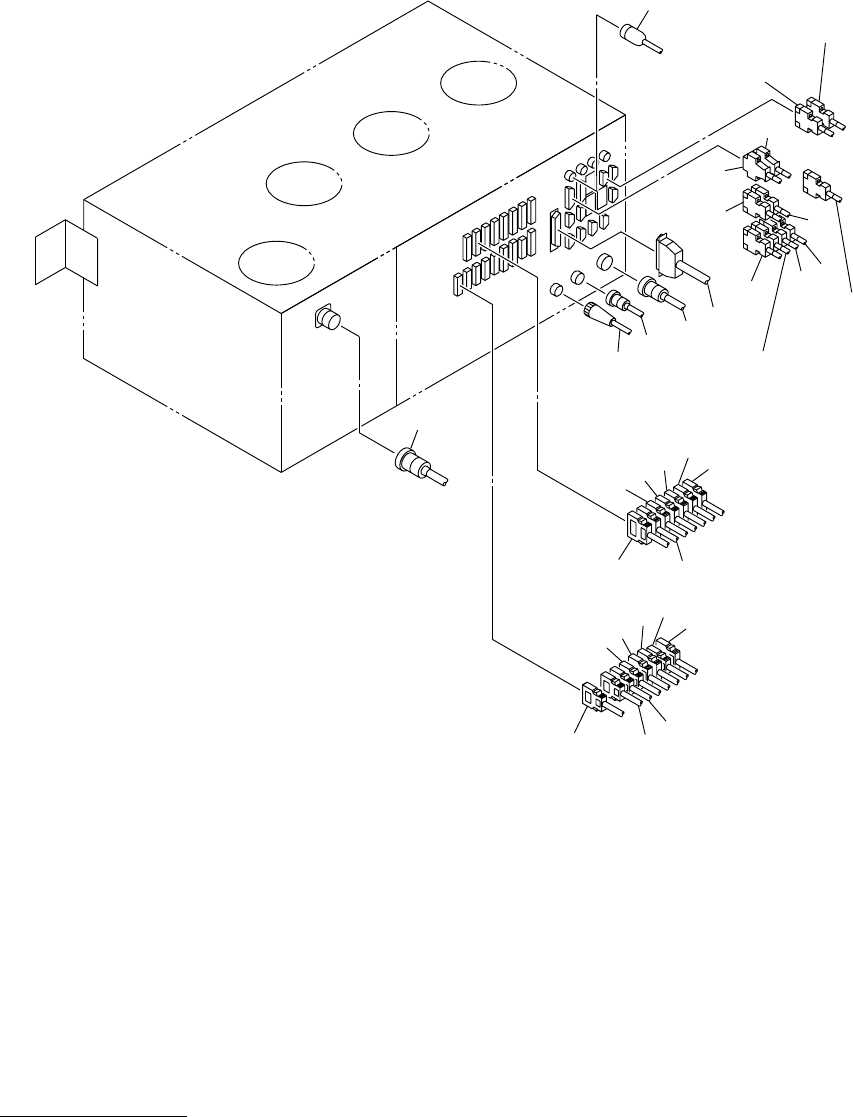

Fig.11-8 ೙ᓮࡏ࠶ࠢࠬ㈩✢ Control Box Wiring
71
19
19
18
17
17
16
16
15
26
25
24
83
83
22
22
21
21
20
28
28
30
30
27
85
85
74
73
73
55
57
59
58
60
54
54
See Fig.11-12
Key No.89
See Fig.11-12
Key No.88
Key No.88
See Fig.11-14
Key No.26
66
66
65
62
70
MODEL TCM-3600J-2
0109-001
217
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
11-8
15 630 049 5034 CORD 1 CN15-CN100 703FB-01D-045
16 630 084 6379 CORD 1 CN16-CN101 703FB-01D-046
17 630 064 1523 CORD 1 CN17-CN102 703FB-01D-047
18 630 084 6379 CORD 1 CN18-CN103 703FB-01D-046
19 630 064 1516 CORD 1 CN19-CN104 703FB-01D-049
20 630 049 5089 CORD 1 CN20-CN105 703FB-01D-050
21 630 049 5096 CORD 1 CN21-CN106 703FB-01D-051
22 630 049 5102 CORD 1 CN22-CN107, 125 703FB-01D-052
24 630 091 4191 CORD 1 CN24-CN135, 136 703FB-01D-053
25 630 091 4184 CORD 1 CN25-CN133, 134 703FB-01D-054
26 630 095 3411 CORD 1 CN26-CN130 703FB-01D-055
27 630 094 7700 CORD 1 CN27-CN131, 132 703FB-01D-056
28 630 056 6956 CORD 1 CN28- 703FB-01D-057
30 630 049 5171 CORD 1 CN30- 703FB-01D-140
54 630 094 7717 CORD 1 CN54-CN150 703FB-01D-064
55 630 084 6256 CORD 1 CN55-CN149 703FB-01D-063
57 630 049 7595 CORD 1 CN57- 703FB-01D-062
58 630 094 7465 CORD 1 CN58-CN117 703FB-01D-066
59 630 084 6249 CORD 1 CN59-CN118 703FB-01D-065
65 630 065 8255 CORD 1 CN65-CN205 703FB-01D-150
66 630 064 1479 CORD 1 CN66-CN148 703FB-01D-060
71 630 049 3269 CONNECTOR 1 CN71- 703FB-01D-033
73 630 054 8709 CONNECTOR 1 CN73- 703FB-01D-102
74 630 049 3238 CONNECTOR 1 CN74- 703FB-01D-025
83 630 059 5864 CORD 1 CN83-CN183 703FB-01D-126
85 630 004 6267 CONNECTOR 1 CN85- 703FB-01D-127
MODEL TCM-3600J-2
0109-001
218
㔚᳇೙ᓮㇱ ELECTRICAL SECTION

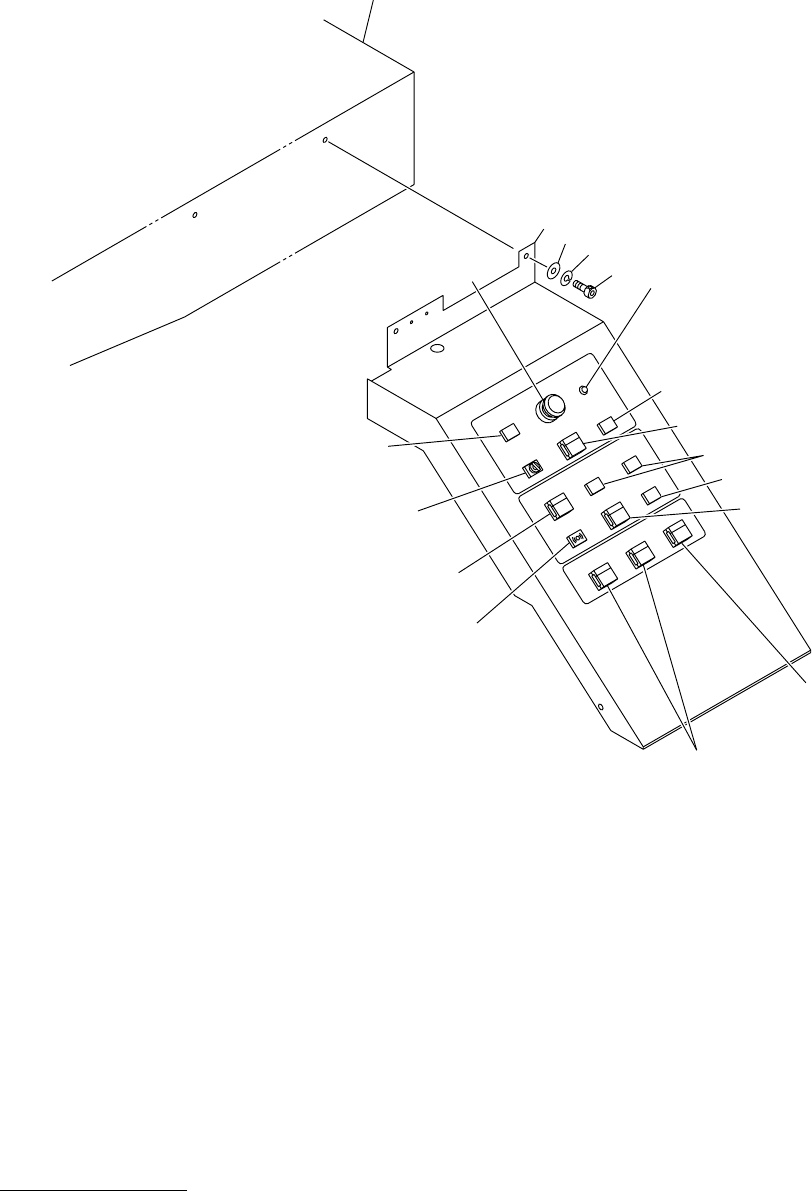

Fig.11-10 ೨㕙ᠲ૞ࡄࡀ࡞ Front Operation Panel
See Fig.1-1
See Fig.1-1
Key No.13
Key No.13
1
41
42
43
28
11
11
12
12
13
14
14
15
15
27
26
18
18
. .
24 25
25
.
36 37
.
16 17
17
.
19 20
.
21 22
22
.
23
