MODEL TCM-3600J-2 0109-001 221 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 11 - 11 1 630 094 6161 BOX 1 703DD-01V-001 2 630 051 6173 HANDLE 1 703DD-01D-018 3 41 1 141 4503 WASHER V 8X17X1.6 2 FW 8 4 41 1 141 3100 W…
MODEL TCM-3600J-2
0109-001
220
㔚᳇ᓮㇱ ELECTRICAL SECTION

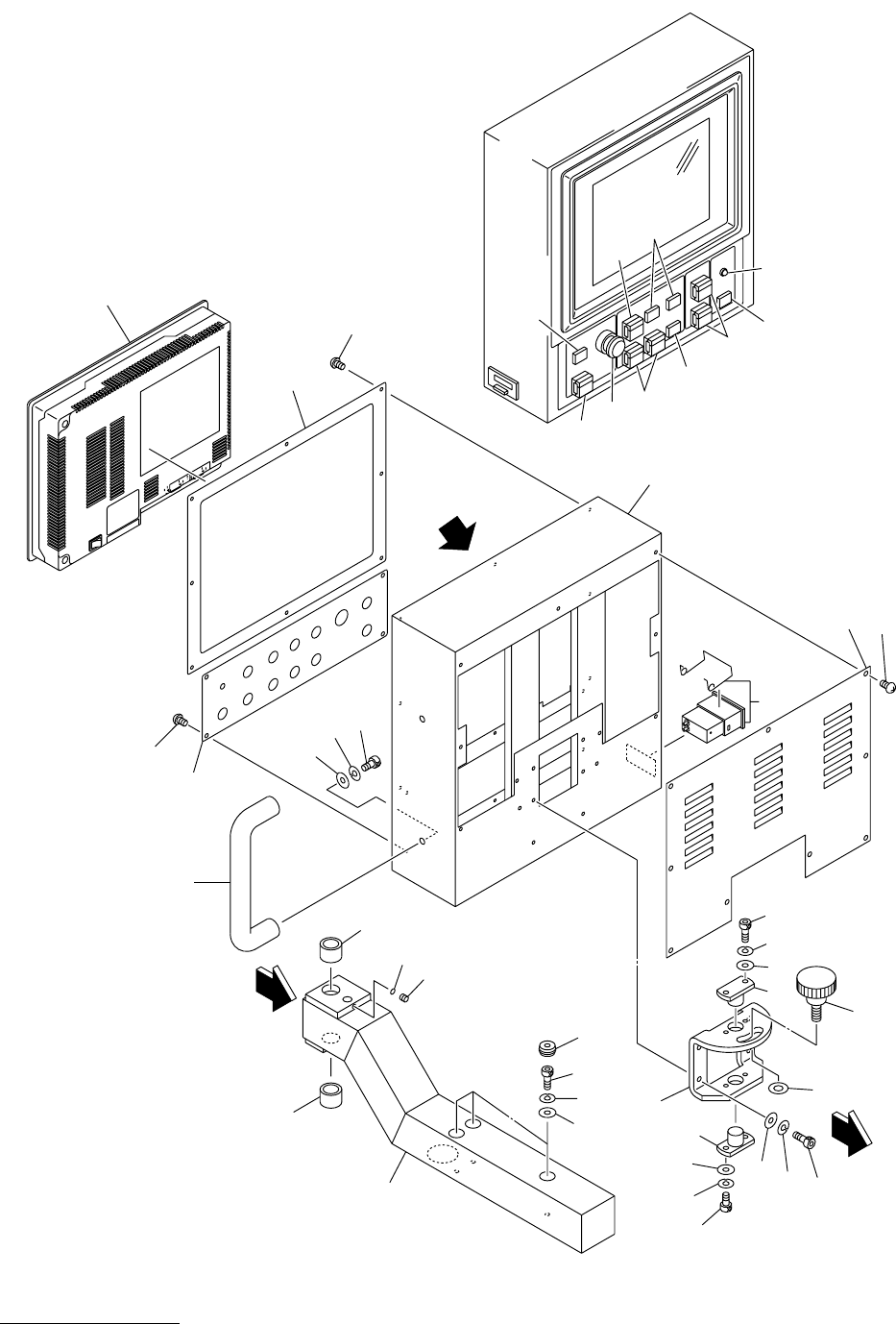

Fig.11-11 ᓟ㕙ᠲࡄࡀ࡞ Rear Operation Panel
B
Fig.11-11
TCM-3600J-2
31
32
32
10
6
8
7
1
2
29
3
4
5
30
A
43
44
45
45
46
46
47
47
49
49
48
48
52
53
54
47
47
46
45
45
44
44
42
41
41
50
51
51
55
55
56
56
57
58
42
B
DETAIL"A"
11
12
13
.
.
24
25
.
21
22
.
16
16
17
17
.
18
18
23
19
20
.
27
27
28
28
14
MODEL TCM-3600J-2
0109-001
221
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
11-11
1 630 094 6161 BOX 1 703DD-01V-001
2 630 051 6173 HANDLE 1 703DD-01D-018
3 411 141 4503 WASHER V 8X17X1.6 2 FW8
4 411 141 3100 WASHER SPR 8 2 SW8
5 630 000 8005 BOLT,HEX-SCT 2 M8X16
6 630 094 4877 UNIT,DISPLAY 1 #GM-1000RJ C 703DD-01D-014
7 630 094 2972 PANEL 1 703DD-01V-008
8 411 140 8304 SCR BIN 4X10 8 M4X10 BIN
10 630 058 5728 PANEL 1 703DD-01V-002
11 630 033 4609 SWITCH,BUTTON 1 PB2 703DD-01D-001
12 630 033 4586 DISPLAY ELEMENT 1 LED8 703DD-01D-002
13 630 033 4593 ACCESSORY,SW 1 703DD-01D-003
14 630 066 7042 SWITCH,BUTTON 1 PB4 703DD-01D-004
16 630 000 2713 SWITCH,BUTTON 1 PB14(LED9) 703DD-01D-006
17 630 000 0382 ACCESSORY,SW 1 703DD-01D-009
18 630 000 2515 SWITCH,BUTTON 2 PB18, PB19 703DD-01D-005
19 630 000 2713 SWITCH,BUTTON 2 PB15(LED10), PB22(LED11)
703DD-01D-006
20 630 000 0382 ACCESSORY,SW 2 703DD-01D-009
21 630 000 2508 SWITCH,BUTTON 2 PB16, PB17 703DD-01D-012
22 630 000 0382 ACCESSORY,SW 2 703DD-01D-009
23 630 007 6066 SWITCH,BUTTON 1 PB20 703DD-01D-007
24 630 007 6066 SWITCH,BUTTON 1 PB21 703DD-01D-007
25 630 000 0382 ACCESSORY,SW 1 703DD-01D-009
27 630 000 2744 SWITCH,BUTTON 1 PB23(LED12) 703DD-01D-008
28 407 035 4704 LED SLP-721F 1 LED13 703DD-01D-011
29 411 140 8304 SCR BIN 4X10 5 M4X10 BIN
30 630 000 5059 COUNTER 1 MCT 703DD-01D-013
31 630 085 7566 COVER 1 703DD-01V-006
32 411 113 9109 SCR TRS 5X10 9 M5X10 TRS
41 630 066 0968 SUPPORT 1 703DD-01V-004
42 630 051 6180 BUSH,BEARING 2 703DD-01D-015
43 630 052 3041 BRACKET 1 703DD-01V-003
44 630 051 5923 PIN,LOCATE 2 703DD-01V-005
45 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
46 411 141 3001 WASHER SPR 6 4 SW6
47 630 000 7886 BOLT,HEX-SCT 4 M6X16
48 630 051 6166 MECH PARTS(DRYMET WASHER) 1 703DD-01D-016
49 630 051 6159 MECH PARTS(7LOBE KNOB) 1 703DD-01D-017
50 630 041 6770 COLLAR 1 703DD-01V-007
51 630 000 8944 SET SCREW 1 M5X6 SET
52 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
53 411 141 3001 WASHER SPR 6 4 SW6
54 630 000 7886 BOLT,HEX-SCT 4 M6X16
55 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
56 411 141 3001 WASHER SPR 6 4 SW6
57 630 000 7893 BOLT,HEX-SCT 4 M6X20
58 630 066 1033 MECH PARTS (GROMMETS) 3 703DD-01D-019
MODEL TCM-3600J-2
0109-001
222
㔚᳇ᓮㇱ ELECTRICAL SECTION
Fig.11-12 ᯏ᪾ᑫࠅ 1 Miscellaneous Parts-1
D
C
G
H
B
A
E
H
A
B
C
D
G
4
3
2
10-1
10-5
10-5
10-1
10-6
10-2
10-3
10-4
19-4
19-3
19-2
56
66
66
61
65
62
62
63-1
62-1
61-1
58
58
59
57
19-6
19-5
19-5
19-1
19-1
68
68
1
15-3
15-2
15-2
15-1
15
11-3
11-2
11-2
14
14
13
13
12
12
11-1
69-3
69-3
69-2
69-2
69-1
69-1
69
69
50
49
48
47
41
50
49
49
48
48
46
45
45
51
44
44
43
55
55
52
52
54
54
53
53
42
42
1
2
4
3
72
71
73
73
95
See Fig.11-14
See Fig.11-14
Key No.7
96
97
91
91
87
92
93
93
92
92
92
89
88
88
10-2
10-1
10-5
10-5
10-1
10-6
10-6
10-3
10-3
10-4
10-4
67
64
63
104
103
102
101
14
13
12
12
14
14
13
13
12
6-1
6
6-2
6-3
5-1
5
5-2
5-3
E
30
30
31
32
24
25
25
23
22
22
21
26
32
32
138
133
136
136
138
131
132
134
.
135
135
137
.
31
30
29
28
27
131-3
131-2
131-1
131-1
F
30
31
32
24
24
25
23
22
21
26-1
26-1
32
32
138
133
136
138
131
132
134
.
135
135
137
.
31
30
30
29
29
28
27
131-3
131-3
131-2
131-1
F
Fig.11-12
TCM-3600J-2
