MODEL TCM-3600J-2 0109-001 257 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 12-4 1 630 035 2658 BRACKET 1 703FB-01D-077 2 630 056 2125 PILOT LAMP 1 703FB-01D-040 2 -1 630 000 1983 L A M P 3 RL , YL, GL 3 41 1 141 41…
MODEL TCM-3600J-2
0109-001
256
ࠞࡃㇱ COVER SECTION

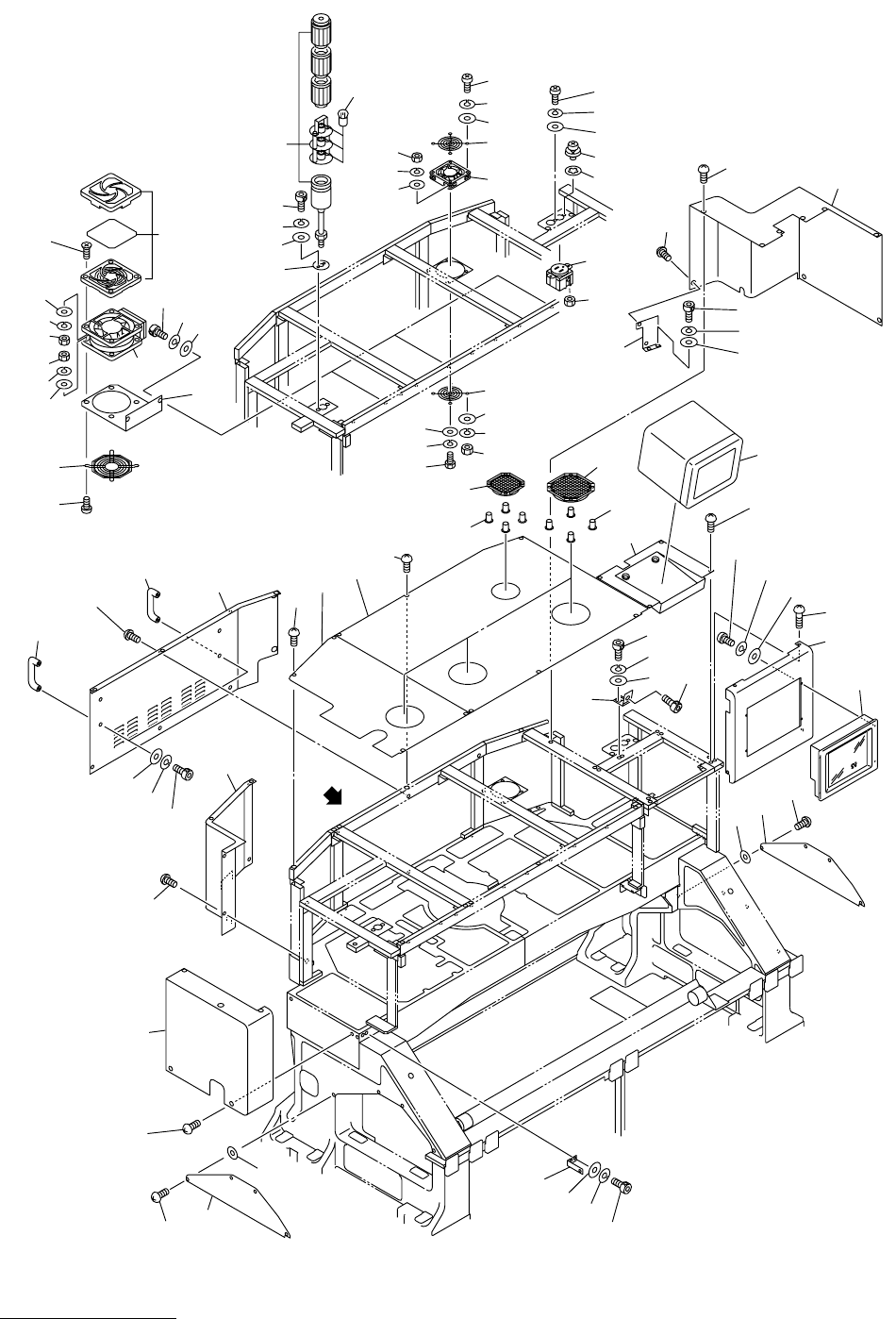

Fig.12-4 ㇱࠞࡃ Upper Cover
31
32
32
33
33
34
A
30
30
29
29
28
28
26
27
46
54
56
51
52
53
56
48
48
23
23
24
56
56
25
47
47
56
56
72
71
70
72
71
70
43
42
45
56
56
44
41
56
50
50
50
49
55-1
55-1
55
55
56
55-3
55-2
55-4
1
2
2-1
2-1
5
4
3
DETAIL"A"
83
98
82
81
81
85
85
87
86
89
88
94
92
93
91
91
97
96
96
21-1
21-2
19
18
22
22
20
21
101-1
101-1
101
102
102
102-1
17-1
16
15
17-2
17-2
16
16
15
15
14
15
15
11
11
14
14
16
16
17
17
15
15
16
16
17-1
17-1
Fig.12-4
TCM-3600J-2
MODEL TCM-3600J-2
0109-001
257
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
12-4
1 630 035 2658 BRACKET 1 703FB-01D-077
2 630 056 2125 PILOT LAMP 1 703FB-01D-040
2 -1 630 000 1983 LAMP 3 RL, YL, GL
3 411 141 4107 WASHER V 5X10X1 2 FW5
4 411 141 6705 WASHER SPR 5 2 SW5
5 630 000 7749 BOLT,HEX-SCT 2 M5X10
11 630 062 8258 MOTOR,DC 1 FAN7, MDS1225-24 703FB-01D-069
14 630 049 1074 ACCESSORY,MOT-M 2 703FB-01D-300
15 411 119 2104 WASHER V 4X9X0.8 8 FW4 F
16 411 008 1706 WASHER SPR 4 8 SW4 F
17 411 161 9007 SCR PAN 4X35 2 M4X35 PAN
17 -1 411 054 8506 NUT HEX 4 4 M4 F
17 -2 411 140 4702 BOLT HEX 4X10 2 M4X10 HEX
18 630 000 4243 SOCKET 1 703DB-01D-006
19 411 119 1909 WASHER V 3X7X0.5 1 FW3 F
20 411 086 4408 WASHER SPR 3 1 SW3 F
21 411 040 7803 SCR PAN 3X12 1 M3X12 PAN
21 -1 411 086 9809 WASHER IN TW 3 1
21 -2 411 114 7005 SCR PAN+SW+W 3X8 1
22 411 054 6809 NUT HEX 3 2 M3 F
23 630 052 6165 COVER 1 703R--01B-025
24 411 113 9109 SCR TRS 5X10 4 M5X10 TRS
25 630 045 8060 UNIT,DISPLAY 1 10-VMB300 703DB-01D-001
26 630 052 7629 BRACKET 1 703R--01B-024
27 630 000 7497 BOLT,HEX-SCT 1 M3X4
28 411 141 4107 WASHER V 5X10X1 2 FW5
29 411 141 6705 WASHER SPR 5 2 SW5
30 630 000 7749 BOLT,HEX-SCT 2 M5X10
31 630 064 9635 BRACKET 1 703R--01B-071
32 411 141 4107 WASHER V 5X10X1 2 FW5
33 411 141 6705 WASHER SPR 5 2 SW5
34 630 000 7756 BOLT,HEX-SCT 2 M5X12
41 630 066 2948 BRACKET 1 703R--01B-030
42 411 141 4107 WASHER V 5X10X1 2 FW5
43 411 141 6705 WASHER SPR 5 2 SW5
44 630 000 7749 BOLT,HEX-SCT 2 M5X10
45 630 075 8665 COVER 1 703R--01B-035
46 630 064 8645 COVER 1 703R--01B-031
47 630 075 8092 COVER 1 703R--01B-032
48 630 075 8108 COVER 1 703R--01B-033
49 630 066 2955 COVER 1 703R--01B-037
50 630 003 5087 HANDLE 2 703R--01H-008
51 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
52 411 141 3001 WASHER SPR 6 4 SW6
53 630 000 7862 BOLT,HEX-SCT 4 M6X10
54 630 075 8696 COVER 1 703R--01B-038
55 630 085 4404 COVER 1 703R--01B-036
55 -1 630 086 8395 UNIT,DISPLAY 1 #UT3-E1AE-D-M 703DB-01D-002
55 -2 411 119 1909 WASHER V 3X7X0.5 4 FW3 F
55 -3 411 086 4408 WASHER SPR 3 4 SW3 F
MODEL TCM-3600J-2
0108-001
258
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
12-4
55 -4 411 113 0700 SCR PAN 3X16 4 M3X16 PAN
56 411 113 9109 SCR TRS 5X10 37 M5X10 TRS
70 630 029 1391 WASHER 8 703R--01H-016
71 630 064 8805 COVER 2 703R--01B-137
72 411 113 9109 SCR TRS 5X10 8 M5X10 TRS
81 630 075 8085 BRACKET 3 703R--01B-139
82 630 070 3061 MOTOR,AC 3 FAN8, FAN9, FAN10, MRS16-BUL
703FB-01D-800
83 630 074 6853 ACCESSORY,MOT-M (FILTER) 3 703FB-01D-802
85 630 068 4292 ACCESSORY,MOT-M 3 703FB-01D-801
86 411 140 7406 SCR FLT 5X20 12 M5X20 FLT
87 411 088 1702 WASHER V 5X10X1 12 FW5 F
88 411 008 2109 WASHER SPR 5 12 SW5 F
89 411 118 8503 NUT HEX 5 12 M5 F
91 411 140 6508 SCR PAN 5X20 12 M5X20 PAN
92 411 088 1702 WASHER V 5X10X1 12 FW5 F
93 411 008 2109 WASHER SPR 5 12 SW5 F
94 411 118 8503 NUT HEX 5 12 M5 F
96 411 141 4107 WASHER V 5X10X1 6 FW5
97 411 141 6705 WASHER SPR 5 6 SW5
98 630 000 7749 BOLT,HEX-SCT 6 M5X10
101 630 081 8376 COVER 3 703R--01B-142
101 -1 630 086 2317 MECH PARTS (MAGNET) 12 703R--01H-017
102 630 081 8383 COVER 1 703R--01B-143
102 -1 630 086 2317 MECH PARTS (MAGNET) 4 703R--01H-017
