P-198-001e - 第51页
MEMO
MODEL TCM-3600J-2
0109-001
48
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
3-10
33 630 001 1081 ROD END 1 BRF8L 703K--01H-023
33 630 052 7209 ROD END 1 #940299 PBRL8FN
34 411 141 0901 NUT HEX 8 1 M8
35 630 052 1528 ROD 1 703K--01B-018
36 630 048 7084 ROD (TF) 1 703K--01B-016
37 630 000 9743 NUT,HEX 2 M6-L
38 630 001 1067 ROD END 1 BRF6L 703K--01H-026
38 630 052 7186 ROD END 1 #940297 PBRL6FN
39 411 141 0703 NUT HEX 6 1 M6
40 630 048 7114 ROD 1 703K--01B-019
41 411 141 0703 NUT HEX 6 1 M6
42 630 056 1807 ROD(NF) 1 703K--01B-015
43 630 000 9743 NUT,HEX 1 M6-L
44 630 001 1067 ROD END 1 BRF6L 703K--01H-026
44 630 052 7186 ROD END 1 #940297 PBRL6FN
MEMO
MODEL TCM-3600J-2
0109-001
50

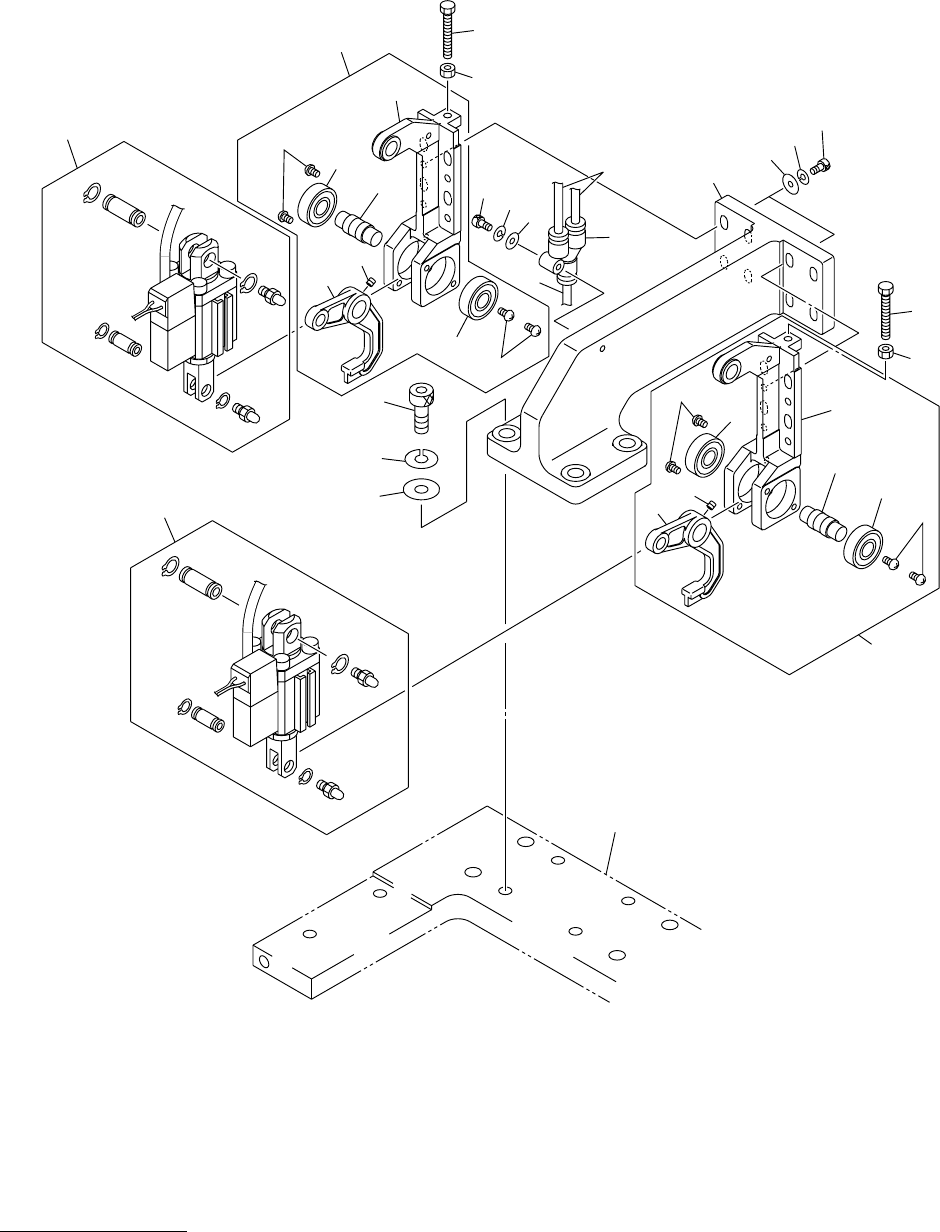

ࡋ࠶࠼㚟േㇱ HEAD DRIVING SECTION
Fig. 3-11 ࠞࡓゲ㧙 2 ࠬ࠻࠶ࡄ Cam Shaft-2 Stopper
11
11
12
12
15
16
13
14
17
20
21
22
15
16
11
12
15
16
15
16
13
14
17
19
18
19
19
18
18
4
3
2
56
56
55
55
54
54
51
51
See Fig.3-9
Key No.1
53
53
52
1
10
10
10
