MODEL TCM-3600J-2 0109-001 75 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 3-20 1 630 038 8176 BRACKET 1 703B--01B-022 2 41 1 141 4305 WASHER V 6X12.5X1.6 2 F W 6 3 41 1 141 3001 WASHER SPR 6 2 SW 6 4 630 000 7886 B…
MODEL TCM-3600J-2
0109-001
74

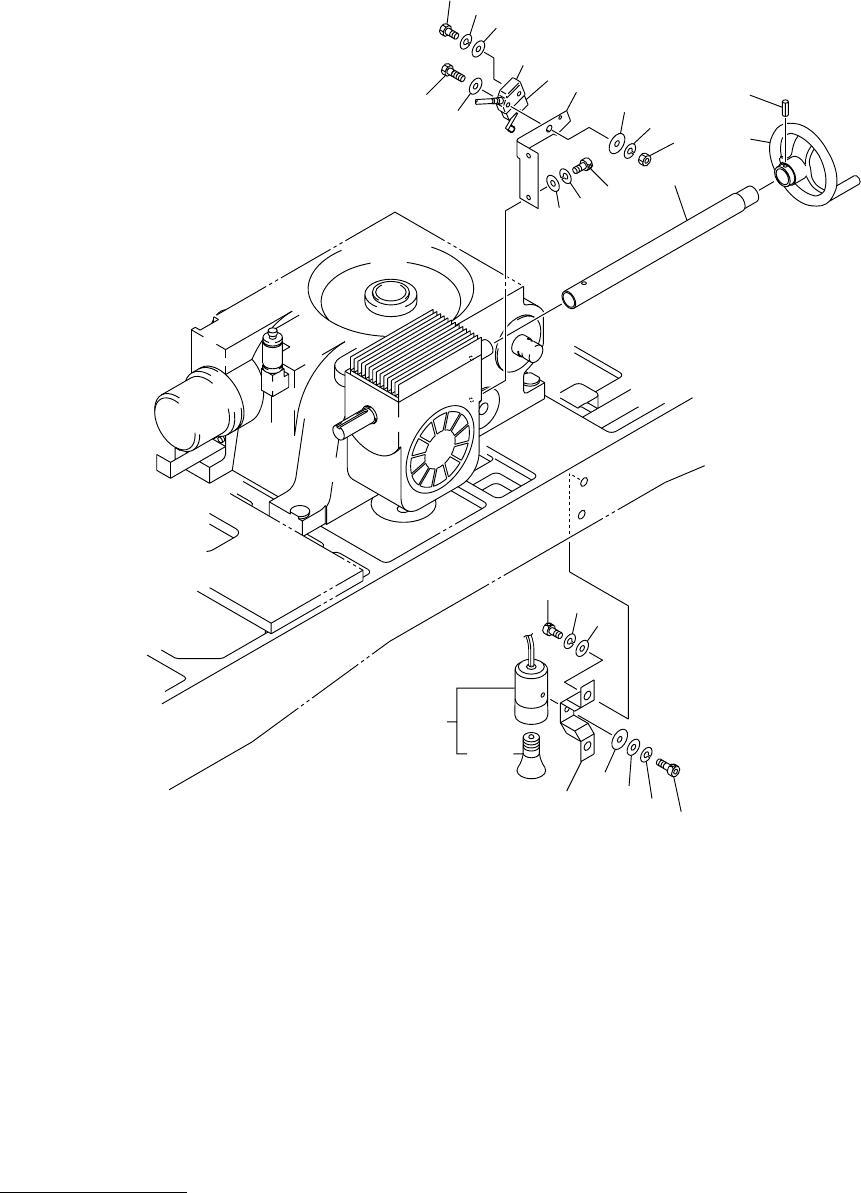

ࡋ࠶࠼㚟േㇱ HEAD DRIVING SECTION
Fig. 3-20
ᚻ࿁ߒࡂࡦ࠼࡞ޔࠬࡐ࠶࠻ࠗ࠻
Hand Wheel, Spotlight
1
2
3
4
5
6
7
8
9
10
11
12
12
13
13
14
14
15
16
17
21
22
23
24
25
25
26
27
27
28
29
22-1
MODEL TCM-3600J-2
0109-001
75
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
3-20
1 630 038 8176 BRACKET 1 703B--01B-022
2 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
3 411 141 3001 WASHER SPR 6 2 SW6
4 630 000 7886 BOLT,HEX-SCT 2 M6X16
5 630 000 3345 SWITCH,MICRO 1 LS1 703B--01H-028
6 630 000 0375 ACCESSORY,SW 1 703B--01H-029
7 411 119 2104 WASHER V 4X9X0.8 1 FW4 F
8 411 008 1706 WASHER SPR 4 1 SW4 F
9 630 000 8609 BOLT,HEX 1 M4X30 HEX
10 411 119 2104 WASHER V 4X9X0.8 1 FW4 F
11 630 000 8616 BOLT,HEX 1 M4X35 HEX
12 630 001 0213 WASHER 1 BW4
13 411 008 1706 WASHER SPR 4 1 SW4 F
14 411 054 8506 NUT HEX 4 1 M4 F
15 630 048 6612 SHAFT 1 703B--01B-023
16 630 048 6629 HANDLE 1 703B--01B-024
17 630 001 0381 SPRING PIN 1
21 630 003 6527 MECH PARTS(RUBBER DAMPER) 1 703L--01H-063
22 630 000 5271 LIGHTING UNIT 1 703L--01H-062
22 -1 630 005 4286 LAMP 1 WL2
23 411 141 4107 WASHER V 5X10X1 1 FW5
24 411 141 4008 WASHER V 4X9X0.8 1 FW4
25 411 141 2905 WASHER SPR 4 1 SW4
26 630 000 7633 BOLT,HEX-SCT 1 M4X12
27 411 141 4107 WASHER V 5X10X1 2 FW5
28 411 141 6705 WASHER SPR 5 2 SW5
29 630 000 7756 BOLT,HEX-SCT 2 M5X12
MODEL TCM-3600J-2
0109-001
76
ਛ㑆ࡌࠬㇱ MIDDLE BASE SECTION
Fig. 4-1 ਛ㑆ࡌࠬ Middle Base
5
4
3
11
11
12
13
14
16
16
21
21
22
22
23
23
17
17
18
18
19
19
20
20
21
22
23
24
24
25
26
27
30
30
29
29
28
28
31
31
32
32
34
34
35
35
51
55
56
See Fig.3-13
See Fig.3-13
Key No.29
See Fig.1-1
Key No.11
18
18
19
19
20
20
12
13
14-1
36
36
37
37
38
38
5-1
4
3
57
57
2
33
33
1
52
53
53
54
Fig.4-1
TCM-3600J-2
TCM-3500Z-2
