MODEL TCM-3600J-2 0109-001 95 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 4-8 1 630 056 8042 BRACKET 2 703L--01B-037 2 630 056 8059 BRACKET 2 703L--01B-038 3 630 000 0290 SE NS O R , P R O X I M I T Y 2 PXS19, PXS2…
MODEL TCM-3600J-2
0109-001
94
ਛ㑆ࡌࠬㇱ MIDDLE BASE SECTION
Fig. 4-8 ࠞ࠶࠻ⵝ⌕ࡒࠬᬌㇱ Feeder Miss-setting Detector
1
10
See Fig.1-1
Key No.13
2
3
4
5
6
7
8
9
28
28
29
29
30
30
20
20
19
17
18
23
24
14
14
13
13
15
15
16
16
18
18
17
19
20
22
22
21
27
26
25
25
11
11
12
12
MODEL TCM-3600J-2
0109-001
95
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
4-8
1 630 056 8042 BRACKET 2 703L--01B-037
2 630 056 8059 BRACKET 2 703L--01B-038
3 630 000 0290 SENSOR,PROXIMITY 2 PXS19, PXS20 703L--01H-080
4 411 141 3902 WASHER V 3X7X0.5 4 FW3
5 411 141 2806 WASHER SPR 3 4 SW3
6 630 000 7527 BOLT,HEX-SCT 4 M3X10
7 411 140 9905 NUT HEX 3 4 M3
8 411 141 4107 WASHER V 5X10X1 4 FW5
9 411 141 6705 WASHER SPR 5 4 SW5
10 630 000 7749 BOLT,HEX-SCT 4 M5X10
11 630 057 4005 PLATE 2 703L--01B-036
12 630 073 3532 PLATE 2 703L--01B-040
13 411 141 3902 WASHER V 3X7X0.5 2 FW3
14 411 000 9304 RING E 2 2 703L--01H-081
15 411 141 3902 WASHER V 3X7X0.5 10 FW3
16 411 141 0109 NUT HEX 3 4 M3-3
17 630 044 4971 PLATE 4 703L--01B-039
18 630 000 7510 BOLT,HEX-SCT 4 M3X8
19 411 141 3902 WASHER V 3X7X0.5 4 FW3
20 411 141 0109 NUT HEX 3 8 M3-3
21 411 141 3902 WASHER V 3X7X0.5 4 FW3
22 630 000 7558 BOLT,HEX-SCT 4 M3X16
23 411 141 3902 WASHER V 3X7X0.5 4 FW3
24 411 140 9905 NUT HEX 3 8 M3
25 411 141 4107 WASHER V 5X10X1 4 FW5
26 411 141 6705 WASHER SPR 5 4 SW5
27 630 000 7749 BOLT,HEX-SCT 4 M5X10
28 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
29 411 141 3001 WASHER SPR 6 4 SW6
30 630 000 7879 BOLT,HEX-SCT 4 M6X12
MODEL TCM-3600J-2
0109-001
96
ਛ㑆ࡌࠬㇱ MIDDLE BASE SECTION

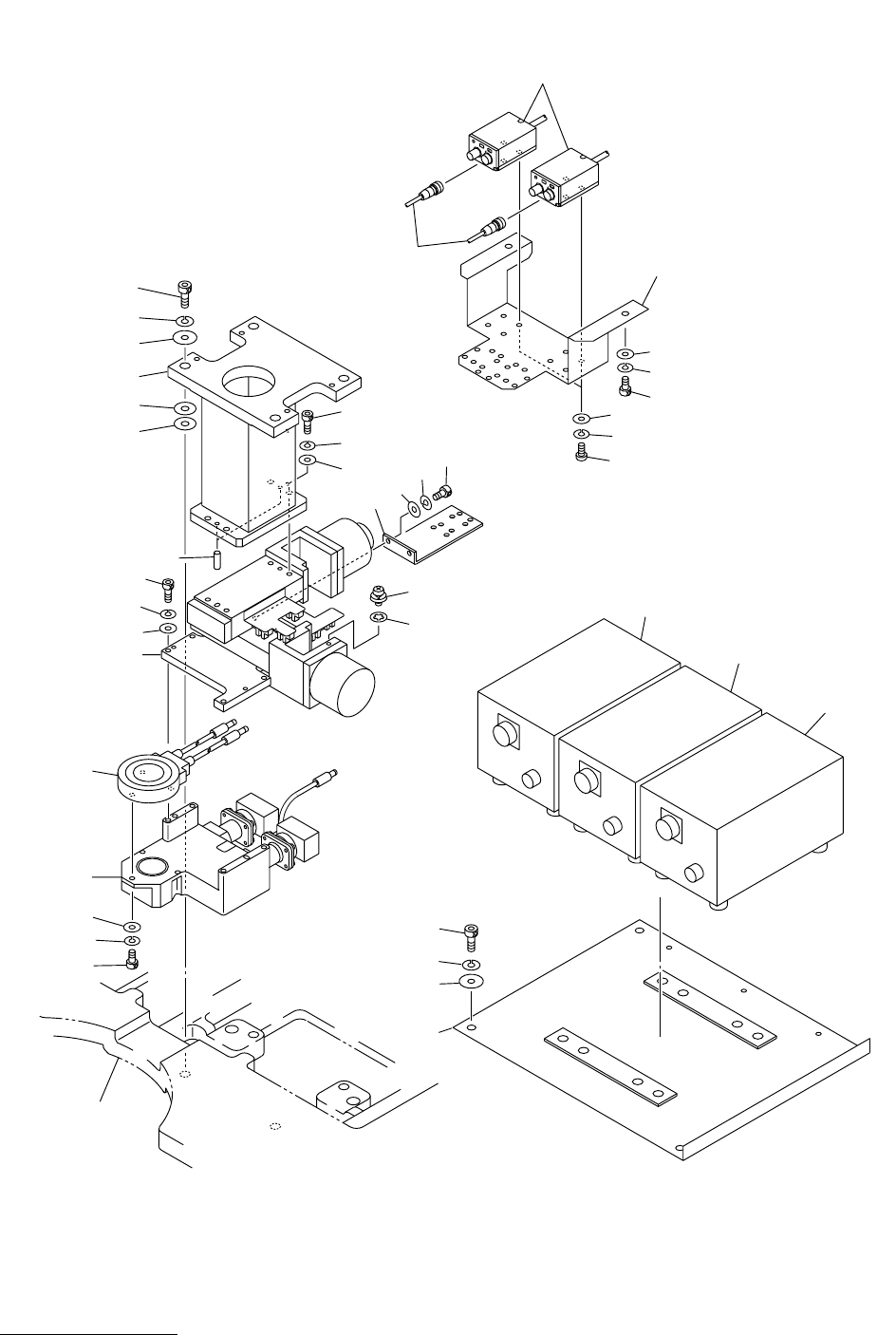

Fig. 4-9 ㇱຠ⼂ࠞࡔ Recognition Camera
2
5
4
3
1-2
1-1
2-1
16
26
26
25
25
24
24
17
42
41
18
19
19
20
23
22
21
12
11
11
13
14
15
32-1
32-1
32
28
28
29
29
30
30
27
27
32-1
32
See Fig.1-1
Key No.13
.
.
31-1
31-1
31
31
.
37
38
39
34
35
36
12
40
33
Fig.4-9
TCM-3600J-2
TCM-3000Z-2
