Tg0249-PM-MM
5. Weekly Maintenance
Table 1.5
5. Weekly Maintenance
0004-002 1-10
Fig. 1.11 Air Regulator
Beam A Side
Drain
Cleaning
Drain water according to the following procedure.
(1) Place a container under the drain outlet.
(2) Turn slowly the cap on the bottom of the outer case
of each air filter in the direction of Arrow A.
Note: Take the greatest care because dirty water will
splash out from the outlet if the cap is turned
too much.
Ca
p
A
Maintenance Spots Check
Name
Fig.
No.
Description Grease
Cleaning
Tools,
Nozzles, etc.
Air Regulator Drain 1.11 Cleaning  Container,
etc.
Component
Recognition
Section
Protective Glass of
the Component
Recognition Camera
1.12 Cleaning  Rag, Air
Blow for
Camera
Upper Surface of
Fiducial Mark
1.12 Cleaning  Rag
Component Discharge
Box
1.12 Abandonment  
PCB Positioning
Section
Upper Surface of
Backup Table
1.13 Cleaning  Vacuum
Cleaner
Component
Supply Section
(Feeder)
Component Pick-Up
Position of Tape
Feeder
1.14 Cleaning  
Tg0249-PM-MM
5. Weekly Maintenance
9910-001 1-11

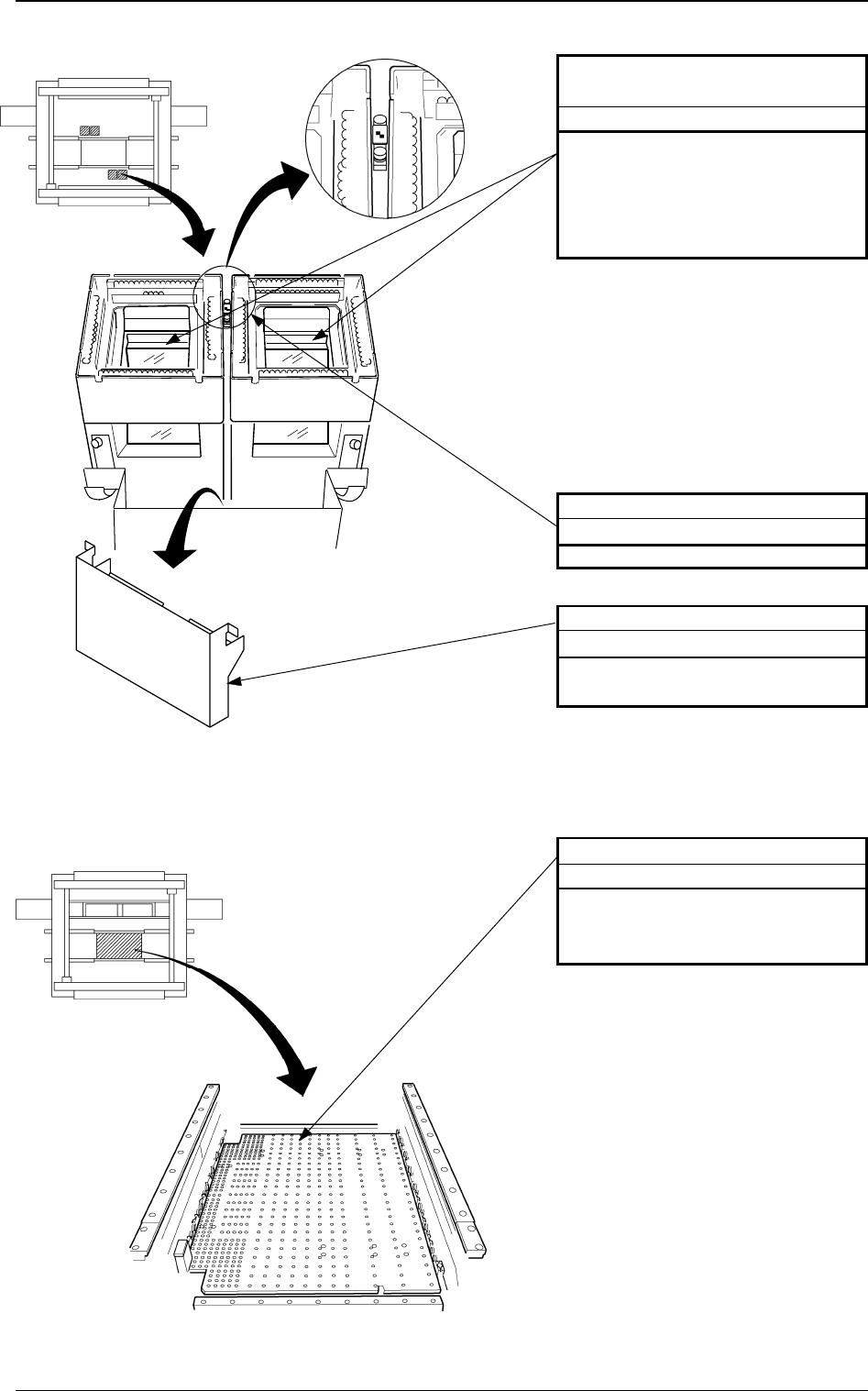

Fig. 1.13 PCB Positioning Section
Upper Surface of Fiducial Mark
Cleaning
Remove dirt and dust using a rag.
Component Discharge Box
Abandonment
Remove the components accumu-
lated in the box.
Protective Glass of the Compo-
nent Recognition Camera
Cleaning
Drop dirt and dust into the compo-
nent discharge box using the air blow
for the camera. If the protective glass
is dirty with grease, remove it using
a rag.
Fig. 1.12 Component Recognition Section
Beam A Side
Beam B Side
Beam A Side
Beam B Side
PCB Positioning Section
Cleaning
Clean dirt and dust on the upper sur-
face of the PCB backup table using a
vacuum cleaner.
Tg0249-PM-MM
5. Weekly Maintenance
0004-002 1-12
Component Pick-Up Position of
Tape Feeder
Cleaning
Remove adhering dirt, etc., with a
brush whenever necessary.

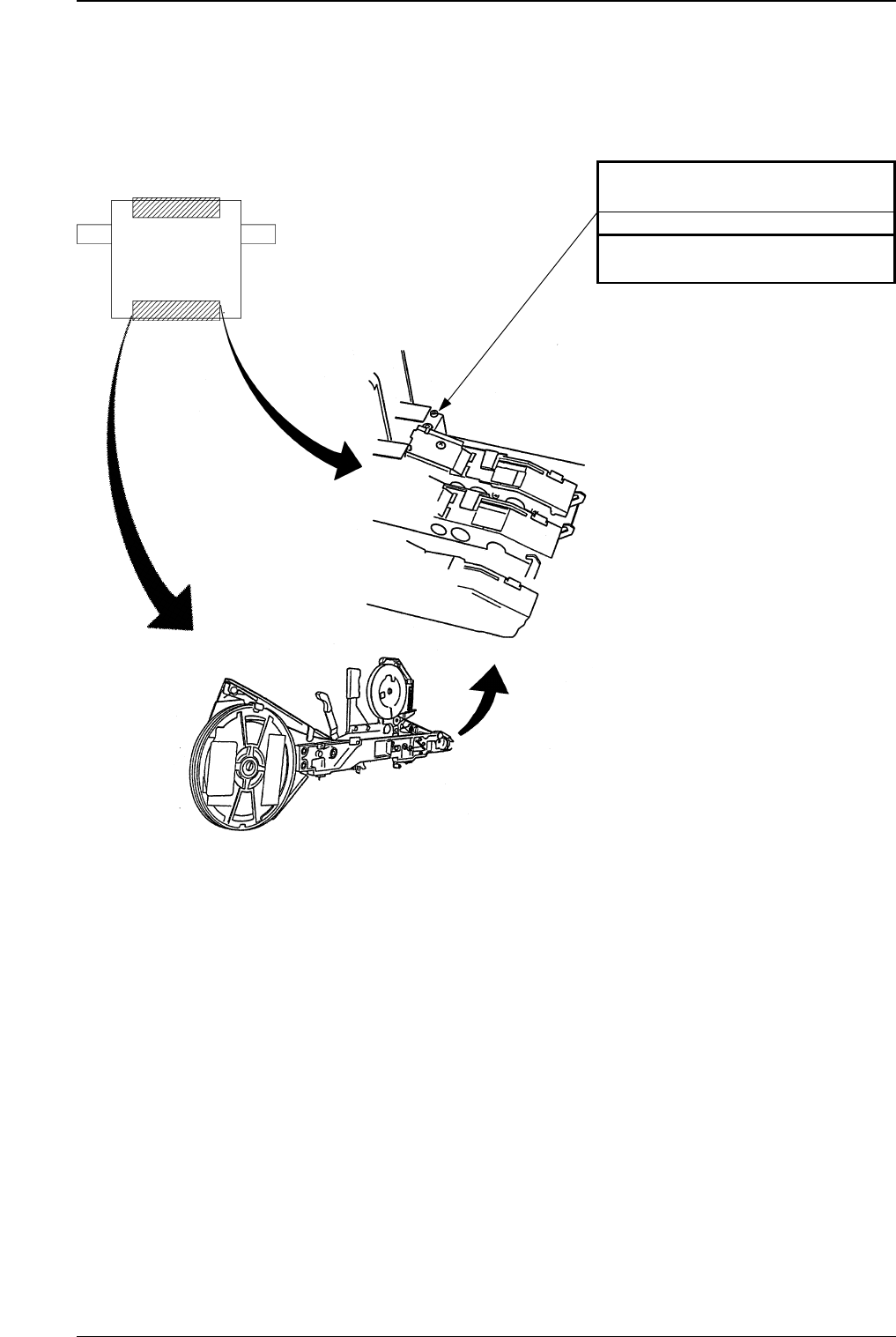

Fig. 1.14 Component Supply Section (Feeder)
Beam A Side
Beam B Side
