1-26 Fig. 1.29 Conveyor (Reference Point : FRONT) 9. Maintenance (Every 6 Months) 0004-002 Tg0249-PM-MM Linear Guide Cleaning and Lubrication (DE1) (1) W ipe off old grease with an oiled rag. Note: T ake care not to leav…
1-25

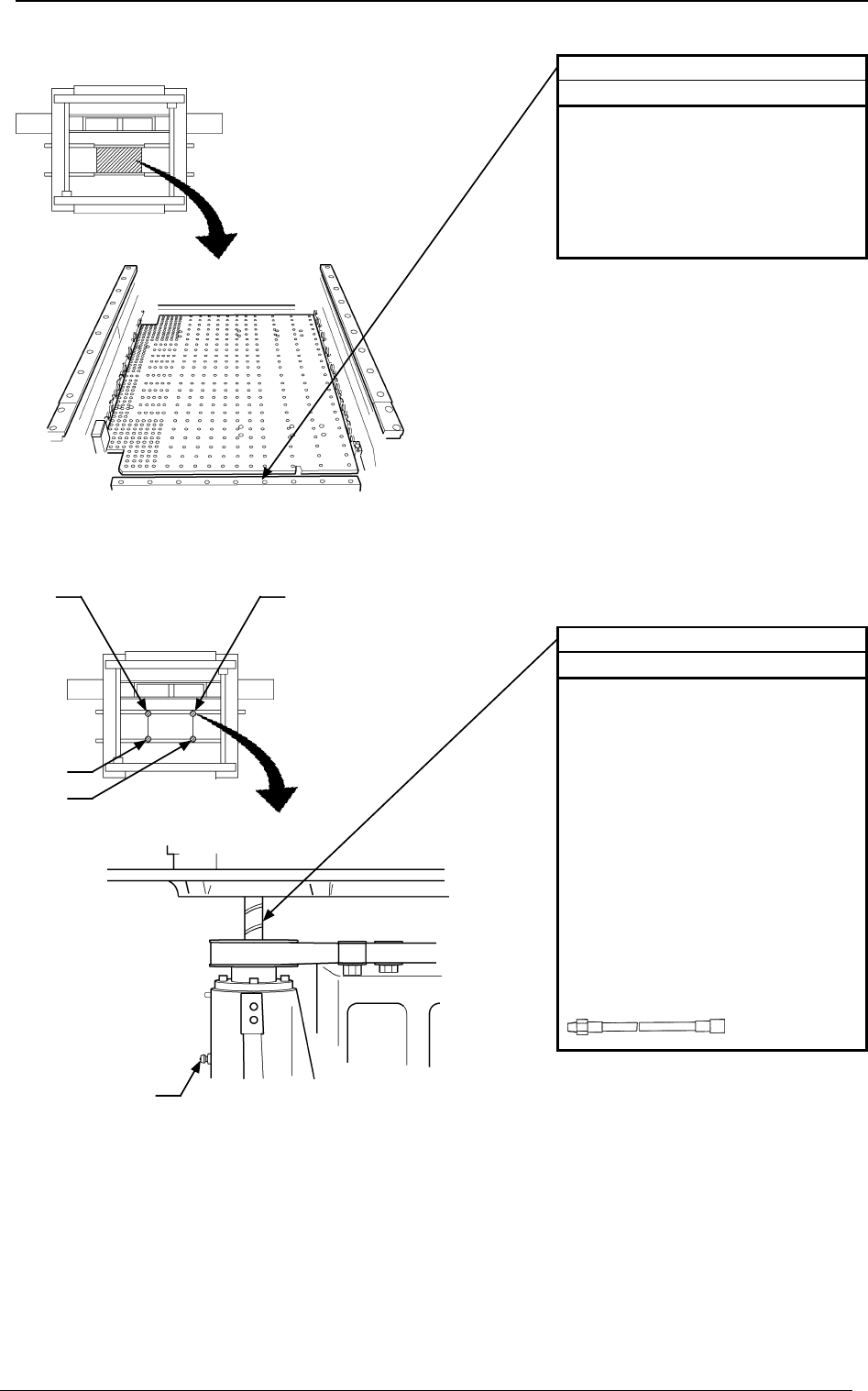

Fig. 1.28 PCB Positioning Section
9. Maintenance (Every 6 Months)
0004-002 Tg0249-PM-MM
Fig. 1.27 PCB Positioning Section
Linear Guide
Cleaning and Lubrication (DE1)
(1) Wipe off old grease with an oiled
rag.
Note: Take care not to leave
any waste thread.
(2) Apply new grease by hand or with
a brush.
Ball Spline
Cleaning and Lubrication (DE1)
(1) Wipe off old grease with an oiled
rag.
Note: Take care not to leave
any waste thread.
(2) Lubricate the 4 nipples with new
grease from a grease gun.
Notes: (a) For the lubrication
procedure, refer to
“10.1 Placement
Head and P.C.B. Po-
sitioning Section”.
(b) The attachment to
be used is SPK-3C.
SPK-3C
Beam A Side
Beam B Side
Beam A Side
Beam B Side
Nipple
Nipple
Nipple
Nipple
Nipple

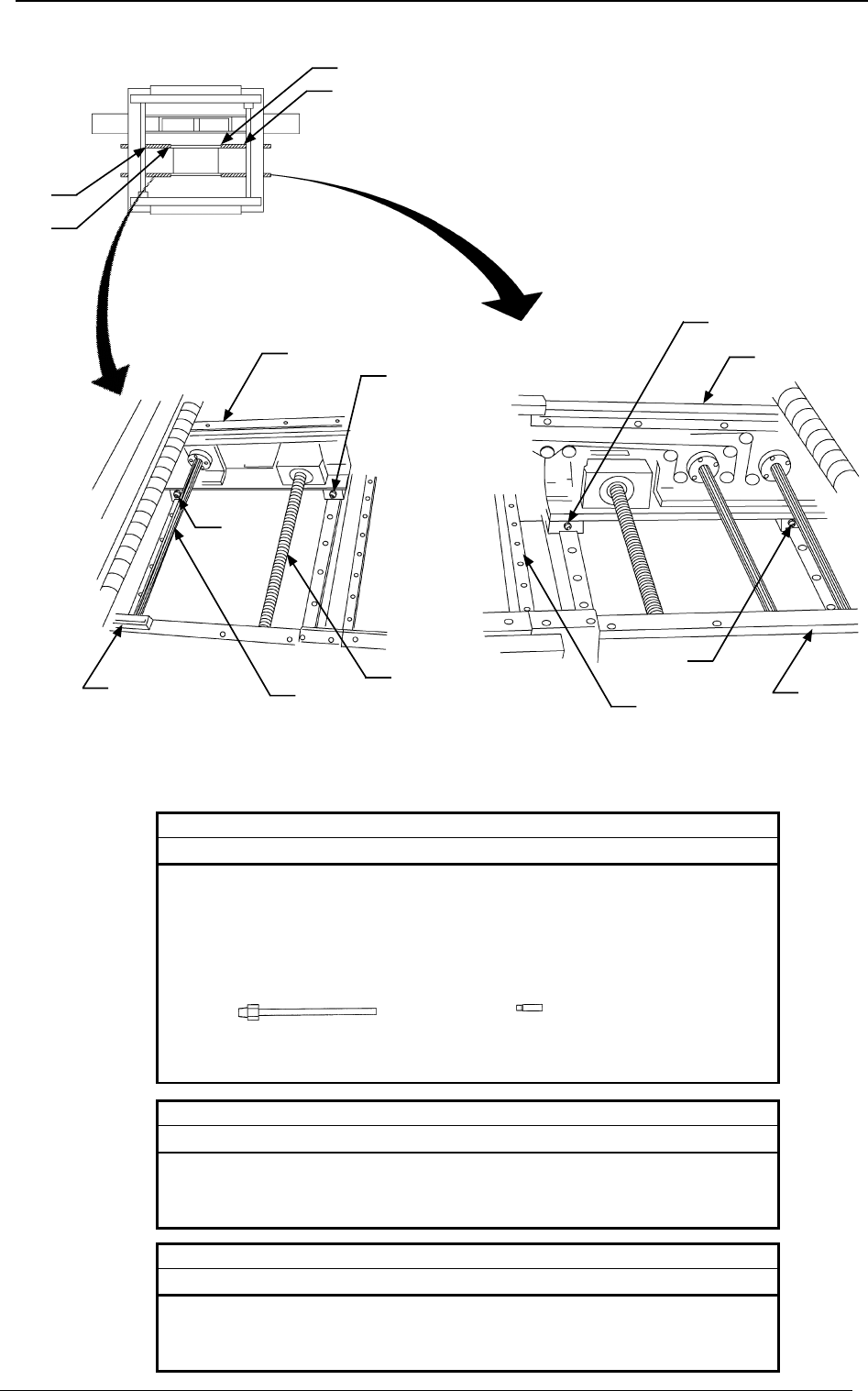

1-26
Fig. 1.29 Conveyor (Reference Point : FRONT)
9. Maintenance (Every 6 Months)
0004-002 Tg0249-PM-MM
Linear Guide
Cleaning and Lubrication (DE1)
(1) Wipe off old grease with an oiled rag.
Note: Take care not to leave any waste thread.
(2) Lubricate the 4 nipples with new grease from a grease gun.
Note: The attachments to be used are U type and N type.
U Type N Type
Ball Screws
Cleaning and Lubrication (DE1)
(1) Wipe off old grease with an oiled rag.
Note: Take care not to leave any waste thread.
(2) Apply new grease by hand or with a brush.
Splines
Cleaning and Lubrication (NM1)
(1) Wipe off old grease with an oiled rag.
Note: Take care not to leave any waste thread.
(2) Apply new grease by hand or with a brush.
Beam A Side
Beam B Side
Nipple
Nipple
Nipple
Nipple
Fixed Chute
Fixed Chute
L Conveyor
R Conveyor
Spline
Ball Screw
Movable Chute
Nipple
Nipple
Movable Chute
Nipple
Linear Guide
Nipple
1-27

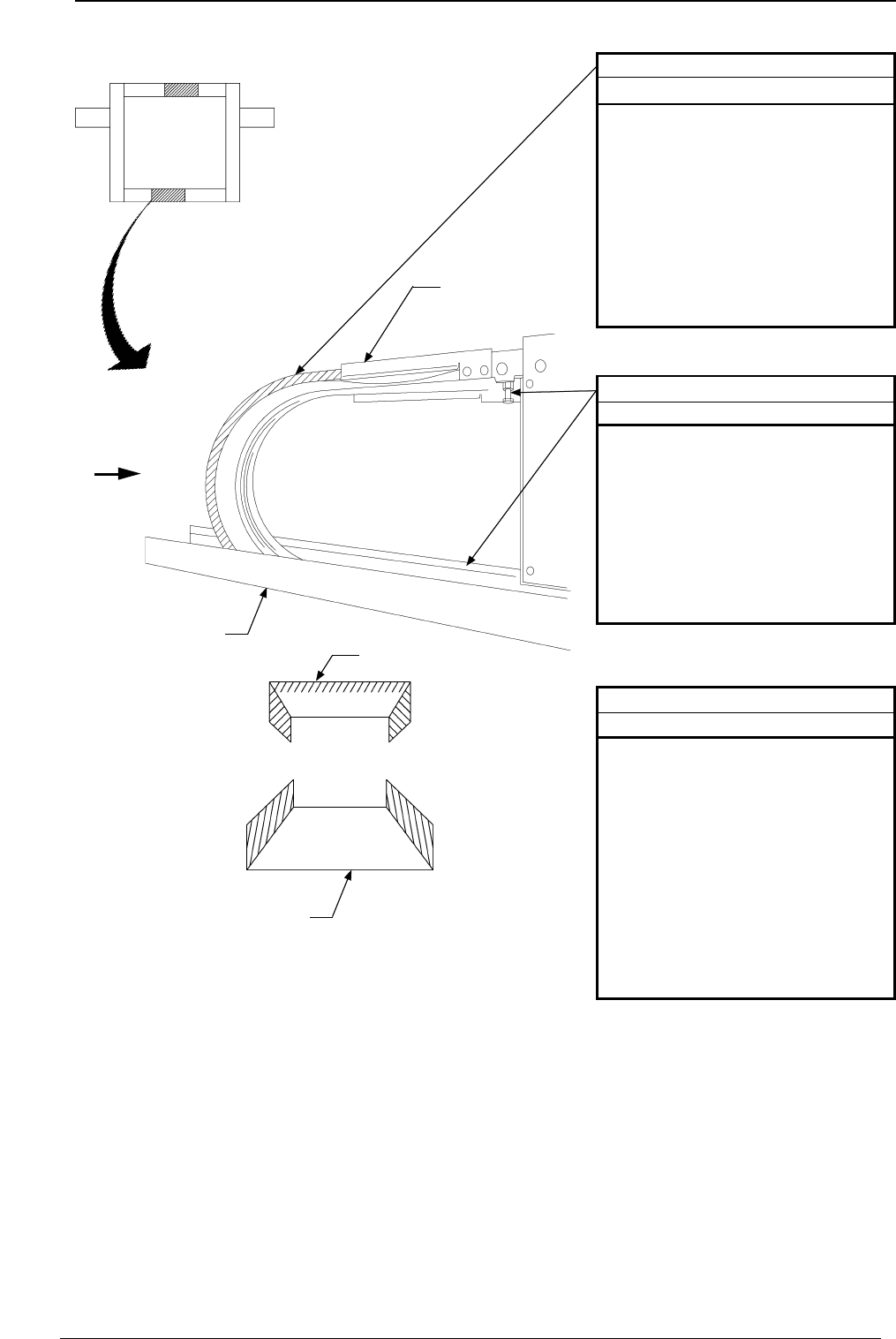

Fig. 1.30 X/Y Beam (Beams A and B) X-Axis
9. Maintenance (Every 6 Months)
0004-002 Tg0249-PM-MM
View A (Without Cable)
Side of the Cable
Cleaning and Lubrication (KS64)
(1) Wipe off old grease with an oiled
rag.
Note : Take care not to leave any
waste thread.
(2) Apply new grease by hand or with
a brush.
Ref. : Removing the side plate of the
machine makes the work easier.
A
Beam A Side
Beam B Side
Cable Fixing Position
Checking
Check for any abnormalities such as
cracks.
Ref. : Removing the side plate of the
machine makes the work easier.
Upper and Lower Cable Guides
Cleaning and Lubrication (KS64)
(1) Wipe off old grease with an oiled
rag.
Note : Take care not to leave any
waste thread.
(2) Apply new grease on the oblique
section in View A by hand or with
a brush.
Ref. : Removing the side plate of the
machine makes the work
easier.
Upper Cable Guide
Upper Cable Guide
Lower Cable Guide
Lower Cable Guide
