Tg0249-PM-MM 9910-001 2-5 2. Replacement Procedure of V acuum Filter Fig. 2.3 (3) Detach the vacuum filter from the cap. Note : Do not throw away the cap. (4) Attach a new vacuum filter to the cap. (5) Engage the vacuum …

Tg0249-PM-MM

2. Replacement Procedure of Vacuum Filter

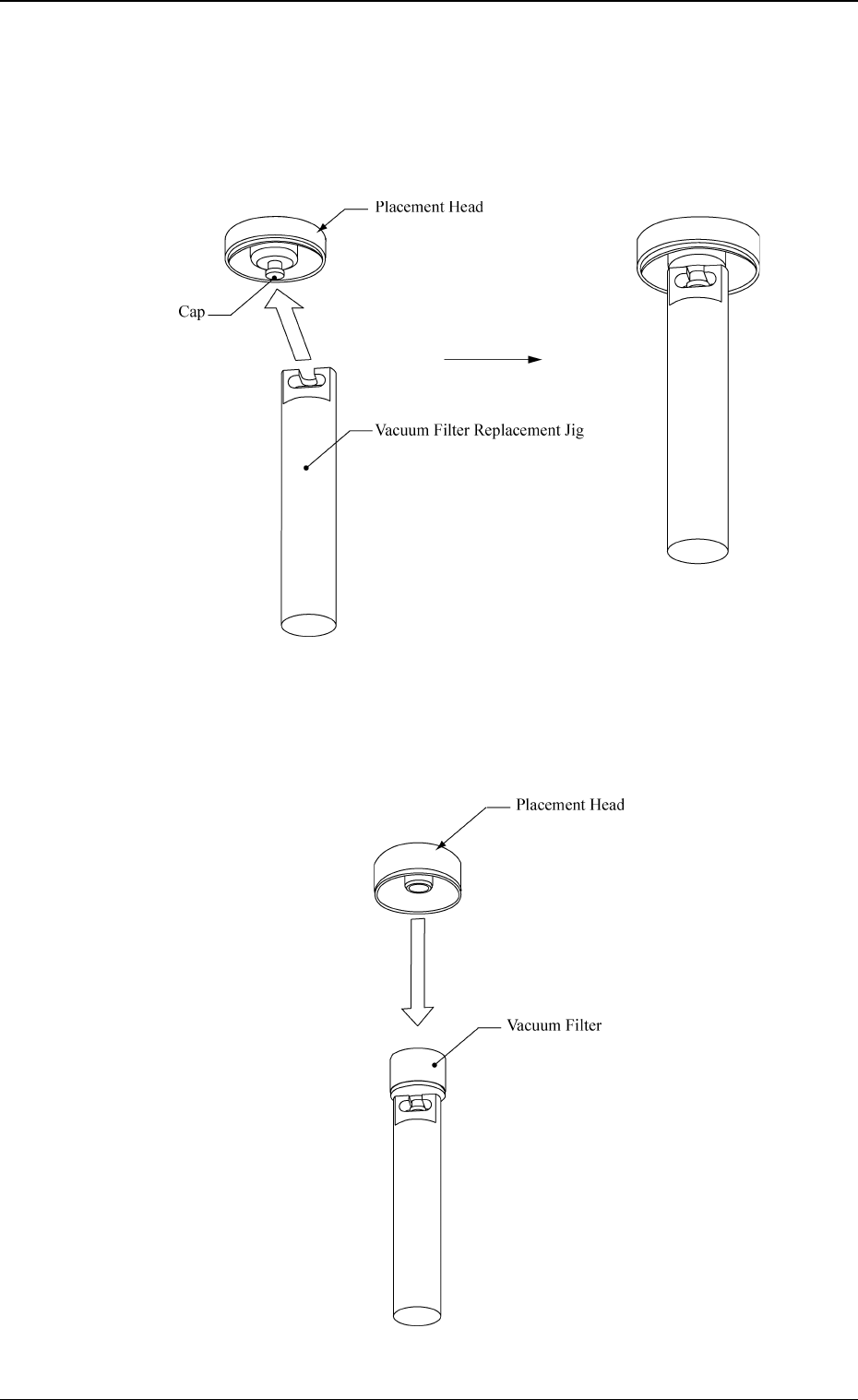

(1) Engage the vacuum filter replacement jig with the hook of the cap.

(2) Bring the vacuum filter replacement jig straight down and pull out the

cap from the placement head.

Note: The vacuum filter replacement jig should not come off from the

cap.

Fig. 2.1-2

2. Replacement Procedure of Vacuum Filter

9910-001 2-4

Fig. 2.1-1

Fig. 2.2

Tg0249-PM-MM

9910-001 2-5

2. Replacement Procedure of Vacuum Filter

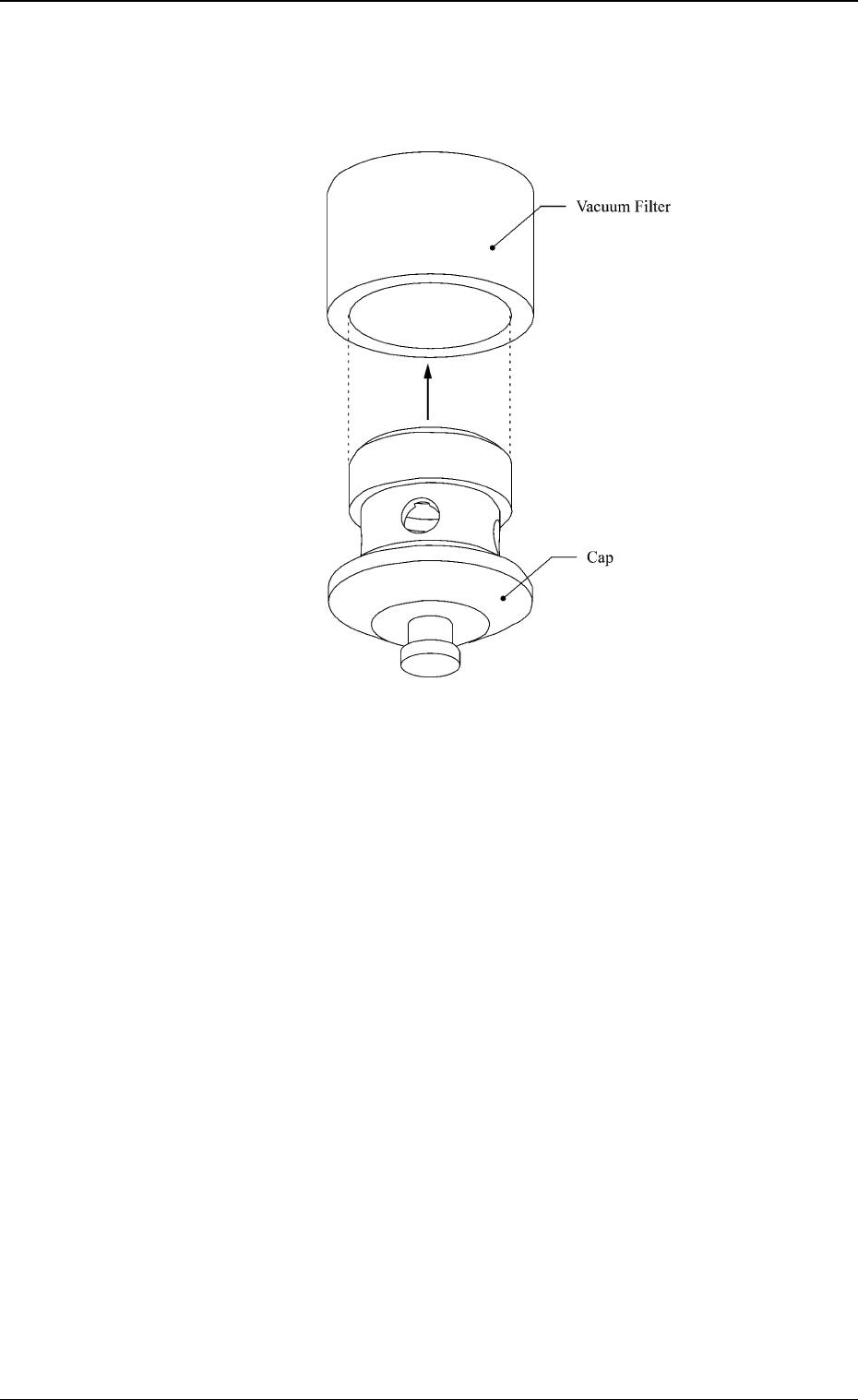

Fig. 2.3

(3) Detach the vacuum filter from the cap.

Note: Do not throw away the cap.

(4) Attach a new vacuum filter to the cap.

(5) Engage the vacuum filter replacement jig with the hook of the cap and

push the cap straight into the placement head in the reverse order of cap

detachment.

Note: Push the cap into the placement head as far as possible.

(6) Follow the reverse procedure of the jig engagement (engagement proce-

dure for vacuum filter replacement jig) to slide it out horizontally from

the hook of the cap.

Tg0249-PM-MM

0004-001 2-6
