Tg0249-PM-MM
PICK-UP
Shown are the total periods of time during which the pick-up position is
moved and the up and down movement is taken for component picks.
(Each time includes the period of time during which the heads wait for
each feeder to be replenished with components.)
WAIT FOR TRAY FEED (Option)
Shown are the total periods of time during which the machine waits for
the tray to be fed after Beam A has moved to the tray pick-up position
(matrix position).
COMPONENT RECOG
Shown are the total periods of time during which the machine moves the
component recognition position and the component recognition is pro-
cessed.
PLACEMENT
Shown are the total periods of time during which the machine moves the
component placement position and takes the up/down movement for
component placement.
NOZZLE CHANGE
Shown are the total periods of time during which the machine takes the
nozzle change movement and the nozzle change operation.
COMP. REJECT
Shown are the total periods of time during which the machine moves to
the position where rejected (recognition error) components are discharged
and takes the up/down movement to discharge such components.
WAIT FOR PLACEMENT
Shown are the total periods of time during which the machine waits for
the movement to the placement area to become possible through the
beam cooperative movement after the component recognition is com-
pleted.
P. E . C .
Shown are the total periods of time during which the machine moves the
P.E.C. recognition position and executes the P.E.C. recognition.
B.B.R. (Option)
Shown are the total periods of time during which the bad mark detection
position is moved and the machine executes the bad mark detection.
IDLING
Shown are the periods of time during which the beams are kept idle due
to the difference in allocation between Beams A and B.
BEAM ESCAPE MOVEMENT
When Beam A or B is activated and the deactivated beam is located in
the interference area, the deactivated one moves back to its escape posi-
tion and the other one is activated.
The turnout time is the total time required for the escaped beam to set
ready for activation after the other beam has started escaping and the
activated one has completed its movement.
When it takes a lot of time for the beam to move back to its escape
position, it means that the movement of both beams are not coordinated
well, making the movement inefficient.
Note: When the machine is stopped temporarily during component place-
ment operation or the machine starts its operation in the middle of
steps according to the designated mode of the semi-automatic op-
eration (placement step), these periods of time are not measured.
When the machine is set in the component supply mode due to a
material shortage, these periods of time are not measured, either.
Each parameter (allocation of each
operation time) allocated to the
current P.C.B. process time is clas-
sified by colors and charted by
columns.
The less waiting time is required
for both Beams A and B, the more
efficiently the machine is running.
3. MANAGEMENT DATA Display
9910-001 3-17
Tg0249-PM-MM

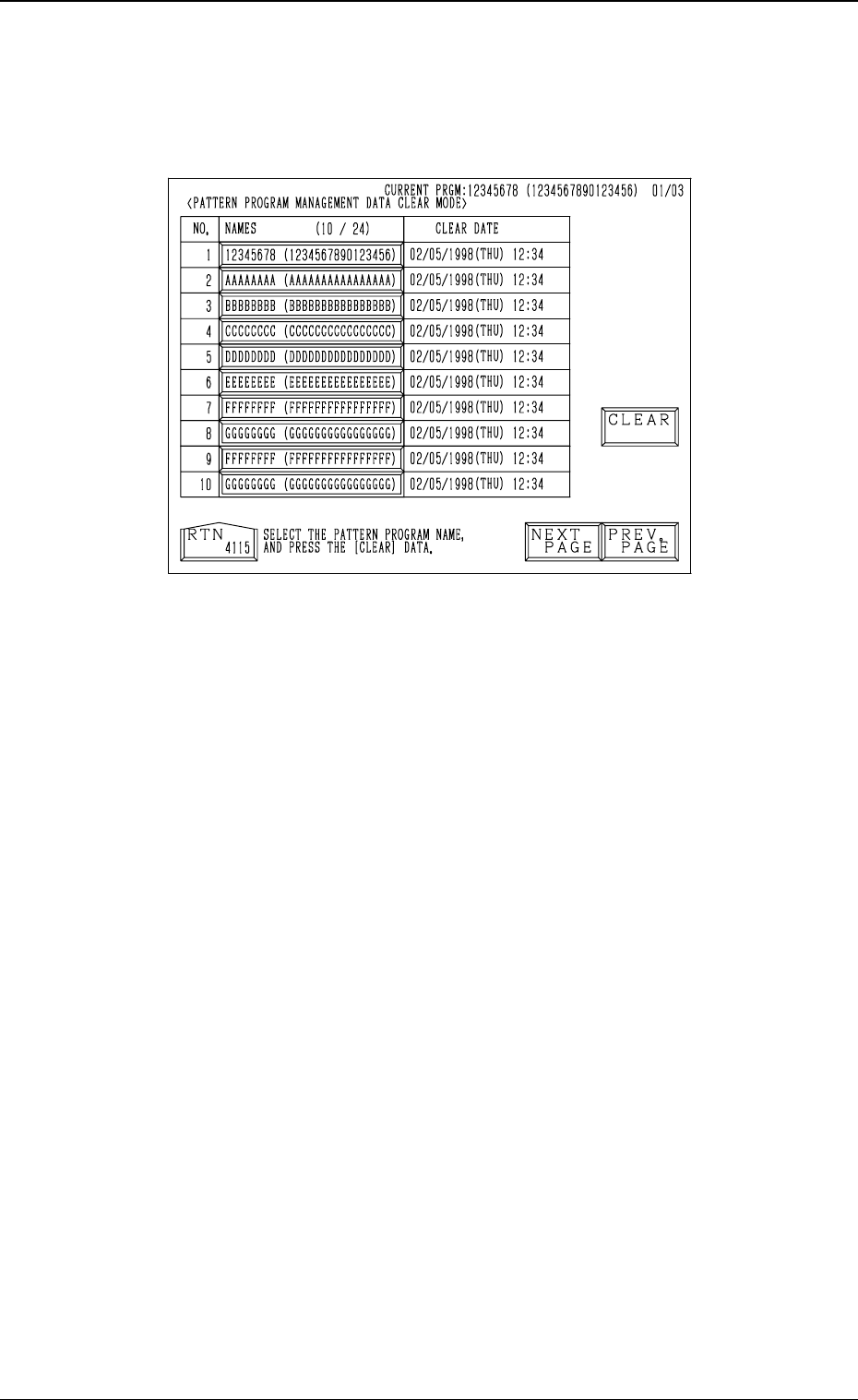

(5) Pattern Program Management Data Clear Mode
When the [CLEAR PATTERN PRGM. MGT. DATA] key is pressed at
the “PATTERN PROGRAM MANAGEMENT DATA” display, the fol-
lowing display appears on the screen.
•
When a pattern program name is selected by pressing the corresponding
“NAMES (XX/XX)” key and the [CLEAR] key is pressed, the pattern pro-
gram management data of the selected pattern program is cleared.
•
The date when the [CLEAR] key is pressed is displayed in the “CLEAR
DATE” text boxes.
9910-001 3-18
Fig. 3.8
3. MANAGEMENT DATA Display
Tg0249-PM-MM

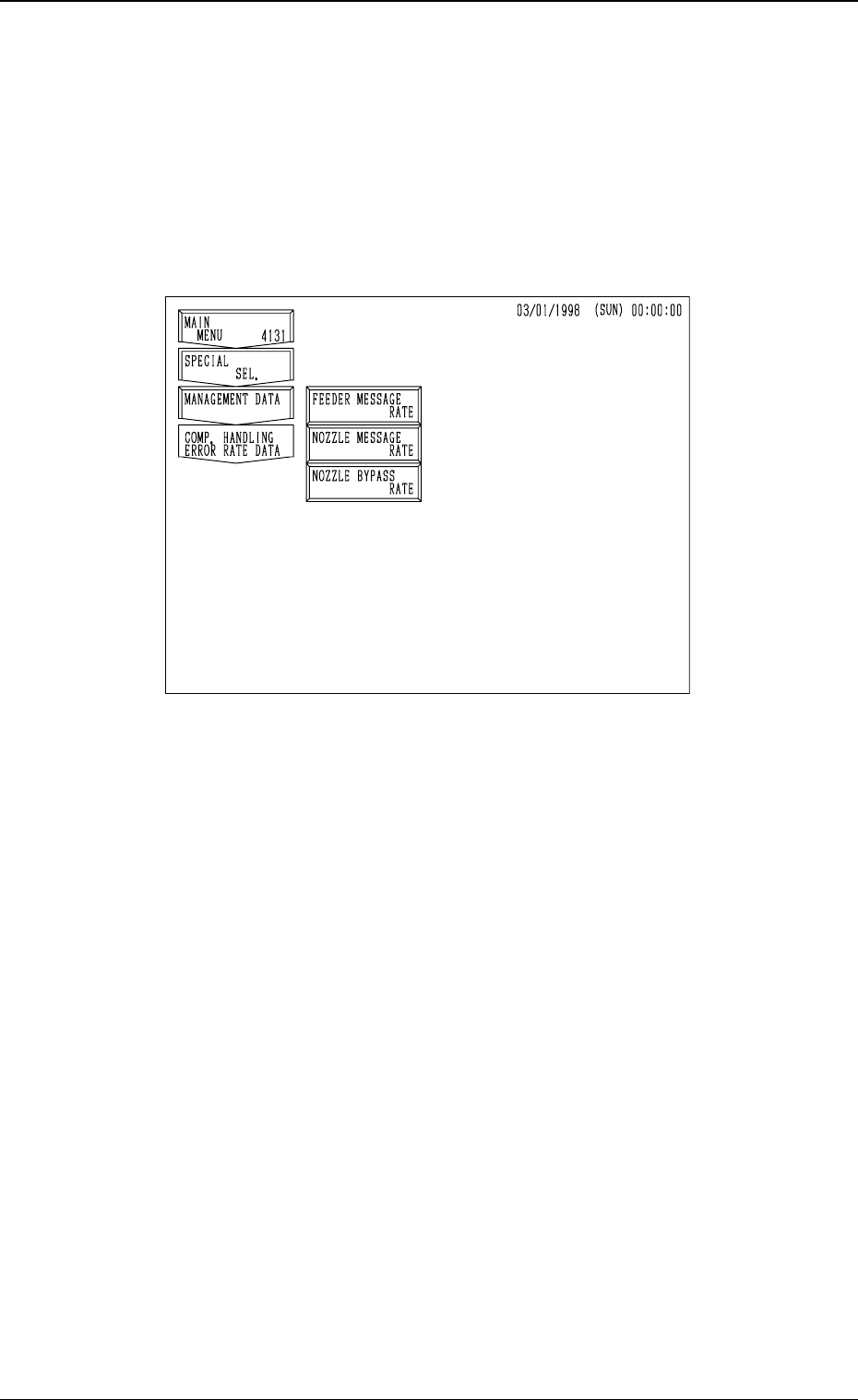

3.2 Component Handling Error Rate Data
This session describes how to check the pick-up rate calculated for each feeder
or nozzle and based on each pick-up rate specified in the automatic operation
set-up data.
When the [COMP. HANDLING ERROR RATE DATA] key is pressed at the
“MANAGEMENT DATA” display, the following display appears on the screen.
Fig. 3.9
9910-001 3-19
3. MANAGEMENT DATA Display
