Tg0249-PM-MM *7 [P .C.B. TRANSFER MANUAL MODE] Key When this key is pressed, the “MANUAL TRANSFER OPERA TION” display (Fig. 3.33) appears on the screen. The selected device can be moved manually . When the [P .C.B. TRANS…
Tg0249-PM-MM
*6 [JIG P.C.B.] Key
When this key is pressed, the “JIG P.C.B. EDIT” display
(Fig. 3.32) appears on the screen, enabling the entry of pa-
rameters related to the jig P.C.B.
• A parameter can be entered in each data box.
The parameters (X and Y) for “MARK #1 (PP. BASIS)”
are the coordinates (distances) based on the reference
point for P.C.B. positioning.
Enter the numeric values described on the jig P.C.B.
9910-001 3-50
6. TEACH OFFSET Display
Fig. 3.32
Tg0249-PM-MM
*7 [P.C.B. TRANSFER MANUAL MODE] Key
When this key is pressed, the “MANUAL TRANSFER
OPERATION” display (Fig. 3.33) appears on the screen.
The selected device can be moved manually.
When the [P.C.B. TRANSFER MANUAL MODE] key
is selected and the [MOVE] button is pressed, the se-
lected device is activated.
• [TRANSFER] Key:
A series of P.C.B. transfer and positioning operations
are performed.
• [BACKUP UP/DOWN AXIS LOCATE POSITION
MOVE] Key:
The P.C.B. backup base moves to the positioning spot.
• [BACKUP UP/DOWN AXIS WAIT POSITION
MOVE] Key:
The P.C.B. backup base moves to the standby position.
• [BACKUP UP/DOWN AXIS ZERO POSITION
MOVE] Key:
The P.C.B. backup base moves to its origin.
• [P.C.B. LOCATING SIDE CLAMP] Key:
The P.C.B. locating side clamp moves forward and back-
ward.
• [L-CONVEYOR P.C.B. STOPPER] Key:
The L-conveyor P.C.B. stopper moves forward and back-
ward.
• [R-CONVEYOR P.C.B. STOPPER] Key:
The R-conveyor P.C.B. stopper moves forward and back-
ward.
• [P-CONVEYOR (+) LOW-SPEED] Key:
The P conveyor moves forward (normal rotation) at low
speed.
• [P-CONVEYOR (-) LOW-SPEED] Key:
The P conveyor moves backward (reverse rotation) at
low speed.
9910-001 3-51
6. TEACH OFFSET Display
Fig. 3.33
Tg0249-PM-MM

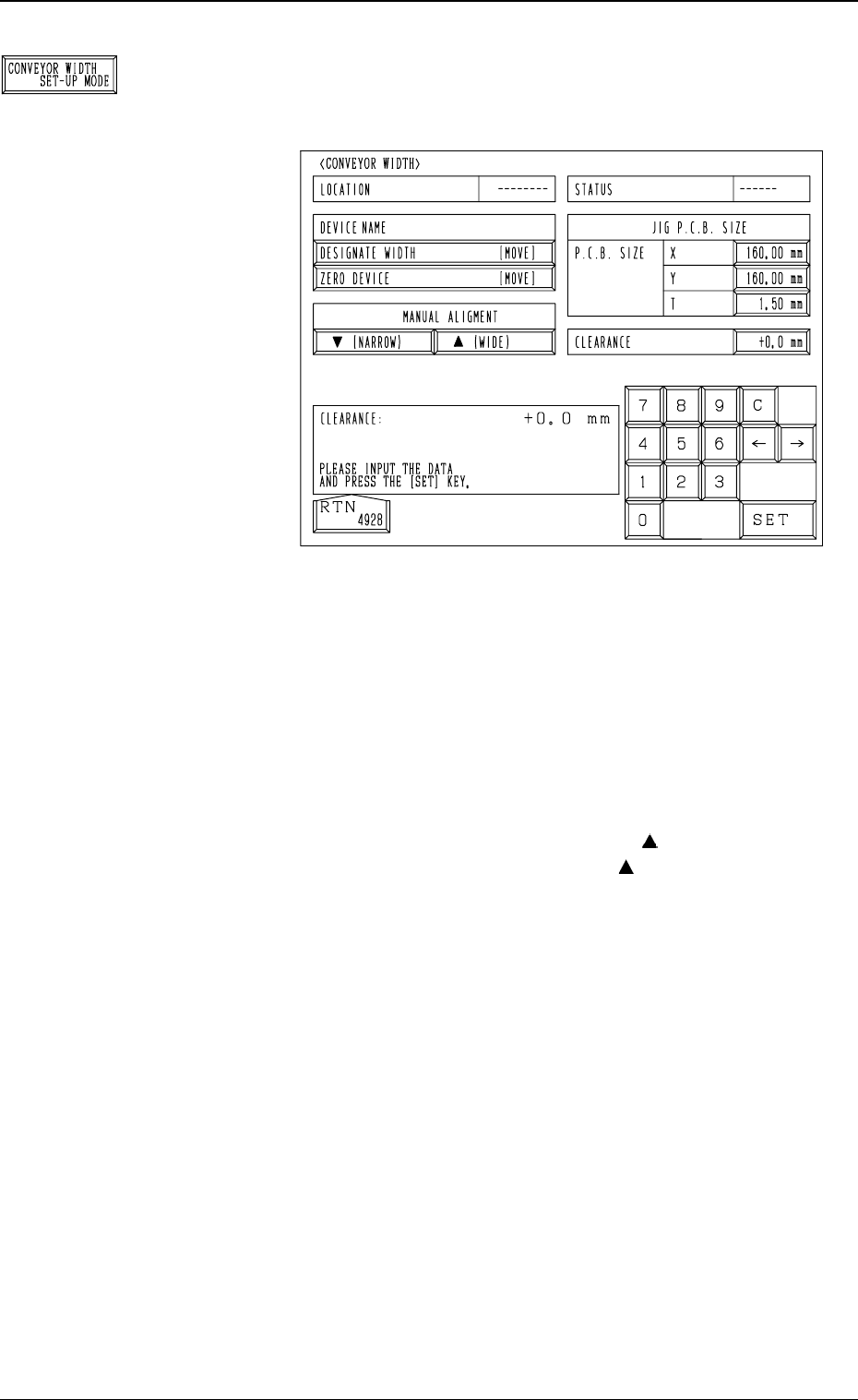

*8 [CONVEYOR WIDTH SET-UP MODE] Key
When this key is pressed, the following display appears on
the screen.
The conveyor width can be changed.
• P.C.B. SIZE X, Y, and T : Enter the dimensions of the
jig P.C.B. in these data boxes.
Normal Settings: X = 160
mm, Y = 160 mm, and T =
1.50 mm
• CLEARANCE : Enter a clearance of the conveyor width
in relation to the jig P.C.B. size.
• MANUAL ALIGNMENT : When the [
(NARROW)]
or the [
(WIDE)] key is
selected and the [MOVE]
button is pressed, the con-
veyor width is narrowed or
widened.
• When the [ZERO DEVICE [MOVE]] key is selected and
the [MOVE] button is pressed, the conveyor width vari-
able shaft is zeroed.
Ref.: Before the zeroing operation is initiated, each con-
veyor is automatically activated to check that no
P.C.B. is located at any irregular position.
• When the [DESIGNATE WIDTH [MOVE]] key is se-
lected and the [MOVE] button is pressed, activate the
conveyor automatically to check that no P.C.B. is located
at any irregular position and then set up the conveyor
width to “JIG P.C.B. SIZE + CLEARANCE”.
Ref.: It is checked that no P.C.B. is located at any ir-
regular position when the set-up operation is per-
formed for the first time after the “CONVEYOR
WIDTH” display is opened.
It is not checked when the second or the subse-
quent set-up operation is performed.
0004-002 3-52
6. TEACH OFFSET Display
Fig. 3.34
