– 27 – ELE V A TOR SECTIO N No. Part No. Part Name Qty . Detail Y amaha Hitachi A01 KYC-M1712-00 1015A301 HNS,FEED-BUNDLE 1 A02 KYC-M172U-00 1015A302 HNS,SW-UP 1 A03 KYC-M172V -00 1015A303 HNS,SW-DN 1 A04 KYC-M175V -00 1…
– 26 –
K1
11 Cable
1304-001
A06
U157
A02
XS0502
S15338
H15215
X15410
X15510
U156
A03
XS0503
S15339
H15216
A07
XS0501
XS0502-2
XS0503-2
XS0501-2
S0501
S0503
S0502
S0501
B15330
B15331
A04
X15330
X15236
EVU
B15032
XB15032
XS15338
XS15339
XS15337
X15214
X15334
ELECTRICAL BOX
B15235
B15332
XM02
A16
M02
M02P
M03
M03P
EVD
XB0202
A18
B0202
B15230
B15233
B15234
EVD-B
EVD-
Y15210
B15236
B15241
B15333
EVU-B
EVU-
B15240
B15239
Y15211
B15032
A13
A12
A14
A17
A05
S15337
H15214
B0302
XB0302
A09
B0201
XB0201
A10
A01
A11
D
D
B
C
F
F
F
C
A
E
A
F
E
B15032 AMP
B
A
A
– 27 –

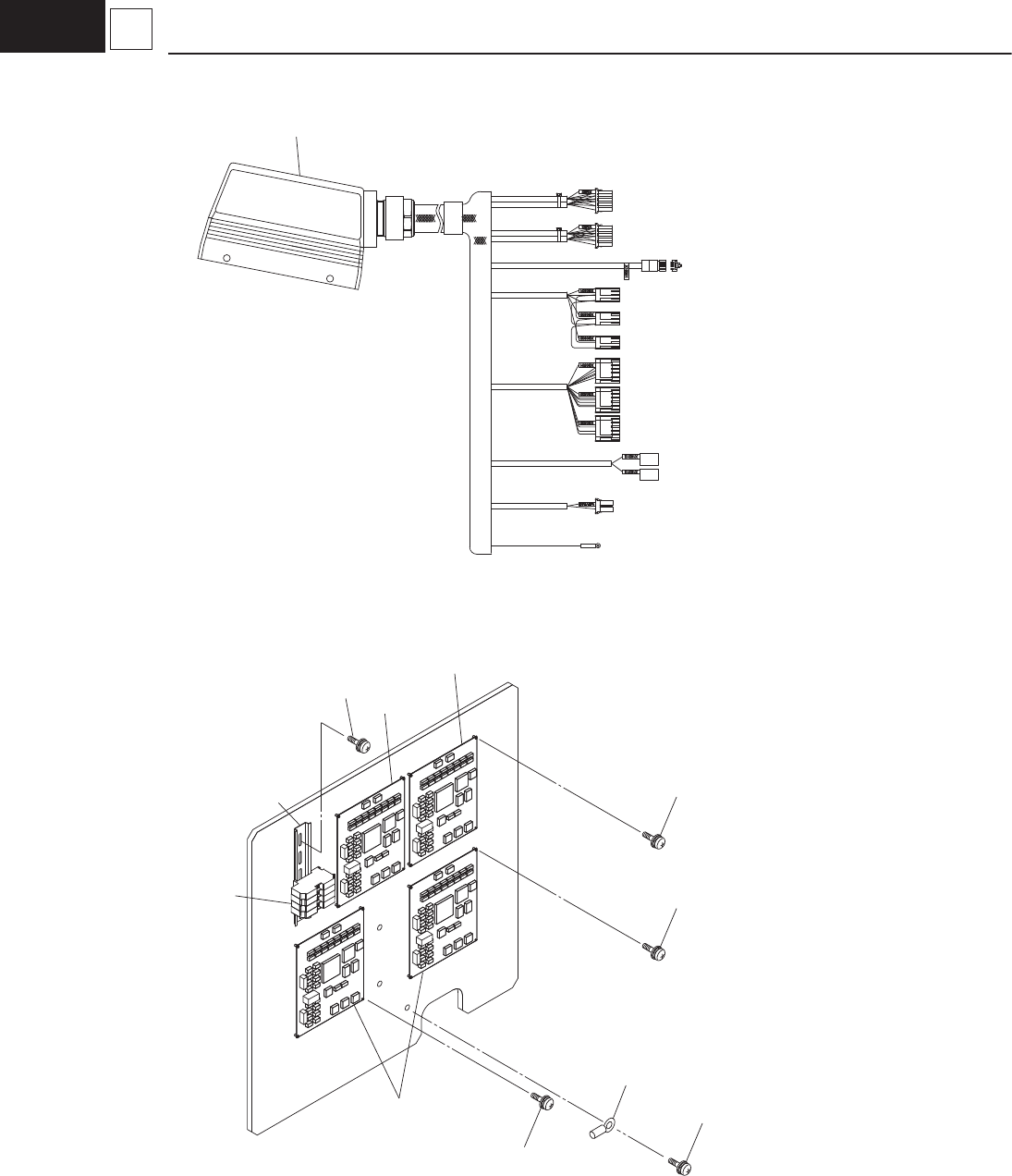

ELEVATOR SECTION
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
A01 KYC-M1712-00 1015A301 HNS,FEED-BUNDLE 1
A02 KYC-M172U-00 1015A302 HNS,SW-UP 1
A03 KYC-M172V-00 1015A303 HNS,SW-DN 1
A04 KYC-M175V-00 1015A30G HNS,PALETTE-DETECT 1
A05 KYC-M172W-00 1015A305 HNS,SAFETY-SW-DN 1
A06 KYC-M172X-00 1015A306 HNS,SAFETY-SW-UP 1
A07 KYC-M172Y-00 1015A307 HNS,SAFETY-SW-MG 1
A09 KYC-M175B-00 0921E50C HNS,XB0302-B0302 1
A10 KYC-M175A-00 0921E50B HNS,XB0201-B0201 1
A11 KYC-M175T-00 1015A304 HNS,PALETTE-OUT 1
A12 KYC-M174L-00 4W205241 HNS,XM03-M03 1
A13 KYC-M1733-00 1015A30D HNS,UP-MG-SENSOR1 1
A14 KYC-M1734-00 1015A30E HNS,UP-MG-SENSOR2 1
A16 KYC-M174K-00 4W205240 HNS,XM02-M02 1
A17 KYC-M1730-00 1015A30A HNS,DN-MG-SENSOR1 1
A18 KYC-M1731-00 1015A30B HNS,DN-MG-SENSOR2 1
A31 KYC-M171W-00 10150324 ASSY-UB95-EL 1
A32 KYB-M918U-00 1015011Z ASSY-UB95-WRITE 3
A33 90990-11J012 221DA057 SCREW,PAN HEAD WW 16 PAN M3L14 SW+FW
A34 90990-11J016 221DA053 SCREW,PAN HEAD WW 6 PAN M4L6 SW+FW
A35 KYB-M65AW-00 23N30632 WIRING 3
A36 KYB-M65AS-00 23N30497 RAIL-WIRING 1
A37 KYB-M65AV-00 23N30612 ACCESS-WIRING 1
A38 KYB-M941P-00 23N30519 ACCESS-WIRING 2
A39 KYB-M65BC-00 4J320187 TERMINAL 4
A40 KYB-M65AU-00 23N30524 ACCESS-WIRING 4
A41 KYB-M6587-00 23N10027 TERMINAL 2
