– 2 – K1 K1 ELEV A TOR SECTION 1 Cover Section 1304-001 See Fig. K1-4 Key No. 302 See Fig. K1-3 Key No. 204 See Fig. K1-2 Key No. 106 See Fig. K1-5 Key No. 416 See Fig. K1-5 Key No. 402 See Fig. K1-4 Key No. 321 See Fig.…
– 2 –
K1

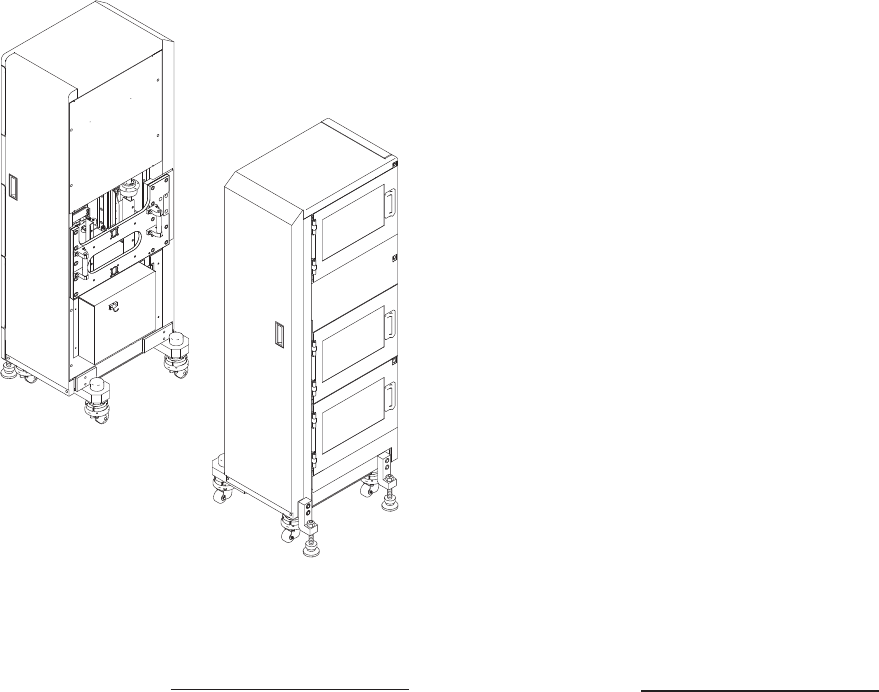

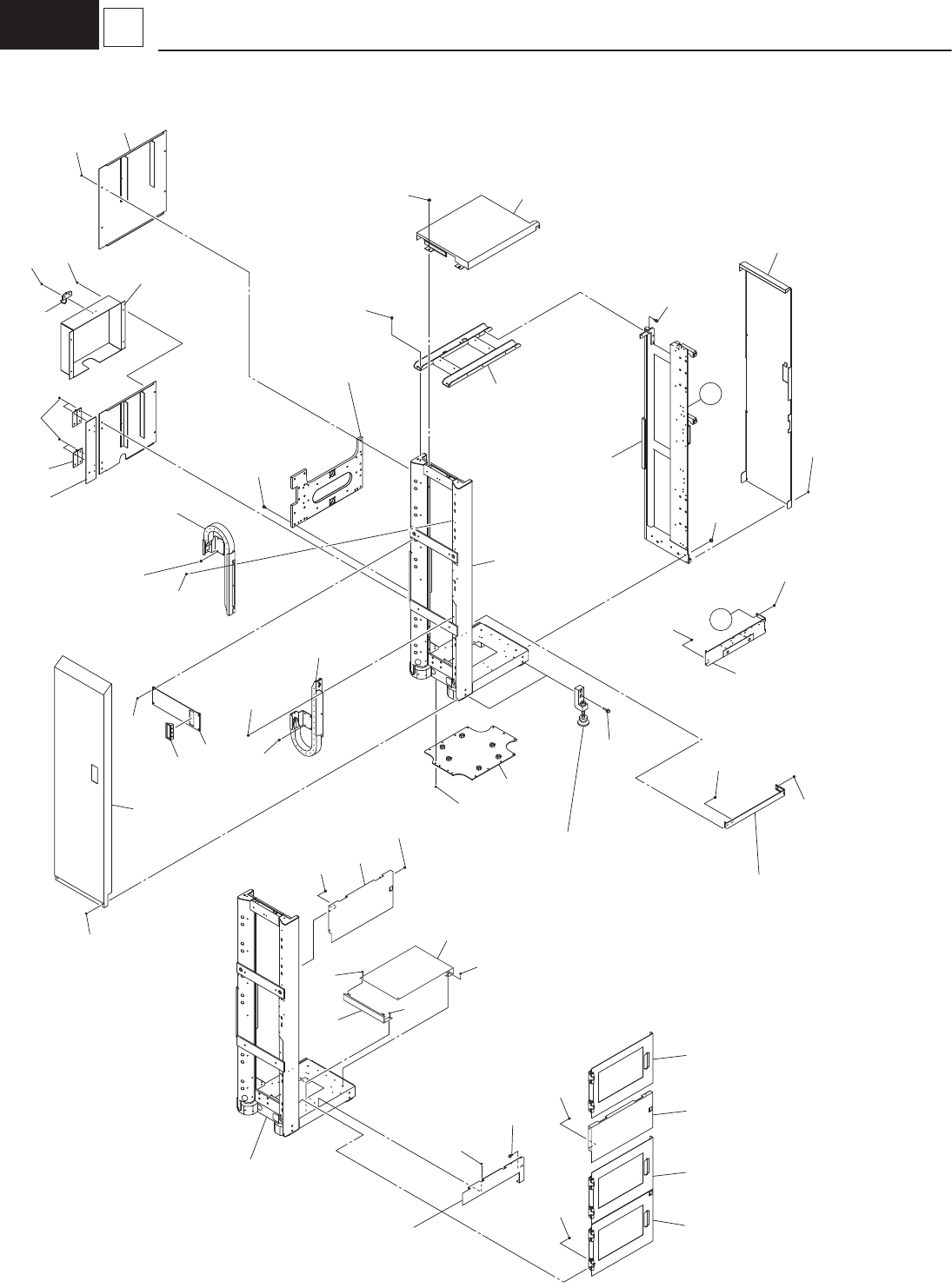

K1 ELEVATOR SECTION
1 Cover Section
1304-001
See Fig. K1-4
Key No. 302
See Fig. K1-3
Key No. 204
See Fig. K1-2
Key No. 106
See Fig. K1-5
Key No. 416
See Fig. K1-5
Key No. 402
See Fig. K1-4
Key No. 321
See Fig. K1-2
Key No. 183
See Fig. K1-4
Key No. 341
See Fig. K1-2
Key No. 174
See Fig. K1-2
Key No. 106
See Fig. K1-5
Key No. 483
See Fig. K1-5
Key No. 427
See Fig. K1-5
Key No. 447
See Fig. K1-5
Key No. 467
See Fig. K1-5
Key No. 4A3
46
36
44
33
44
33
47
37
44
33
44
33
41
39
42
35
45
35
C
44
33
45
35
44
33
45
35
40
33
44
32
44
4A3
54
55
32
44
33
44
56
40
56
38
29
33
44
24
40
35
42
19
40
25
39
18
26
40
23
22
20
40
40
49
27
30
C
– 3 –
ELEVATOR SECTION
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
18 KYC-M173E-00 211FE469 BRACKET 1
19 KYC-M1738-00 1015A417 COVER 1
20 KYC-M1714-00 1015A403 COVER_ELE 1
22 KYC-M175Y-00 1015A401 PLATE 1
23 KYC-M1718-00 211AE135 COVER 1
24 KYC-M170K-00 0921E70T COVER 1
25 KYC-M170L-00 0921E70Q COVER 1
26 KYC-M174C-00 226C0251 HANDLE 1
27 KYC-M1761-00 1015A419 HINGE 2
29 KYC-M173B-00 0921E70K COVER 1
30 KYC-M1762-00 1015A41A FOOK 1
32 91312-04006 221AA015 BOLT,HEX.SOCKET HEAD 3 M4L6
33 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 28 M4L8
34 91312-04010 221AA017 BOLT,HEX.SOCKET HEAD 4 M4L10
35 91312-05016 221AA031 ROHS_HEX-SCT 18 M5L16
36 91312-06014 221AA240 BOLT,HEX.SOCKET HEAD 15 M6L14
37 91312-08035 221AA059 BOLT,HEX.SOCKET HEAD 4 M5L35
38 98702-04006 221DA113 SCREW,FLAT HEAD 15 FLT M4L6
39 98702-04010 221DA115 SCREW,FLAT HEAD 4 FLT M4L10
40 90990-66J012 221DA207 SCREW,TRUSS HEAD 39 TRS M4L6
41 KYB-M65A9-00 221HA302 ROHS_WASHER 4 SW4
42 KYB-M65AA-00 221HA303 ROHS_WASHER 8 SW5
44 92902-04200 221HA104 WASHER 31 FW4
45 92902-05200 221HA105 WASHER 10 FW5
46 92902-06200 221HA106 WASHER 15 FW6
47 92902-08200 221HA107 WASHER,PLAIN 4 FW8
49 98702-04008 221DA114 SCREW,FLAT HEAD 2 FLT M4L8
54 KYC-M1717-00 1015A41U COVER 1
55 KYC-M173C-00 1015A41T COVER 1
56 90990-66J011 221DA217 SCREW,TRUSS HEAD 4 TRS M4L4
1304-001
