– 3 – ELE V A TOR S ECTION No. Part No. Part Name Qty . Detail Y amaha Hitachi 18 KYC-M173E-00 21 1FE469 BRACKET 1 19 KYC-M1738-00 1015A417 COVER 1 20 KYC-M1714-00 1015A403 COVER_ELE 1 22 KYC-M175Y -00 1015A401 PLA TE 1 …
– 2 –
K1
K1 ELEVATOR SECTION
1 Cover Section
1304-001
See Fig. K1-4
Key No. 302
See Fig. K1-3
Key No. 204
See Fig. K1-2
Key No. 106
See Fig. K1-5
Key No. 416
See Fig. K1-5
Key No. 402
See Fig. K1-4
Key No. 321
See Fig. K1-2
Key No. 183
See Fig. K1-4
Key No. 341
See Fig. K1-2
Key No. 174
See Fig. K1-2
Key No. 106
See Fig. K1-5
Key No. 483
See Fig. K1-5
Key No. 427
See Fig. K1-5
Key No. 447
See Fig. K1-5
Key No. 467
See Fig. K1-5
Key No. 4A3
46
36
44
33
44
33
47
37
44
33
44
33
41
39
42
35
45
35
C
44
33
45
35
44
33
45
35
40
33
44
32
44
4A3
54
55
32
44
33
44
56
40
56
38
29
33
44
24
40
35
42
19
40
25
39
18
26
40
23
22
20
40
40
49
27
30
C
– 3 –
ELEVATOR SECTION
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
18 KYC-M173E-00 211FE469 BRACKET 1
19 KYC-M1738-00 1015A417 COVER 1
20 KYC-M1714-00 1015A403 COVER_ELE 1
22 KYC-M175Y-00 1015A401 PLATE 1
23 KYC-M1718-00 211AE135 COVER 1
24 KYC-M170K-00 0921E70T COVER 1
25 KYC-M170L-00 0921E70Q COVER 1
26 KYC-M174C-00 226C0251 HANDLE 1
27 KYC-M1761-00 1015A419 HINGE 2
29 KYC-M173B-00 0921E70K COVER 1
30 KYC-M1762-00 1015A41A FOOK 1
32 91312-04006 221AA015 BOLT,HEX.SOCKET HEAD 3 M4L6
33 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 28 M4L8
34 91312-04010 221AA017 BOLT,HEX.SOCKET HEAD 4 M4L10
35 91312-05016 221AA031 ROHS_HEX-SCT 18 M5L16
36 91312-06014 221AA240 BOLT,HEX.SOCKET HEAD 15 M6L14
37 91312-08035 221AA059 BOLT,HEX.SOCKET HEAD 4 M5L35
38 98702-04006 221DA113 SCREW,FLAT HEAD 15 FLT M4L6
39 98702-04010 221DA115 SCREW,FLAT HEAD 4 FLT M4L10
40 90990-66J012 221DA207 SCREW,TRUSS HEAD 39 TRS M4L6
41 KYB-M65A9-00 221HA302 ROHS_WASHER 4 SW4
42 KYB-M65AA-00 221HA303 ROHS_WASHER 8 SW5
44 92902-04200 221HA104 WASHER 31 FW4
45 92902-05200 221HA105 WASHER 10 FW5
46 92902-06200 221HA106 WASHER 15 FW6
47 92902-08200 221HA107 WASHER,PLAIN 4 FW8
49 98702-04008 221DA114 SCREW,FLAT HEAD 2 FLT M4L8
54 KYC-M1717-00 1015A41U COVER 1
55 KYC-M173C-00 1015A41T COVER 1
56 90990-66J011 221DA217 SCREW,TRUSS HEAD 4 TRS M4L4
1304-001
– 4 –
K1

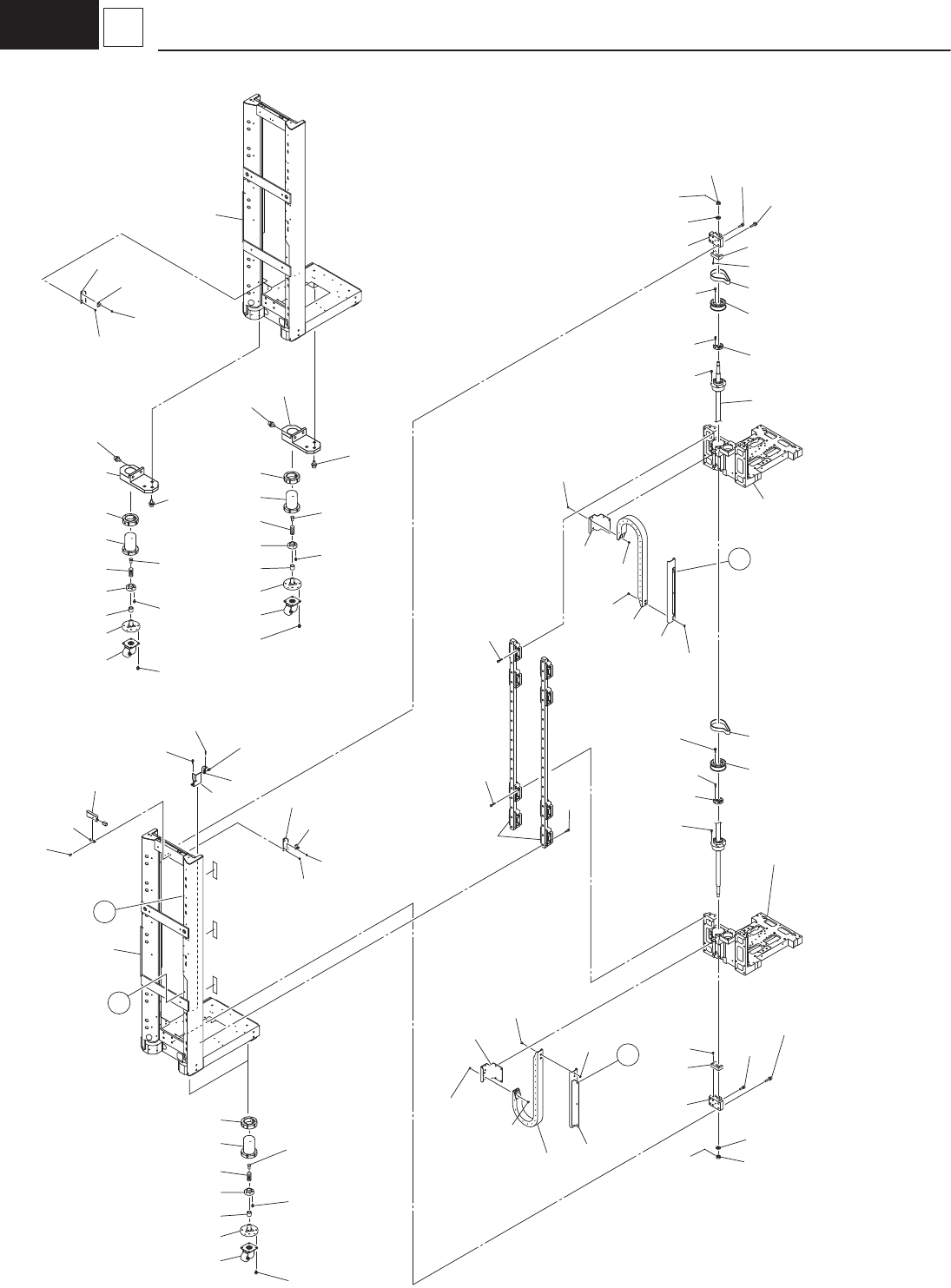

2 Main Frame Section
1304-001
1B4
1B5
1B1
1C2
1B8
1B9
1B6
193
123
192
1A1
1A0
197
194
195
191
1A2
198
199
196
106
12
19
143
129
147
128
1C1
1C0
1B2
1B3
1B7
144
130
125
113
162
141
126
105
144
130
112
143
129
128
119
106
193
192
123
1A1
1A0
197
194
195
191
1A2
198
137
120
120
199
196
137
B
A
185
184
181
185
182
183
184
175
172
174
174
173
171
175
142
118
107
108
109
117
116
115
139
131
133
111
145
134
132
135
114
136
138
117
116
108
131
146
139
110
138
107
118
142
133
111
145
134
132
136
See Fig. K1-8
Key No.705(U)
See Fig. K1-8
Key No.705(D)
B
147
1
1
A
