P-120-001e - 第171页
MODEL TCM-3600J 981 1-001 8- 2 Key No. PART No. PART NAME Q'ty REMARKS 1 630 064 8140 BRACKET(MO TOR) 2 703H--01B-010 2 630 003 2574 GEAR,REDUCT ION 2 703H--01H-016 3 630 049 0831 MOT OR,REVERSIBLE 2 703H--01H-015 4…
MODEL TCM-3600J
9811-001
R コンベア部 R CONVEYOR SECTION

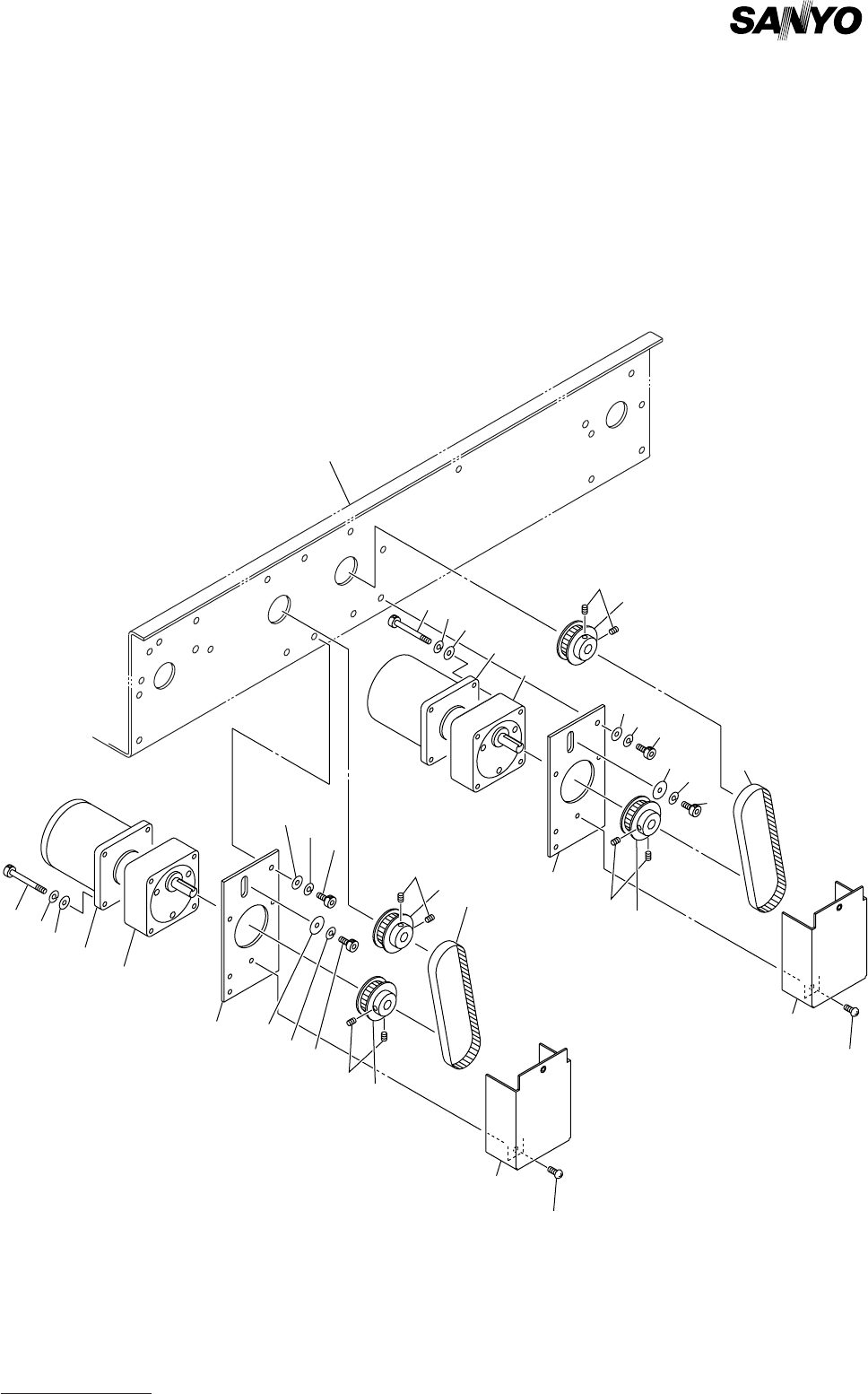

Fig. 8-2 コンベア駆動部 Conveyor Driver
See Fig.8-1
Key No.2
9
10
11
12
13
14
15
16
17
8
7
8
1
2
3
4
5
6
7
9
13
14
15
10
11
12
16
17
4
3
2
8
7
8
7
5
6
1
4796R
MODEL TCM-3600J
9811-001
8- 2
Key No. PART No. PART NAME Q'ty REMARKS
1 630 064 8140 BRACKET(MOTOR) 2 703H--01B-010
2 630 003 2574 GEAR,REDUCTION 2 703H--01H-016
3 630 049 0831 MOTOR,REVERSIBLE 2 703H--01H-015
4 411 141 4107 WASHER V 5X10X1 4 FW5
5 411 141 6705 WASHER SPR 5 4 SW5
6 630 000 7824 BOLT,HEX-SCT 4 M5X45
7 630 009 2684 PULLEY,TIMING 4 703H--01H-017
8 630 000 8944 SET SCREW 8 M5X6 SET
9 630 013 6296 BELT,TIMING 2 703H--01H-036
10 411 141 4107 WASHER V 5X10X1 2 FW5
11 411 141 6705 WASHER SPR 5 2 SW5
12 630 000 7749 BOLT,HEX-SCT 2 M5X10
13 630 001 0220 WASHER 2 703H--01H-027
14 411 141 6705 WASHER SPR 5 2 SW5
15 630 000 7756 BOLT,HEX-SCT 2 M5X12
16 630 061 0055 COVER(MOTOR) 2 703H--01B-032
17 411 051 1708 SCR TRS 4X6 2 M4X6 TRS
NOTE
MODEL TCM-3600J
9811-001
R コンベア部 R CONVEYOR SECTION
Fig. 8-3 ドライブシャフト Driving Shaft
1
2
2
41
42
21
22
23
See Fig.8-1See Fig.8-1
Key No.2Key No.2
4
5
6
7
8
9
6-1
33
34
28
29
30
27
26
25
27-1
26
25
24
20
6
6
7
8
9
6-1
6-1
17
16
35
36
38
39
37
37
3
4
5
7
8
9
1
4796R
