MEMO
MODEL TCM-3600J
9811-001
11- 2
Key No. PART No. PART NAME Q'ty REMARKS
75 630 069 5915 CIRCUIT PROTECTOR 2 703BC-01D-041
76 630 067 3227 CIRCUIT PROTECTOR 1 703BC-01D-042
77 630 068 8894 TERMINAL 2 703BC-01D-055
78 630 074 8093 WIRE PARTS 1 703BC-01D-053
79 630 055 4069 EM-CONTACTOR 1 703BC-01D-027
80 630 049 3672 BRACKET,WIRING 2 703BC-01D-026
82 411 119 2104 WASHER V 4X9X0.8 3 FW4 F
83 411 008 1706 WASHER SPR 4 3 SW4 F
84 411 043 5004 SCR PAN 4X8 3 M4X8 PAN
85 630 049 2200 EM-CONTACTOR 2 703BC-01D-010
85 -1 630 000 1853 COMP,CR 6 703BC-01D-008
86 630 049 3696 TERMINAL 8 703BC-01D-021
87 630 049 3757 ACCESSORY,WIRING 3 703BC-01D-025
88 630 049 3733 ACCESSORY,WIRING 1 703BC-01D-023
90 630 049 3672 BRACKET,WIRING 2 703BC-01D-026
91 630 055 4076 CIRCUIT PROTECTOR 7 703BC-01D-061
92 630 049 3672 BRACKET,WIRING 3 703BC-01D-026
101 630 001 0220 WASHER 3 BW5
102 411 141 6705 WASHER SPR 5 3 SW5
103 630 000 7756 BOLT,HEX-SCT 3 M5X12
104 411 036 8609 SCR PAN+SW+W 5X12 1
NOTE
MEMO
MODEL TCM-3600J
9811-001
電気制御部 ELECTRICAL SECTION

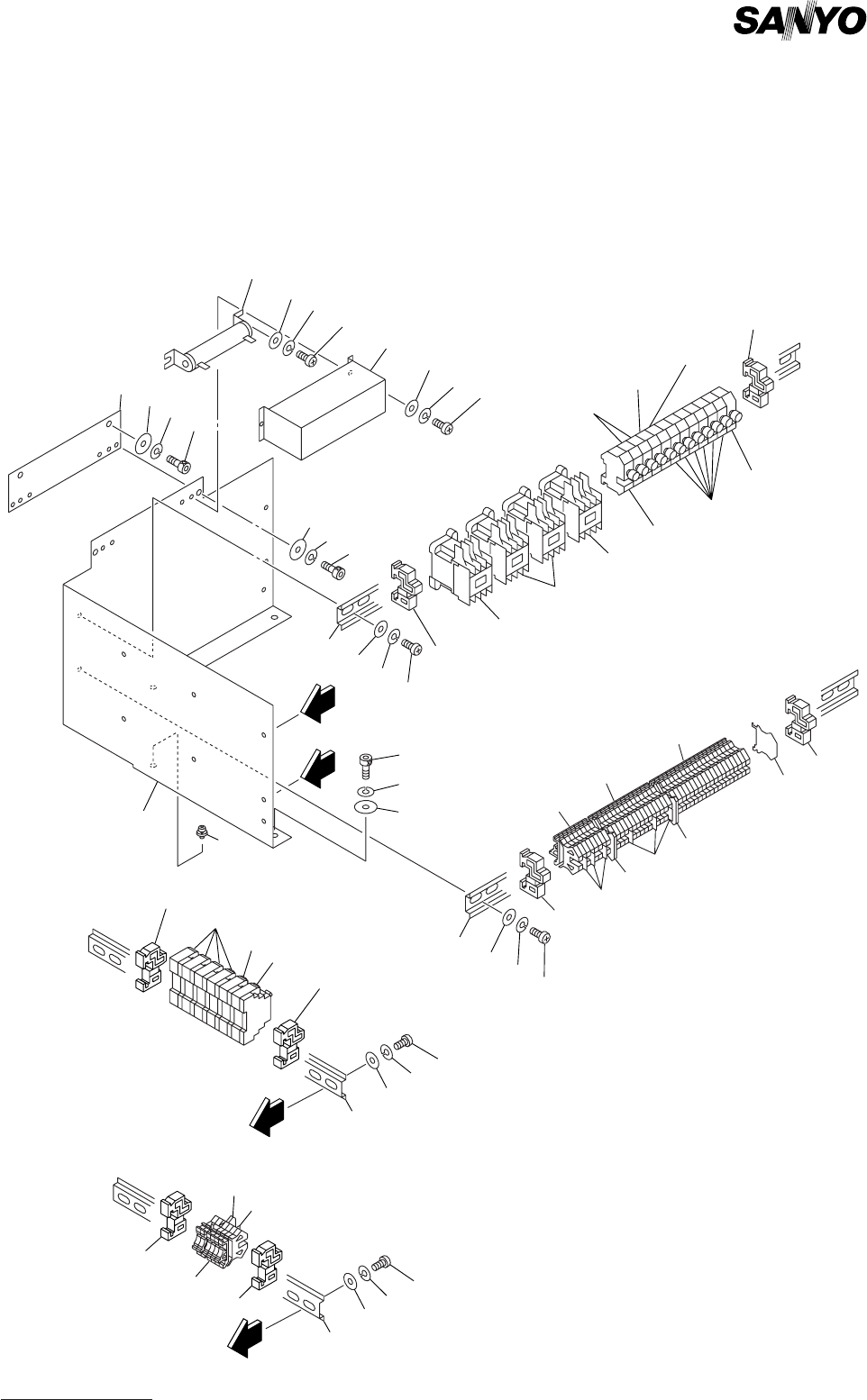

Fig.11-3 100V電源 Power Supply-100V
10
1
2
3
4
61
62
63
64
51
52
63
62
61
53
54
55
56
57
58
31
35
.
31
35
.
31
35
.
32
32
36
34
33
33
36
41
44
44
12
42
14
43
15
13
16
14
15
16
A
B
A
11
22
16
21
30
14
15
22
.
24-1
25
.
24
28
.
28-1
29
.
29-1
27
30
.
27-1
26
.
26-1
25-1
76
71
76
73
72
66
67
68
69
B
TCM-3600J
