MODEL TCM-3600J 981 1-001 12- 3 Key No. PART No. PART NAME Q'ty REMARKS 1 630 064 8560 FRAME 1 703R--01B-001 1 -1 630 064 8553 FRAME 1 703R--01B-002 2 411 141 4305 W ASHER V 6X12.5X 1.6 4 FW 6 3 411 141 3001 W ASHER…
MODEL TCM-3600J
9811-001
カバー部 COVER SECTION

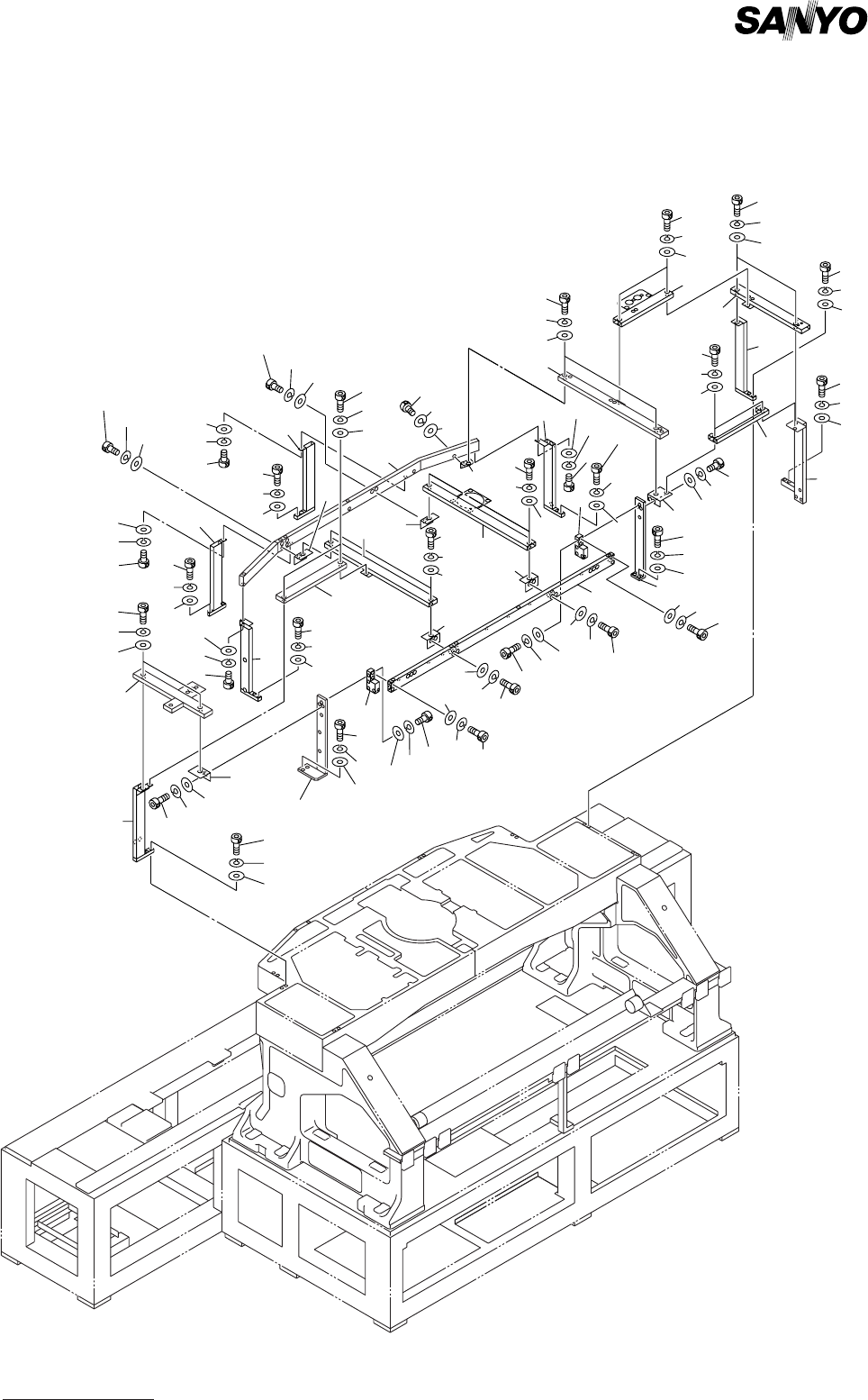

Fig.12-3 上部フレーム Upper Frame
1
22
33
44
55
66
11
12
13
1010
77
88
99
6363
6464
7171
7272
7373
7070
5151
6868
5959
6969
1616
1717
1818
1919
1515
3030
3131
2626
5555
3535
4343
4747
3939
1-11-1
22
33
44
99
88
77
6565
6666
6767
6565
6666
6767
5252
5353
5454
3232
3333
3434
7171
7272
7373
2626
2626
2626
3636
3737
3838
2323
2424
2525
2323
2424
2525
2323
2424
2525
2323
2424
2525
1111
1212
1313
2727
2828
2929
2727
2828
2929
3232
3333
3434
2020
2121
2222
7171
7272
7373
6060
6161
6262
2020
2121
2222
2020
2121
2222
4646
4545
4444
2020
2121
2222
4040
4141
4242
4848
4949
5050
5656
5757
5858
2727
2828
2929-1-1
2727
2828
29-129-1
4796R
MODEL TCM-3600J
9811-001
12- 3
Key No. PART No. PART NAME Q'ty REMARKS
1 630 064 8560 FRAME 1 703R--01B-001
1 -1 630 064 8553 FRAME 1 703R--01B-002
2 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
3 411 141 3001 WASHER SPR 6 4 SW6
4 630 000 7909 BOLT,HEX-SCT 4 M6X25
5 630 038 9555 BLOCK 1 703R--01B-003
6 630 038 9548 BLOCK 1 703R--01B-004
7 411 141 4107 WASHER V 5X10X1 4 FW5
8 411 141 6705 WASHER SPR 5 4 SW5
9 630 000 7800 BOLT,HEX-SCT 4 M5X35
10 630 075 8054 FRAME 1 703R--01B-005
11 411 141 4107 WASHER V 5X10X1 4 FW5
12 411 141 6705 WASHER SPR 5 4 SW5
13 630 000 7756 BOLT,HEX-SCT 4 M5X12
15 630 052 6127 FRAME 1 703R--01B-018
16 630 051 2700 STAY 1 703R--01B-014
17 630 058 0389 STAY 1 703R--01B-015
18 630 058 0747 STAY 1 703R--01B-016
19 630 058 0754 STAY 1 703R--01B-017
20 411 141 4107 WASHER V 5X10X1 4 FW5
21 411 141 6705 WASHER SPR 5 4 SW5
22 630 000 7749 BOLT,HEX-SCT 4 M5X10
23 411 141 4305 WASHER V 6X12.5X1.6 8 FW6
24 411 141 3001 WASHER SPR 6 8 SW6
25 630 000 7909 BOLT,HEX-SCT 8 M6X25
26 630 050 6785 BRACKET 4 703R--01B-021
27 411 141 4107 WASHER V 5X10X1 8 FW5
28 411 141 6705 WASHER SPR 5 8 SW5
29 630 000 7756 BOLT,HEX-SCT 4 M5X12
29 -1 630 000 7749 BOLT,HEX-SCT 4 M5X10
30 630 064 8614 FRAME 1 703R--01B-019
31 630 064 8621 FRAME 1 703R--01B-020
32 411 141 4107 WASHER V 5X10X1 4 FW5
33 411 141 6705 WASHER SPR 5 4 SW5
34 630 000 7749 BOLT,HEX-SCT 4 M5X10
35 630 075 8641 STAY 1 703R--01B-026
36 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
37 411 141 3001 WASHER SPR 6 2 SW6
38 630 000 7909 BOLT,HEX-SCT 2 M6X25
39 630 051 2571 BRACKET 1 703R--01B-029
40 411 141 4107 WASHER V 5X10X1 2 FW5
41 411 141 6705 WASHER SPR 5 2 SW5
42 630 000 7756 BOLT,HEX-SCT 2 M5X12
43 630 064 8638 FRAME 1 703R--01B-027
44 411 141 4107 WASHER V 5X10X1 2 FW5
45 411 141 6705 WASHER SPR 5 2 SW5
46 630 000 7749 BOLT,HEX-SCT 2 M5X10
47 630 058 0297 FRAME 1 703R--01B-028
48 411 141 4107 WASHER V 5X10X1 2 FW5
49 411 141 6705 WASHER SPR 5 2 SW5
NOTE
MODEL TCM-3600J
9811-001
12- 3
Key No. PART No. PART NAME Q'ty REMARKS
50 630 000 7749 BOLT,HEX-SCT 2 M5X10
51 630 050 6778 BRACKET 1 703R--01B-009
52 411 141 4107 WASHER V 5X10X1 2 FW5
53 411 141 6705 WASHER SPR 5 2 SW5
54 630 000 7756 BOLT,HEX-SCT 2 M5X12
55 630 050 6792 BRACKET 1 703R--01B-022
56 411 141 4107 WASHER V 5X10X1 2 FW5
57 411 141 6705 WASHER SPR 5 2 SW5
58 630 000 7749 BOLT,HEX-SCT 2 M5X10
59 630 064 8607 FRAME 1 703R--01B-011
60 411 141 4107 WASHER V 5X10X1 2 FW5
61 411 141 6705 WASHER SPR 5 2 SW5
62 630 000 7749 BOLT,HEX-SCT 2 M5X10
63 630 064 8584 STAY 1 703R--01B-006
64 630 051 2694 STAY 1 703R--01B-007
65 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
66 411 141 3001 WASHER SPR 6 4 SW6
67 630 000 7909 BOLT,HEX-SCT 4 M6X25
68 630 064 8591 FRAME 1 703R--01B-010
69 630 052 7636 FRAME 1 703R--01B-012
70 630 051 2595 FRAME 1 703R--01B-008
71 411 141 4107 WASHER V 5X10X1 6 FW5
72 411 141 6705 WASHER SPR 5 6 SW5
73 630 000 7749 BOLT,HEX-SCT 6 M5X10
NOTE
