RECOVERY PROCEDURE System Description The machines’ hard disk drive is partitioned to allocate both system and dynamic disk space. System information is held on drive C: which holds all the system software including the …
The menu bar changes to the following:
Delete Rebuild
List
Left Right Up Down Exit
The Rebuild List key updates the list of image files. This is used mainly with
host comms, where the host computer may have a more up to date list.
The Left and Right keys move the cursor between columns (if displayed).
The Up and Down keys move the cursor between the various image files.
The Delete key deletes the highlighted image file.
The Exit key returns to the previous menu.
Deviation Data If the Delete Data key is pressed when Deviation Data is highlighted, the
message ‘Confirm deletion of Deviation Data’ is displayed in the message
prompt box, asking the user to confirm the deletion request, the menu bar
changes displaying the Yes and No options.
Yes No
7.12 User Manual Software Version 6
HOUSE KEEPING
DELETE DATA
RECOVERY PROCEDURE
System Description The machines’ hard disk drive is partitioned to allocate both system and dynamic
disk space. System information is held on drive C: which holds all the system
software including the Windows NT operating system. The drive D: contains
the machine operating software and the dynamic (changeable) files such as
product, machine configuration and calibration.
It is the files on drive D: which need to be backed up at regular intervals to enable
the machine to be brought back into an up-to-date working state should the
Windows NT operating system or the machine software fail.
Recovery Disk DEK provide a 265 Horizon Software CD-ROM that the engineer can use to
restore the machine or the operating system software should an error occur. The
CD-ROM autoruns, on-screen prompts provide an easy route to either full or
partial recovery. The option for full or partial recovery depends upon the extent
of the system error reported and whether the engineer deems it necessary to
complete a full or partial recovery.
At the time of machine shipment, the software CD-ROM is burnt with all the
information required to operate the machine, this disk is shipped with the
machine. It should be noted that the product specific files such as CONFIG.TXT
files, may have changed since the time of shipment. Files that have been
archived can be used to overwrite the files on disk D: as required.
Recovery Procedure
Software Version 6 User Manual 7.13
HOUSE KEEPING
RECOVERY PROCEDURE
To perform a partial or full system recovery carry out the following:
1. Close down Windows.
2.
3.
4. Turn the mains isolator to , the DEK Set-up program runs.
5. Select on the keyboard when the message
is displayed.
NOTE
If a current backup copy of the product and machine calibration data is not
held, carry out Steps 6 - 8 .
6. Select - Backup Product and Calibration Data.
7. Insert a blank formatted floppy disk into the A: drive.
8. Follow the on-screen prompts and copy the machine calibration and product
files to the A: drive.
9. From the main menu, select either to replace Windows NT partition
or to reload the entire disk and select on the keyboard.
10
ON
C 'Press 'C' to Continue or <ESC>
to quit recovery'
Option 3
Option 1
Option 2 C
Insert the Horizon Software CD-ROM into the machine PC CD-ROM tray.
Turn the mains isolator to .
. When prompted enter machine serial number and press . The Ghost
program now re-writes the Windows NT partition and if selected the DEK
machine software.
11. On completion, remove the CD-ROM from the PC and reboot the machine.
12. Window NT automatically scans both partitions of the hard disk for errors.
OFF
Return
7.14 User Manual Software Version 6
HOUSE KEEPING
RECOVERY PROCEDURE

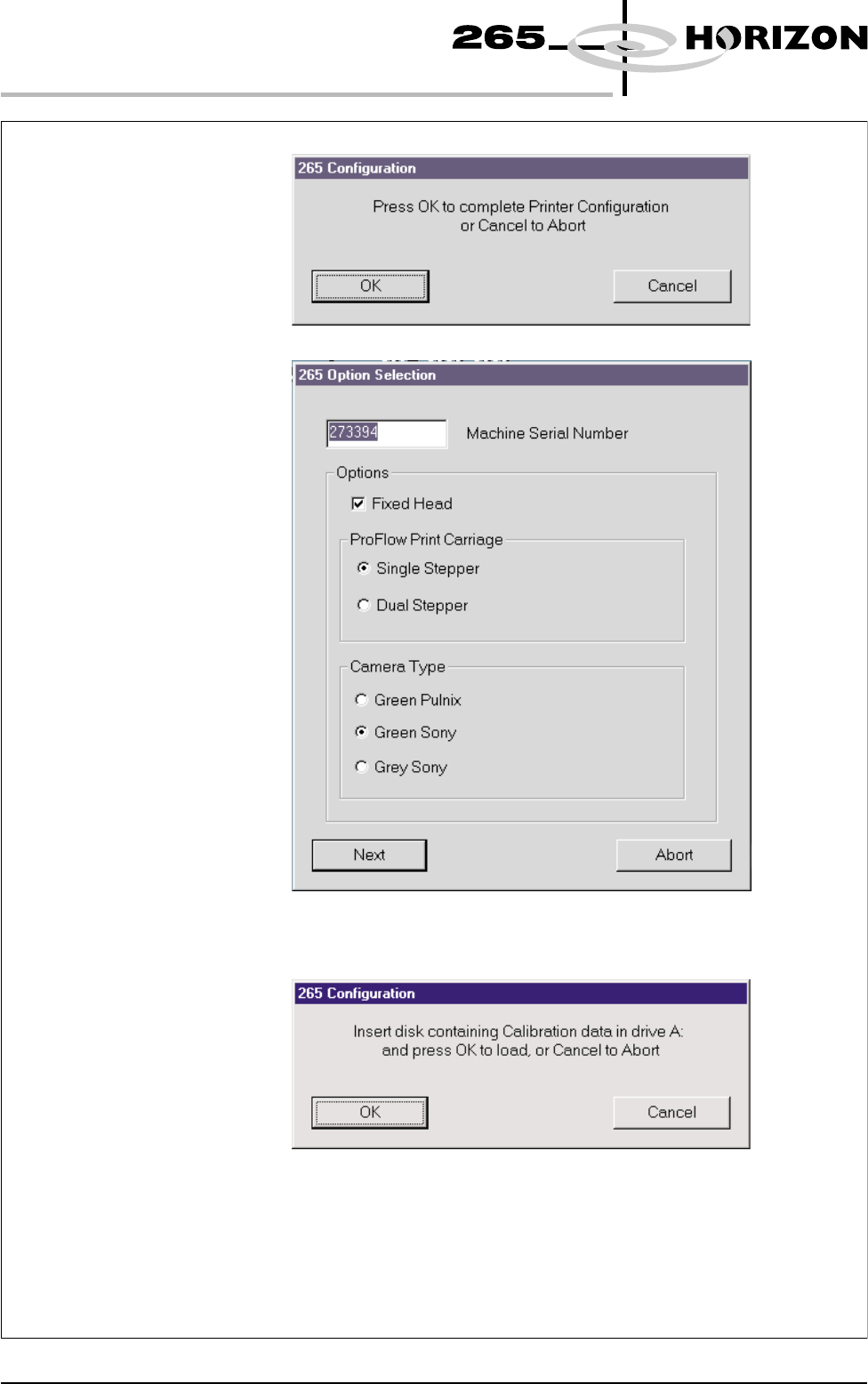

14. On completion the system restarts, the following window is displayed:
15. Enter the machine serial number. In the Options box, select ,
and the correct camera for the type fitted to the machine.
16. Select , the following window is displayed:
Fixed Head
Single Stepper
Next
17. Insert the diskette containing the Product and calibration data into
A: drive and press . The calibration data is now copied onto the
machine hard disk.
18. The machine now initializes.
19. The product files can now be copied onto the machine using Copy Data
function in Housekeeping (see Copy Data in Housekeeping Chapter).
OK
13. Select , the following window is displayed:OK
