5. Using the Next key (F4) select the Paste Dispense Speed.
Save
Next
Previous Incr. Decr. Exit
6. Using the Incr. and Decr. keys (F6 - F7) set the required speed.
Save Next Previous
Incr. Decr.
Exit
7. Press Exit (F8).
Save Next Previous Incr. Decr.
Exit
8. Press Exit (F8).
Mode Load
Data
Edit
Data
Setup
Squeegee
Change
Screen
Change
Tooling
Change
Language
Exit
Dispensing Paste at
Random Intervals
The operator can cycle the paste dispenser at random intervals and before a print
run in addition to any preprogrammed cycles.
To load paste prior to a print run:
1. Press Paste Load (F3).
Run Open
Cover
Paste
Load
Clean
Screen
Adjust Setup Monitor Maint.
2. Press Auto Dispense (F1).
Auto
Dispense
Manual
Load
Load
Cart.
Print
Directn
Exit
3. If the paste dispenser has sufficient paste the dispenser carries out an
automatic dispense, go to Step 13. If the paste dispenser is low on paste a
warning window is displayed. The warning window varies, depending on
the setting of the consumable action option in set preferences. If the set
preference is set to warn, continue with Step 4. If the set preference is set to
pause or suspend go to Step 8.
Software Version 6 User Manual 9.9
CONSUMABLE REPLENISHMENTS
PASTE LOADING

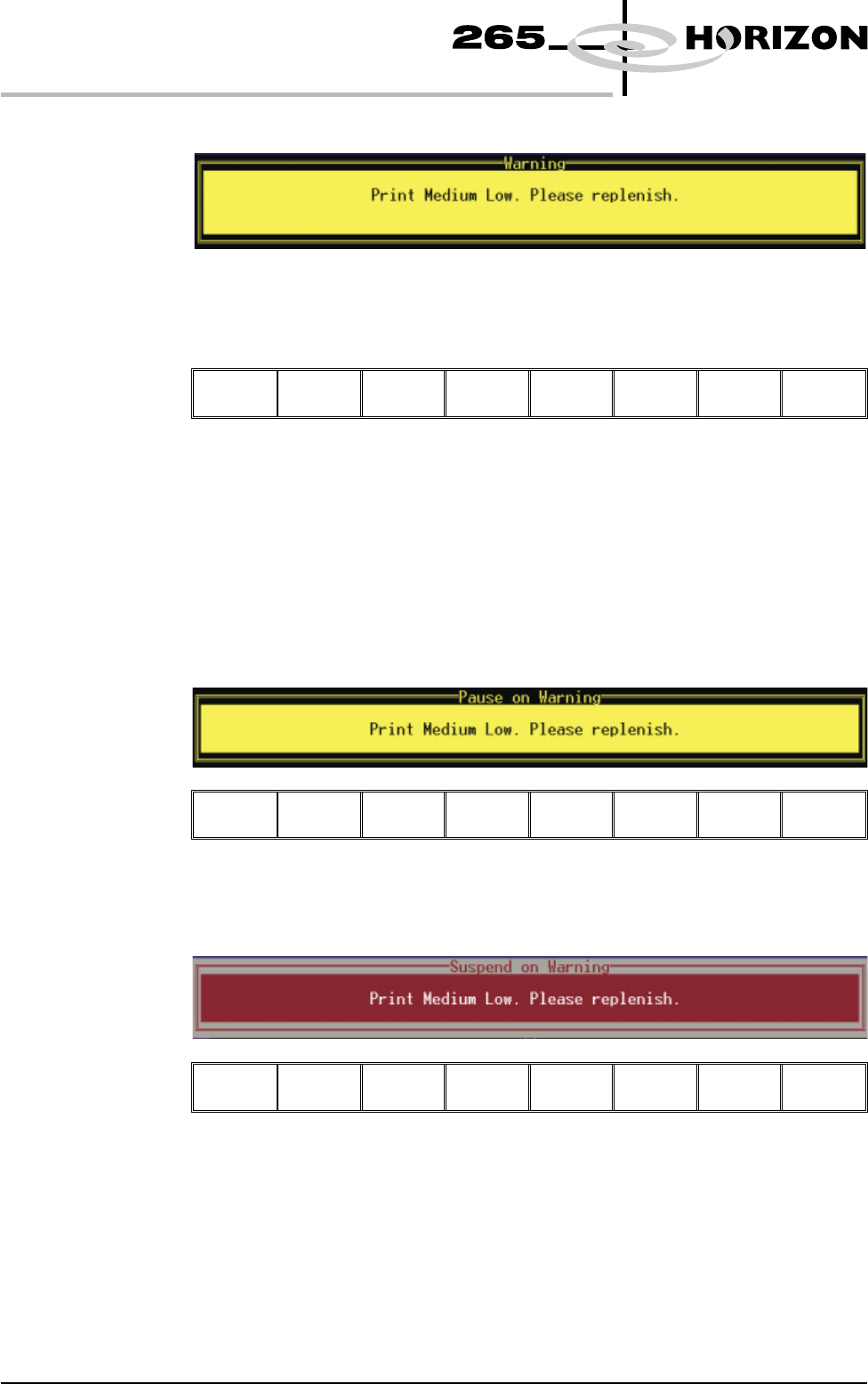

4. If the set preference is set to warn, the following window is displayed:
The tricoloured beacon shows amber/green.
5. Select Confirm (F1).
Confirm
6. To replace the paste cartridge carry out the Fitting a New Paste Cartridge
procedure, later in this section.
7. Repeat Steps 1, 2 and 13.
8. If the set preference is set to pause, the following window and menu bar is
displayed:
Refill
Paste
Cancel
If the set preference is set to suspend, the following window and menu bar is
displayed:
Refill
Paste
Cancel
In both cases the tricoloured beacon shows red.
9.10 User Manual Software Version 6
CONSUMABLE REPLENISHMENTS
PASTE LOADING
9. Select Refill Paste (F1).
Refill
Paste
Cancel
NOTE
If either the under screen cleaner paper or solvent are low or the Vortex
cleaning cassette has expired and are reported first, the refill paste option is
not displayed. In this case select Cancel until Refill Paste is displayed in the
menu bar.
The message ‘Select Load Cart to load the cartridge or exit to abort.’ is
displayed.
10. Select Load Cart. (F1).
Load
Cart.
Exit
The print carriage drives to the front of the machine and the dispenser rises to
the vertical position. A message is displayed on the screen ‘Open Cover
and Replace Paste Cartridge’.
11. To replace the paste cartridge carry out Steps 3-10 of Fitting a New Paste
Cartridge procedure, later in this section.
12. Repeat Steps 1, 2 and 13.
13. After the dispense routine has been completed, press Exit (F8).
Auto
Dispense
Manual
Load
Load
Cart.
Print
Directn
Exit
To Load Paste
During a Print Run
1. Press Paste Load (F3).
End
Run
Stop
Cycle
Paste
Load
Clean
Screen
Adjust Knead
Paste
2. Press Auto Dispense (F1).
Auto
Dispense
Manual
Load
Load
Cart.
Print
Directn
Exit
Software Version 6 User Manual 9.11
