3. If the paste dispenser has sufficient paste the dispenser carries out an
automatic dispense, go to Step 22. If the paste dispenser is low on paste a
warning window is displayed. The warning window varies, depending on
the setting of the consumable action option in set preferences. If the set
preference is set to warn, continue with Step 4. If the set preference is set to
pause go to Step 10. If the set preference is set to suspend go to Step 16.

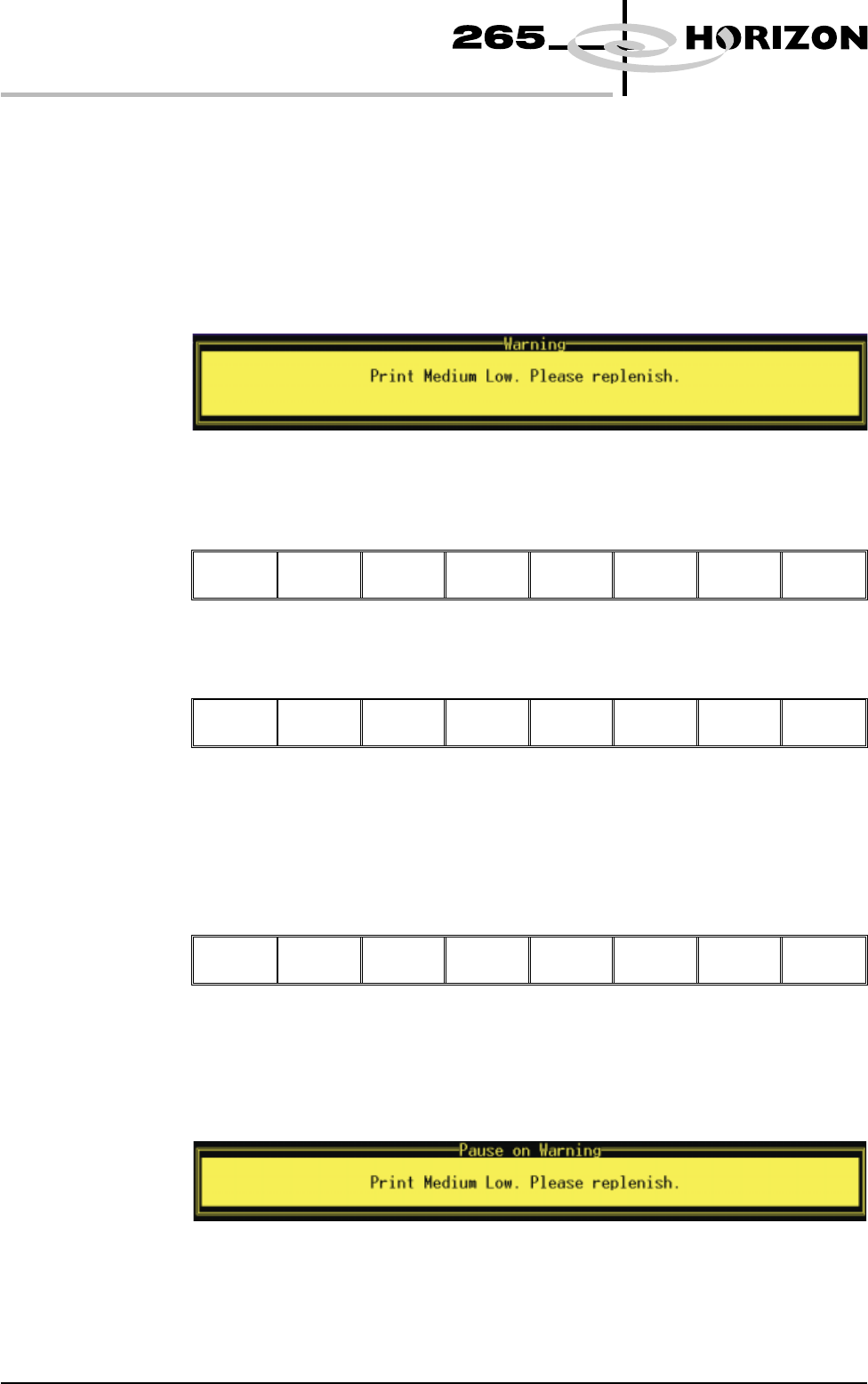

4. If the set preference is set to warn, the following window is displayed:
The tricoloured beacon shows amber/green.
5. Select Confirm (F1).
Confirm
6. Select End Run (F1).
End
Run
Stop
Cycle
Paste
Load
Clean
Screen
Adjust Knead
Paste
7. To replace the paste cartridge carry out Fitting a New Paste Cartridge
procedure, later in this section.
8. Select Run (F1).
Run
Open
Cover
Paste
Load
Clean
Screen
Adjust Setup Monitor Maint.
9. Repeat Steps 1, 2 and 22.
10. If the set preference is set to pause, the following window is displayed:
The tricoloured beacon shows red.
9.12 User Manual Software Version 6
CONSUMABLE REPLENISHMENTS
PASTE LOADING
11. Select Refill Paste (F1).
Refill
Paste
Defer
The message ‘Select Load Cart to load the cartridge or exit to abort.’ is
displayed.
NOTE
Select Defer to continue printing without replacing the paste cartridge.
12. Select Load Cart. (F1).
Load
Cart.
Exit
The message ‘Open the cover and load the new paste cartridge then close
Cover, press System Button and press Continue’ is displayed.
13. Carry out Steps 3-9 of Fitting a New Paste Cartridge procedure, later in this
section.
14. Select Continue (F1).
Continue
Open
Cover
15. Go to Step 21.

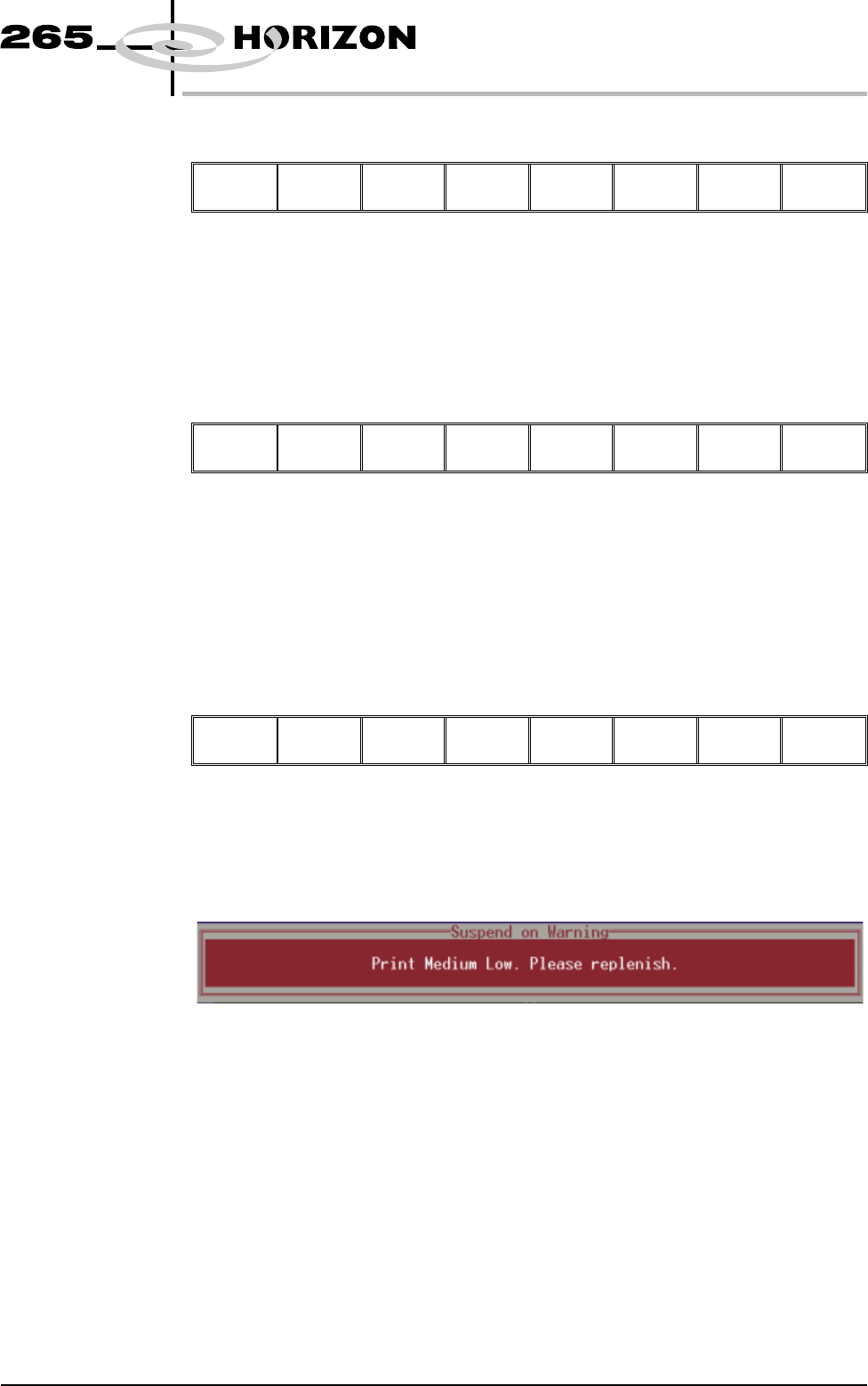

16. If the set preference is set to suspend, the following window is displayed:
The tricoloured beacon shows red.
Software Version 6 User Manual 9.13
CONSUMABLE REPLENISHMENTS
PASTE LOADING
17. Select Refill Paste (F1).
Refill
Paste
End
Run
The message ‘Select Load Cart to load the cartridge or exit to abort.’ is
displayed.
NOTE
Select End Run to terminate the print run without replacing the paste
cartridge.
18. Select Load Cart. (F1).
Load
Cart.
Exit
The message ‘Open the cover and load the new paste cartridge then close
Cover, press System Button and press Continue’ is displayed.
19. Carry out Steps 3-9 of Fitting a New Paste Cartridge procedure, later in this
section.
20. Select Continue (F1).
Continue
Open
Cover
21. Select Auto Dispense (F1).
Auto
Dispense
Manual
Load
Load
Cart.
Print
Directn
Exit
22. After the dispense routine has been completed, press Exit (F8).
Auto
Dispense
Manual
Load
Load
Cart.
Print
Directn
Exit
