17. Select Refill Paste (F1). Refill Paste End Run The message ‘Select Load Cart to load the cartridge or exit to abort.’ is displayed. NOTE Select End Run to terminate the print run without replacing the paste cartridge…
11. Select Refill Paste (F1).
Refill
Paste
Defer
The message ‘Select Load Cart to load the cartridge or exit to abort.’ is
displayed.
NOTE
Select Defer to continue printing without replacing the paste cartridge.
12. Select Load Cart. (F1).
Load
Cart.
Exit
The message ‘Open the cover and load the new paste cartridge then close
Cover, press System Button and press Continue’ is displayed.
13. Carry out Steps 3-9 of Fitting a New Paste Cartridge procedure, later in this
section.
14. Select Continue (F1).
Continue
Open
Cover
15. Go to Step 21.
16. If the set preference is set to suspend, the following window is displayed:
The tricoloured beacon shows red.
Software Version 6 User Manual 9.13
CONSUMABLE REPLENISHMENTS
PASTE LOADING
17. Select Refill Paste (F1).
Refill
Paste
End
Run
The message ‘Select Load Cart to load the cartridge or exit to abort.’ is
displayed.
NOTE
Select End Run to terminate the print run without replacing the paste
cartridge.
18. Select Load Cart. (F1).
Load
Cart.
Exit
The message ‘Open the cover and load the new paste cartridge then close
Cover, press System Button and press Continue’ is displayed.
19. Carry out Steps 3-9 of Fitting a New Paste Cartridge procedure, later in this
section.
20. Select Continue (F1).
Continue
Open
Cover
21. Select Auto Dispense (F1).
Auto
Dispense
Manual
Load
Load
Cart.
Print
Directn
Exit
22. After the dispense routine has been completed, press Exit (F8).
Auto
Dispense
Manual
Load
Load
Cart.
Print
Directn
Exit
9.14 User Manual Software Version 6
CONSUMABLE REPLENISHMENTS
PASTE LOADING
Fitting a New Paste
Cartridge
It is necessary at intervals to fit a new paste cartridge into the paste dispenser. If
there is no cartridge in the dispenser or the cartridge is empty, the warning
window ‘Print Medium Low. Please Replenish.’ is displayed.
If the consumable action option in set preferences is set to suspend, the paste
dispenser is checked to ensure availabilily of paste, before allowing a print run to
start. If paste isn’t available the warning window ‘Print Medium Low. Please
Replenish.’ is displayed.
To replace the paste cartridge carry out the following:
1. Press Paste Load (F3).
Run Open
Cover
Paste
Load
Clean
Screen
Adjust Setup Monitor Maint.
2. Press Load Cart. (F4).
Auto
Dispense
Manual
Load
Load
Cart.
Print
Directn
Exit
The print carriage drives to the front of the machine and the dispenser rises to the
vertical position. A message is displayed on the screen ‘Open cover and
replace Paste Cartridge’.

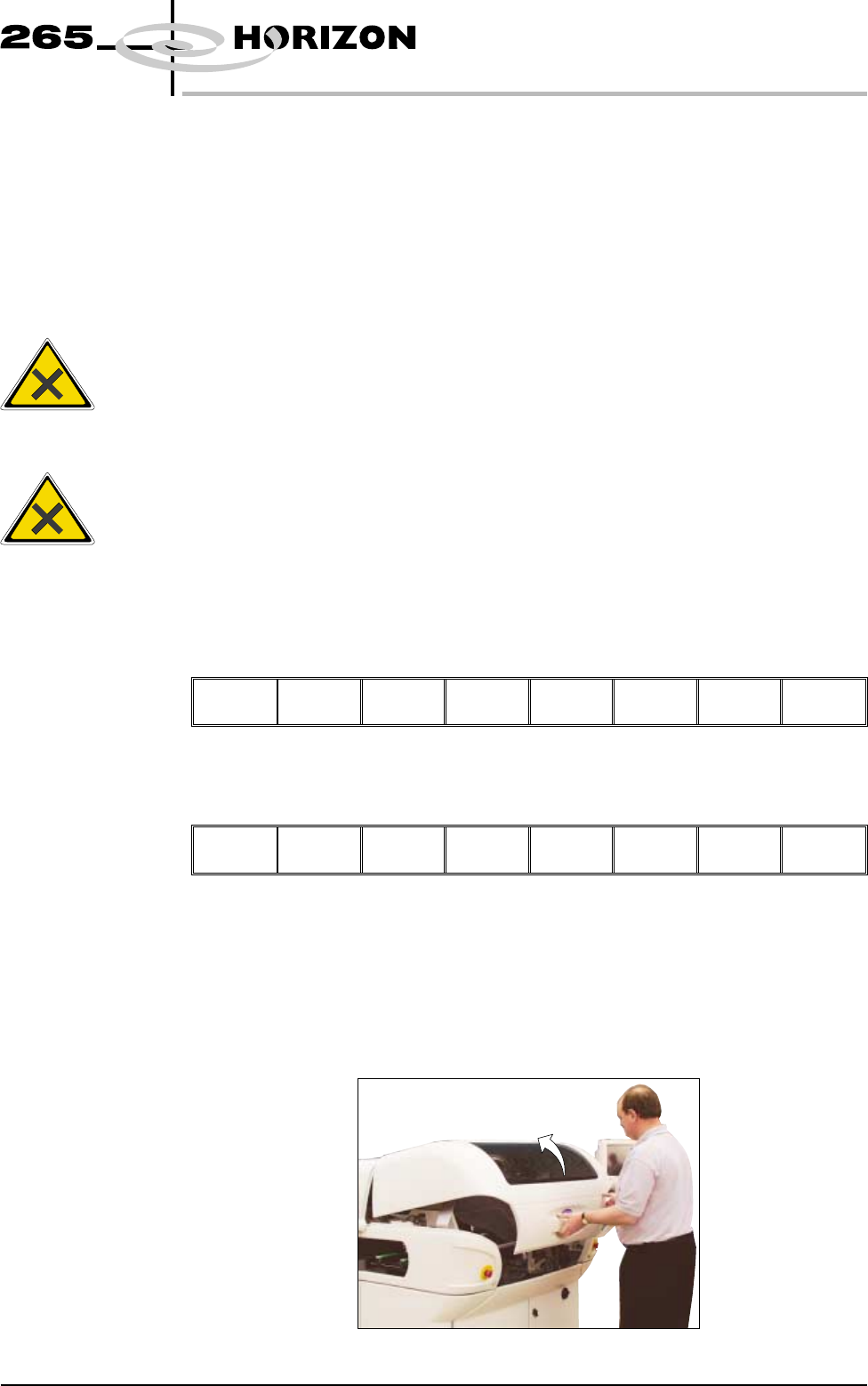

3. Open the front printhead cover.
Software Version 6 User Manual 9.15
CONSUMABLE REPLENISHMENTS
PASTE LOADING
WARNING
SOLDER PASTE AND SOLVENTS. WHEN USING OR HANDLINGAN
Y
SOLDER PASTE OR SOLVENT FORMULATION THE
MANUFACTURERS' RECOMMENDED SAFETY PRECAUTIONS
MUST BE STRICTLYADHERED TO.
WARNING
PROTECTIVE CLOTHING. APPROVED PROTECTIVE CLOTHIN
G
SHOULD BE WORN BY SOLDER PASTE AND SOLVENT HANDLERS
AT ALL TIMES TO ELIMINATE FUME INHALATION, EYE
CONTACT, SKIN CONTACTAND INGESTION.
