2. Select Confirm (F1). Confirm 3. Go to Step 17. 4. If the set preference is set to pause, the following window and menu bar is displayed: Cancel If the set preference is set to suspend, the following window and menu ba…
4. Use the Incr. and Decr. keys (F6 -F7) to set the required value of the selected
parameter.
Save Next Previous
Incr. Decr.
Exit
5. Repeat Steps 3 and 4 for all remaining parameters.
Save Next
Previous
Incr. Decr. Exit
6. Press Save (F2) on completion of parameter setup.
Save
Next Previous Incr. Decr. Exit
7. Press Exit (F8).
Save Next Previous Incr. Decr.
Exit
8. Press Exit (F8).
Mode Load
Data
Edit
Data
Setup
Squeegee
Change
Screen
Change
Tooling
Change
Language
Exit
Cleaning Cassette
and Solvent
Replenishment
The cleaning cassette and solvent replenishment can take place with the cleaner
unit in the printer. When the cleaning cassette or solvent needs replenishment a
warning window is automatically displayed on the monitor. The warning
window varies, depending on the setting of the consumable action option in set
preferences. The message in the warning window depends on whether the
cleaning cassette or solvent or both require replenishment. The procedure
varies, depending on whether the replenishment is prior to a print run or during a
print run.
Replenishment Prior to a Print Run:
If the set preference is set to warn, continue with Step 1. If the set preference is
set to pause or suspend go to Step 4.
1. If the set preference is set to warn, the following window is displayed:
The tricoloured beacon shows amber/green.
9.38 User Manual Software Version 6
CONSUMABLE REPLENISHMENTS
VORTEX UNDERSCREEN CLEANER
2. Select Confirm (F1).
Confirm
3. Go to Step 17.

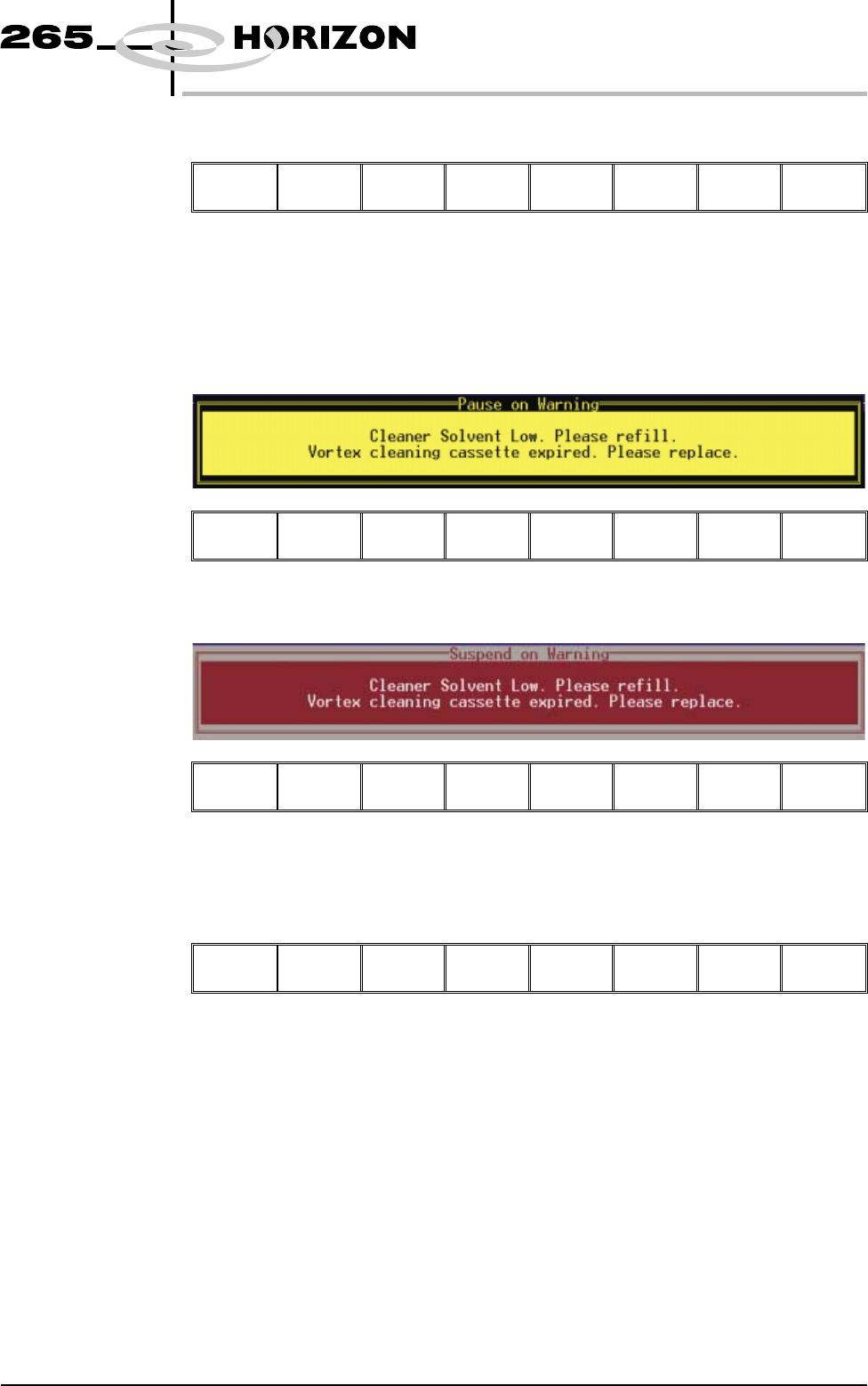

4. If the set preference is set to pause, the following window and menu bar is
displayed:
Cancel
If the set preference is set to suspend, the following window and menu bar is
displayed:
Cancel
In both cases the tricoloured beacon shows red.
5. Select Cancel (F8).
Cancel
6. Go to Step 17.
Replenishment During a Print Run:
If the set preference is set to warn, continue with Step 7. If the set preference is
set to pause go to Step 11. If the set preference is set to suspend go to Step 15.
Software Version 6 User Manual 9.39
CONSUMABLE REPLENISHMENTS
VORTEX UNDERSCREEN CLEANER
7. If the set preference is set to warn, the following window is displayed:
The tricoloured beacon shows amber/green.
8. Select Confirm (F1).
Confirm
9. Select End Run (F1).
End
Run
Stop
Cycle
Paste
Load
Clean
Screen
Adjust Knead
Paste
10. Go to Step 17.
11. If the set preference is set to pause, the following window is displayed:
The tricoloured beacon shows red.
12. Select Defer (F8).
Defer
The print run continues.
13. Select End Run (F1).
End
Run
Stop
Cycle
Paste
Load
Clean
Screen
Adjust Knead
Paste
14. Go to Step 17.
9.40 User Manual Software Version 6
CONSUMABLE REPLENISHMENTS
VORTEX UNDERSCREEN CLEANER
