22.Remove the screen. 23. Go to the Cleaning Cassette Replenishment section. Solvent Replenishment 9.42 User Manual Software Version 6 CONSUMABLE REPLENISHMENTS VORTEX UNDERSCREEN CLEANER W ARNING SOL VENT SOLUTION. DO N…

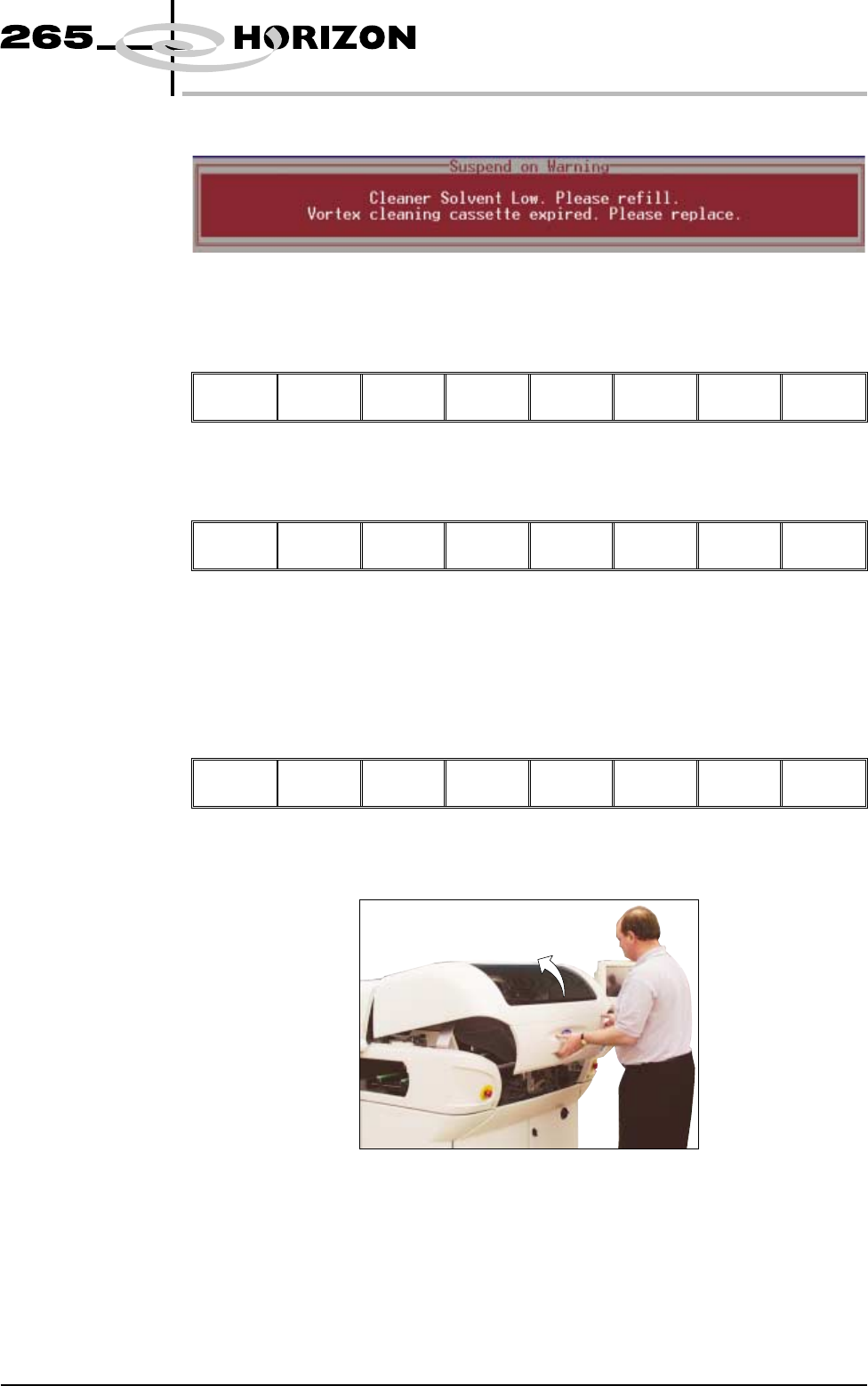

15. If the set preference is set to suspend, the following window is displayed:
The tricoloured beacon shows red.
16. Select End Run (F8).
End
Run
17. Press Open Cover (F2).
Run
Open
Cover
Paste
Load
Clean
Screen
Adjust Setup Monitor Maint.
18. If the Vortex cleaning cassette is to be replenished continue with Step 19. If
the solvent tank only is to be replenished go to Step 20.
19. Press Change Screen (F2).
Change
Screen
Board
Clamps
Prime
Paper
Prime
Solvent
Exit
20. Lift the front printhead cover.
21. If the Vortex cleaning is to be replenished continue with Step 22. If the
solvent tank only is to be replenished go to Solvent Replenishment section.
Software Version 6 User Manual 9.41
CONSUMABLE REPLENISHMENTS
VORTEX UNDERSCREEN CLEANER

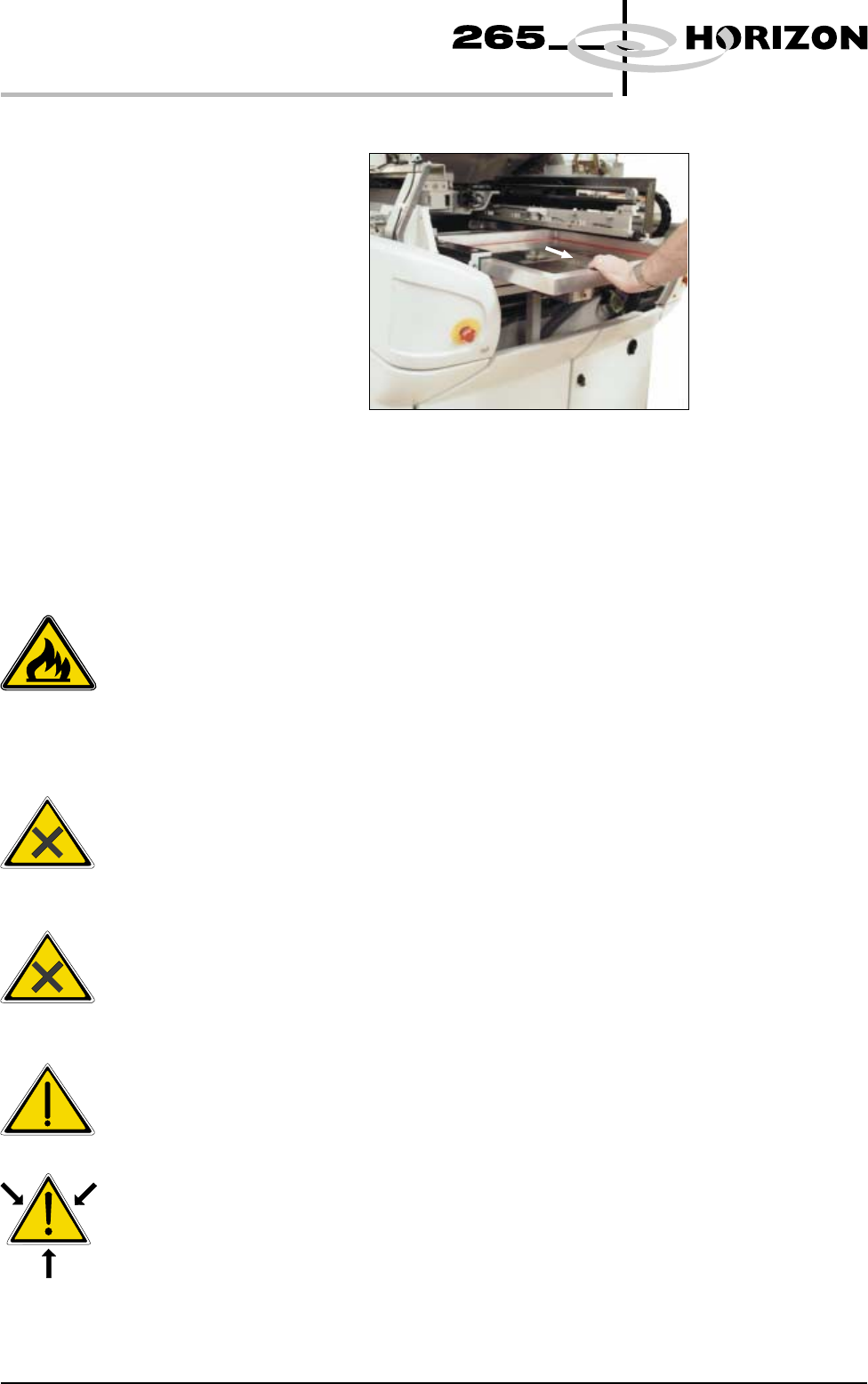

22.Remove the screen.
23. Go to the Cleaning Cassette Replenishment section.
Solvent
Replenishment
9.42 User Manual Software Version 6
CONSUMABLE REPLENISHMENTS
VORTEX UNDERSCREEN CLEANER
WARNING
SOLVENT SOLUTION. DO NOT MIX SOLVENT SOLUTIONS. FLUSH
THE SOLVENT TANK THOROUGHLY WHEN CHANGING TO
A
DIFFERENT SOLVENT SOLUTION.
WARNING
SOLVENT SPRAY. THE UNDERSCREEN CLEANER SPRAYS A FINE
JET OF SOLVENT SOLUTION ON TO THE CLEANER. APPROVED
PROTECTIVE CLOTHINGSHOULD BE WORN.
WARNING
PROTECTIVE CLOTHING. APPROVED PROTECTIVE CLOTHIN
G
SHOULD BE WORN BY SOLDER PASTE AND SOLVENT HANDLERS
AT ALL TIMES TO ELIMINATE FUME INHALATION, EYE
CONTACT, SKIN CONTACTAND INGESTION.
WARNING
SOLDER PASTE AND SOLVENTS. WHEN USING OR HANDLINGAN
Y
SOLDER PASTE OR SOLVENT FORMULATION THE
MANUFACTURERS' RECOMMENDED SAFETY PRECAUTIONS
MUST BE STRICTLYADHERED TO.
WARNING
RECOMMENDED SOLVENTS. ANY SOLVENTS USED MUST
COMPLY WITH LOCAL ENVIRONMENTAL GUIDELINES. DE
K
RECOMMEND USING SOLVENTS THAT ARE ENVIRONMENTALL
Y
FRIENDLY, IE CFC FREE AND WATER BASED. SOLVENTS USED
MUST HAVE FAST EVAPORATION RATES AND FLASHPOINT
SPECIFICATIONS GREATER THAN 39 C.°
1. Remove the solvent tank cap (1) from the solvent tank (2)..
2. Using a suitable container refill the tank and replace the cap.
3. Close the front printhead cover.
4. Press the System button.
5. Press Prime Solvent (F6) key.
Change
Screen
Board
Clamps
Prime
Solvent
Exit
The message ‘Press the two button control buttons to prime solvent.’ is
displayed.
Software Version 6 User Manual 9.43
CONSUMABLE REPLENISHMENTS
VORTEX UNDERSCREEN CLEANER
1
2
