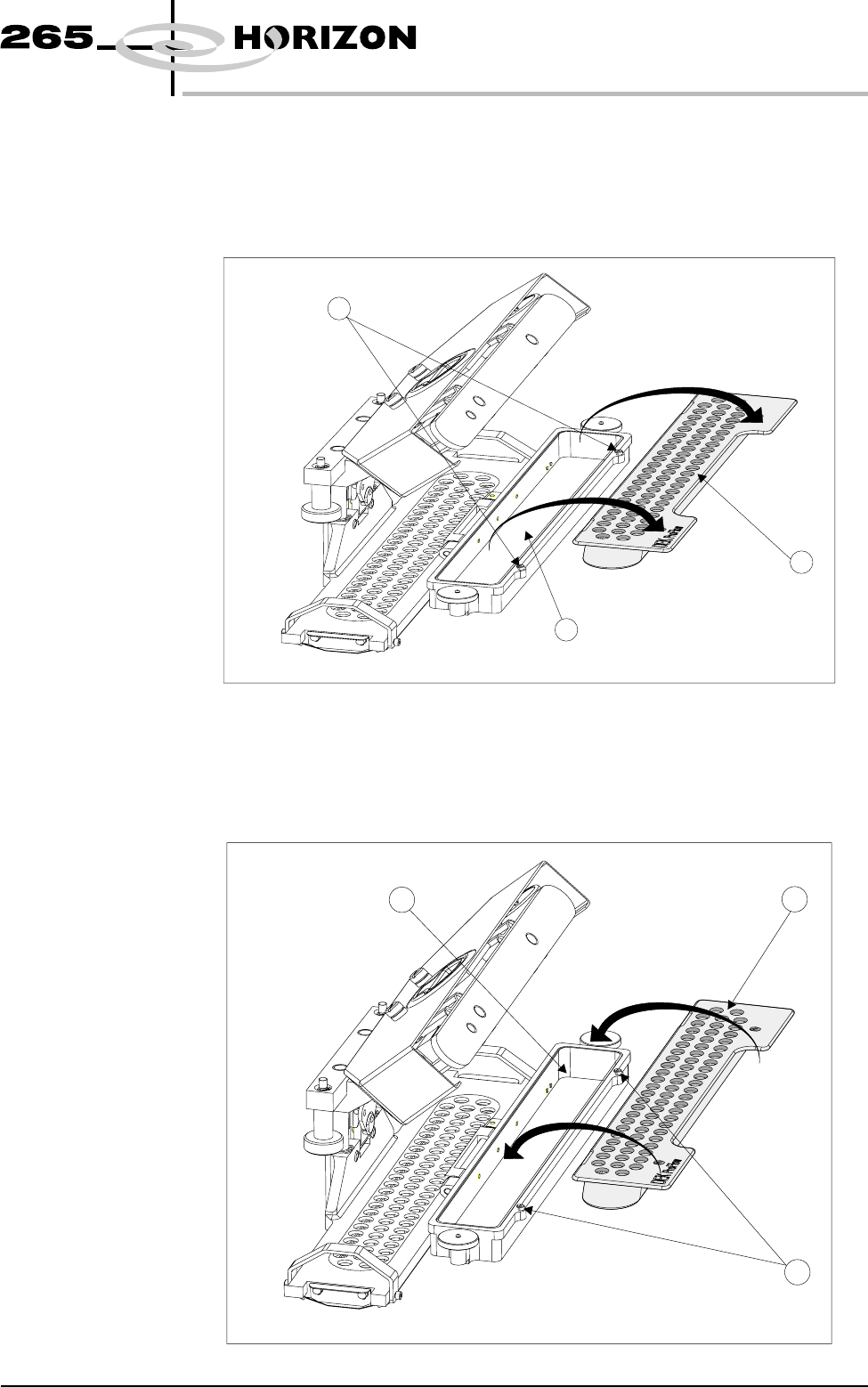

22. Carefully remove the empty paste cassette (1) from the carrier (2) by lifting
the paste cassette clear of the retaining pins (3) sited at each end of the carrier
unit.
NOTE
Numbers in brackets refer to figure below.
23. Dispose of the empty cassette in accordance with local authority guidelines.
24. Fit a new cassette (1) into the carrier recess (2) and secure into place with the
retaining pins (3).
NOTE
Numbers in brackets refer to figure below.
Software Version 6 User Manual 9.59
CONSUMABLE REPLENISHMENTS
PROFLOW
3
1
2
3
1
2

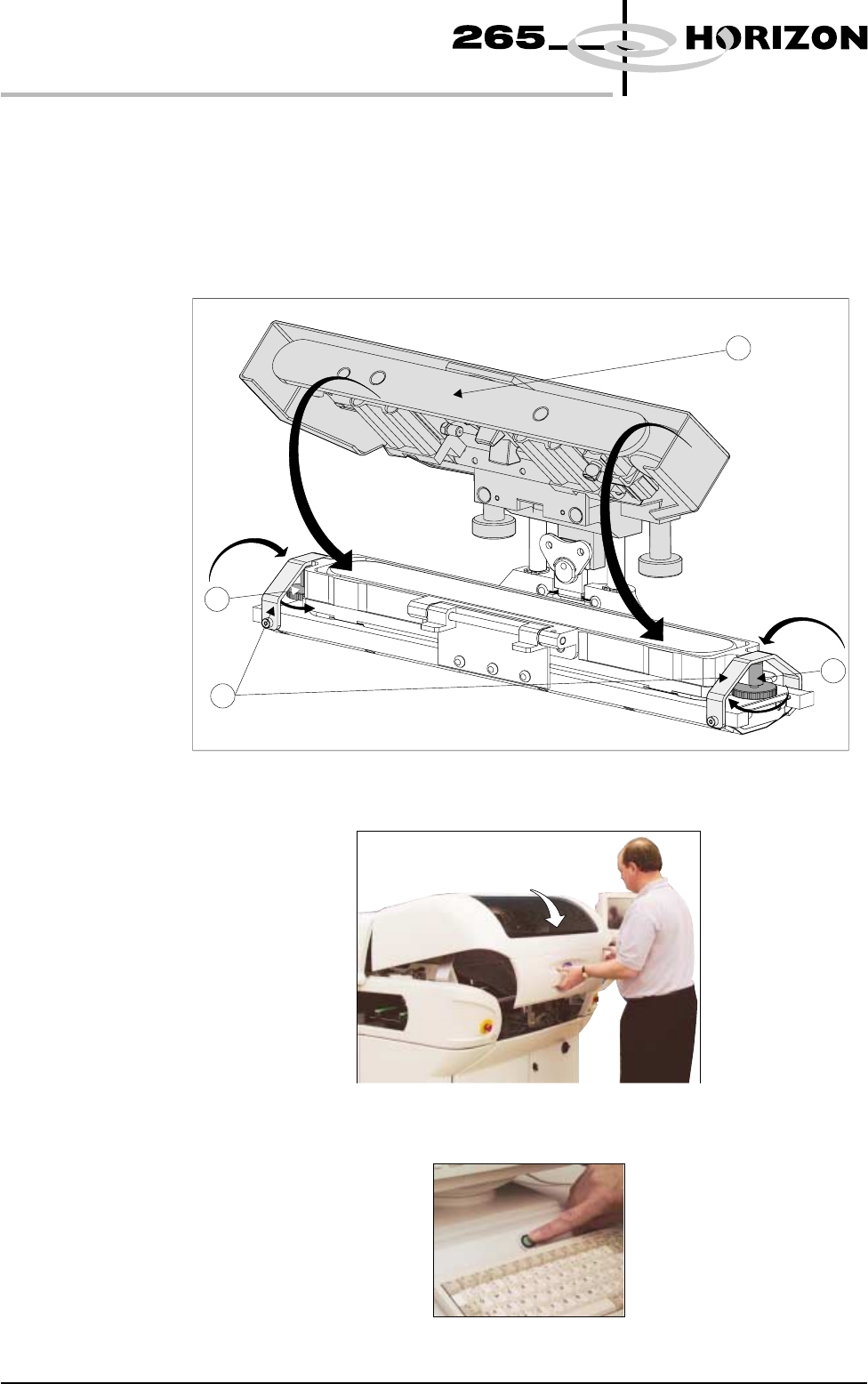

25. Remove the sealing foil from the top of the new paste cassette.
26. Hinge the clamp brackets (1) inwards to position the cassette onto the
transfer head, secure in place by tightening the thumbwheels (2).
27. Lower the pressure mechanism (3) in place until the latch engages.
NOTE
Numbers in brackets refer to figure below.
28. Close the front printhead cover.
29. Press the System button.
9.60 User Manual Software Version 6
CONSUMABLE REPLENISHMENTS
PROFLOW
2
2
1
3
30. Select Setup ProFlow (F4).
Mode Load
Data
Edit
Data
Setup
ProFlow
Change
Screen
Change
Tooling
Change
Language
Exit
31. Select Prime ProFlow (F6).
Change
ProFlow
Load
Cassette
Prime
ProFlow
Exit
If it is possible to carry out the prime ProFlow function the message
‘Performing knead off-image.’ is displayed. If it is not possible the
function is deferred until it is, ie at the start of a print stroke with a board
loaded.
32. Select Exit (F8).
Change
ProFlow
Load
Cassette
Prime
ProFlow
Exit
33. Select Exit (F8).
Mode Load
Data
Edit
Data
Setup
ProFlow
Change
Screen
Change
Tooling
Exit
During a Print Run When the ProFlow cassette needs replenishment a warning window is
automatically displayed on the monitor. The warning window varies, depending
on the setting of the consumable action option in set preference.
If the set preference is set to warn, continue with Step 1. If the set preference is
set to pause go to Step 6. If the set preference is set to suspend go to Step 11.
1. If the set preference is set to warn, the following window is displayed:
The tricoloured beacon shows amber/green.
2. Select Confirm (F1).
Confirm
Software Version 6 User Manual 9.61
CONSUMABLE REPLENISHMENTS
PROFLOW
