11. If the set preference is set to suspend, the following window is displayed: The tricoloured beacon shows red. 12. Select Refill Paste (F1). Refill Paste End Run The message ‘Open the cover and change the ProFlow cass…

100%1 / 378
3. Select End Run (F1).
End
Run
Stop
Cycle
Paste
Load
Clean
Screen
Adjust Knead
Paste
4. Carry out Steps 19-33 of Prior to a Print Run procedure, earlier in this
section.
5. Select Run (F1). The print run resumes.
Run
Head Knead
Paste
Clean
Screen
Adjust Setup Monitor Maint.

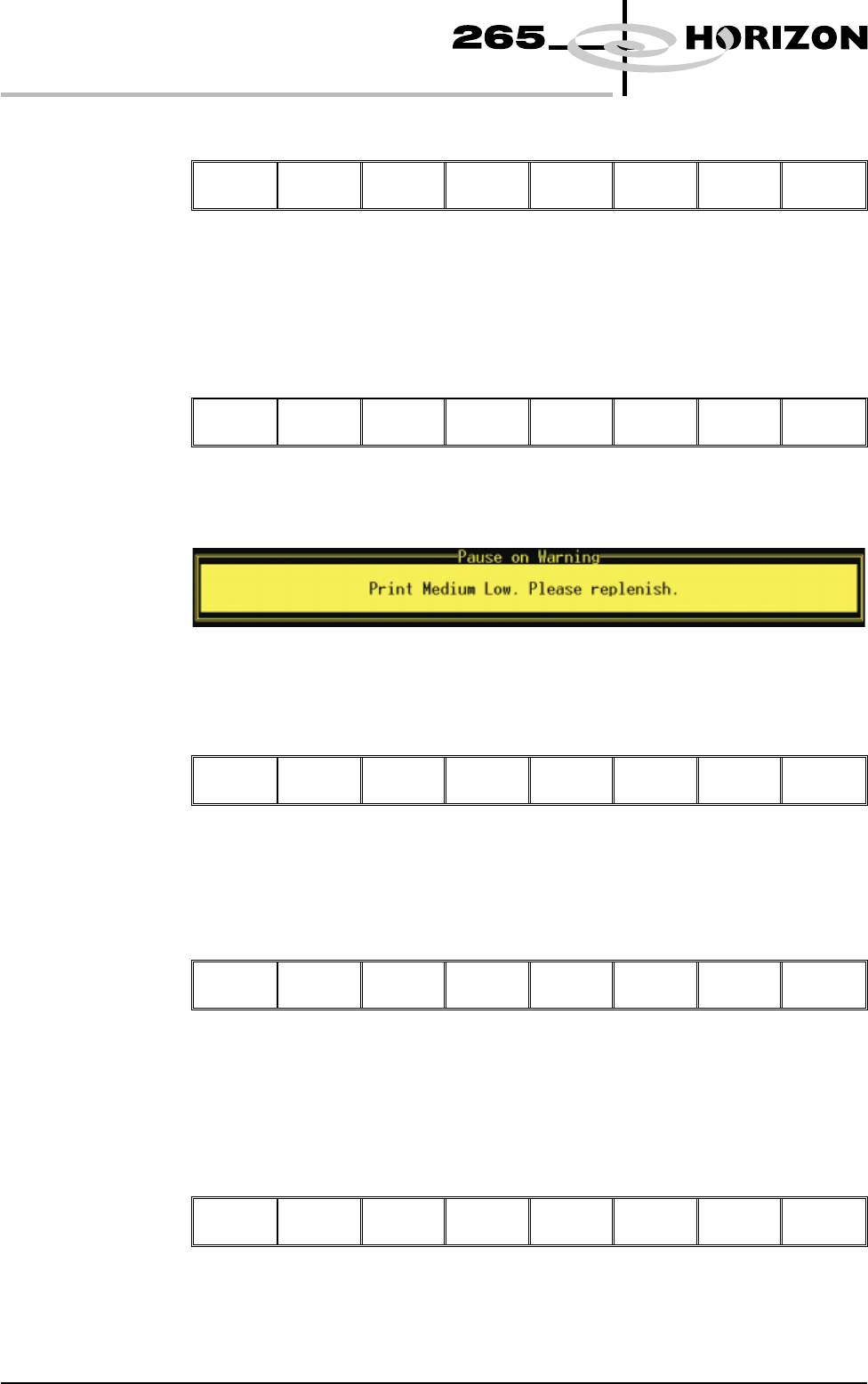

6. If the set preference is set to pause, the following window is displayed:
The tricoloured beacon shows red.
7. Select Refill Paste (F1).
Refill
Paste
Defer
The message ‘Open the cover and change the ProFlow cassette.’ is
displayed.
8. Select Open Cover (F2).
Continue
Open
Cover
9. Carry out Steps 19-33 of Prior to a Print Run procedure, earlier in this
section.
10. Select Continue (F1). The print run resumes.
Continue
Open
Cover
9.62 User Manual Software Version 6
CONSUMABLE REPLENISHMENTS
PROFLOW

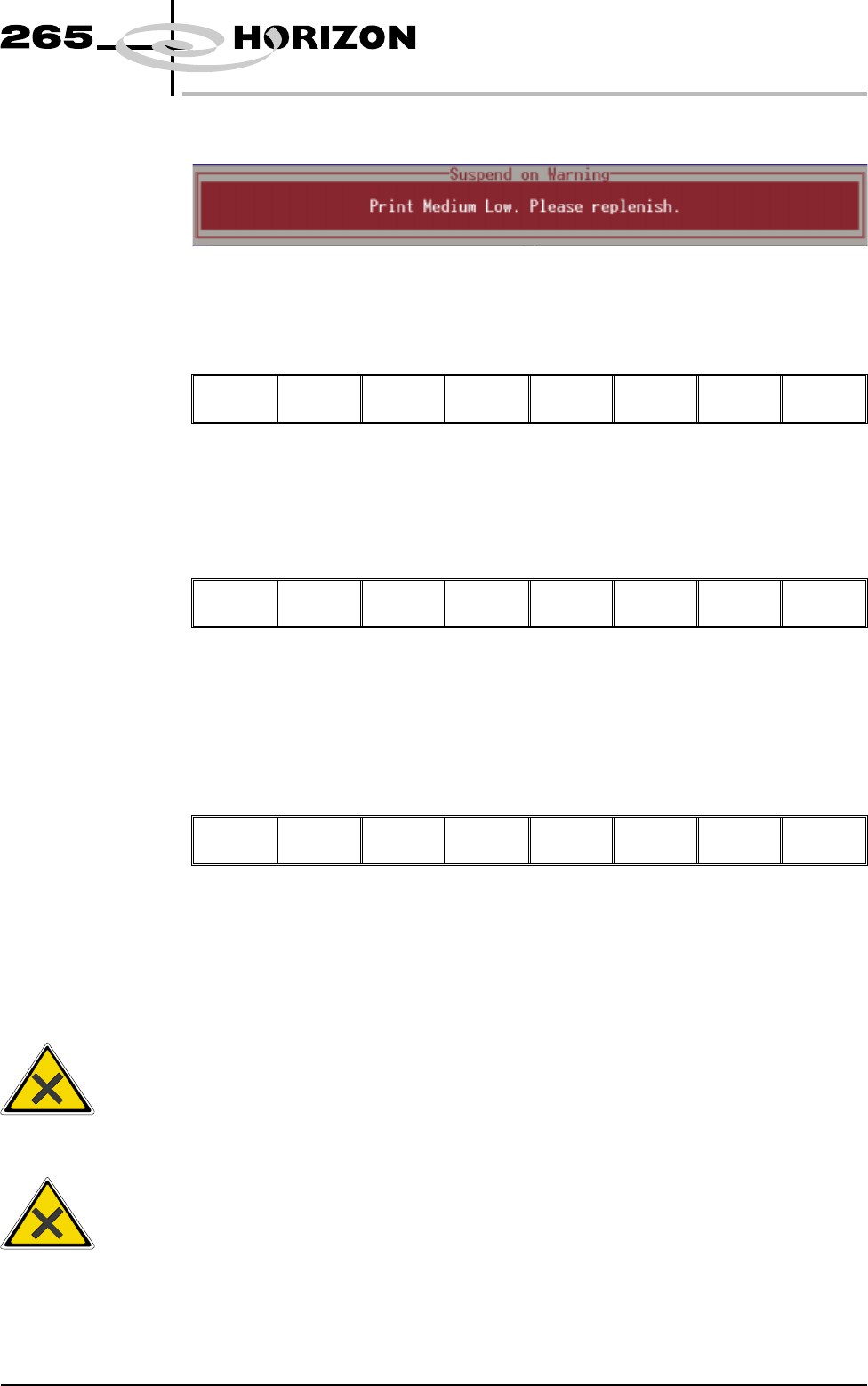

11. If the set preference is set to suspend, the following window is displayed:
The tricoloured beacon shows red.
12. Select Refill Paste (F1).
Refill
Paste
End
Run
The message ‘Open the cover and change the ProFlow cassette.’ is
displayed.
13. Select Open Cover (F2).
Continue
Open
Cover
14. Carry out Steps 19-33 of Prior to a Print Run procedure, earlier in this
section.
15. Select Continue (F1). The print run resumes.
Continue
Open
Cover
Paste
Retention System
Replacement
Due to wear over prolonged periods, it is necessary to replace the wiper foils and
end retainers (skis). An obvious indication of blade deterioration is print
medium left deposited on the screen after a print cycle.
Replace the wiper foils and end retainers (skis) as follows:
Software Version 6 User Manual 9.63
CONSUMABLE REPLENISHMENTS
PROFLOW
WARNING
SOLDER PASTE AND SOLVENTS. WHEN USING OR HANDLINGAN
Y
SOLDER PASTE OR SOLVENT FORMULATION THE
MANUFACTURERS' RECOMMENDED SAFETY PRECAUTIONS
MUST BE STRICTLYADHERED TO.
WARNING
PROTECTIVE CLOTHING. APPROVED PROTECTIVE CLOTHIN
G
SHOULD BE WORN BY SOLDER PASTE AND SOLVENT HANDLERS
AT ALL TIMES TO ELIMINATE FUME INHALATION, EYE
CONTACT, SKIN CONTACTAND INGESTION.
1. Press Setup (F6).
Run Open
Cover
Knead
Paste
Clean
Screen
Adjust
Setup
Monitor Maint.
2. Press Setup ProFlow (F4).
Mode Load
Data
Edit
Data
Setup
ProFlow
Change
Screen
Change
Tooling
Change
Language
Exit
3. Press Change ProFlow (F1).
Change
ProFlow
Load
Cassette
Prime
ProFlow
Exit
The message ‘Replace ProFlow Cover Plate then Close Cover and Press
Continue’ is displayed.
4. Open the front printhead cover.
5. Fit the paste cover to the underside of the ProFlow transfer head unit.
6. Release the latch on the front of the pressure mechanism and raise the
mechanism forwards and upwards to engage the spring locking device.
7. Turn the rotary action ‘J’ latch anti-clockwise to release the transfer head
unit from the pressure mechanism. Lift the rotary action ‘J’ latch clear of the
transfer head chassis dowel to enable the transfer head unit to be lowered
from the two interface mounting rods.
