11. Select Exit (F8). Exit 12. Select Yes (F1). Yes Remove Cover The message ‘The ProFlow unit will be placed in the REAR envelope’ is displayed. 13. If the ProFlow unit is required to be placed in another envelope conti…

100%1 / 378
6. Select Remove Cover (F8).
Yes
Remove
Cover
The message ‘Open the printer cover and remove the ProFlow unit’s
base cover’ is displayed.

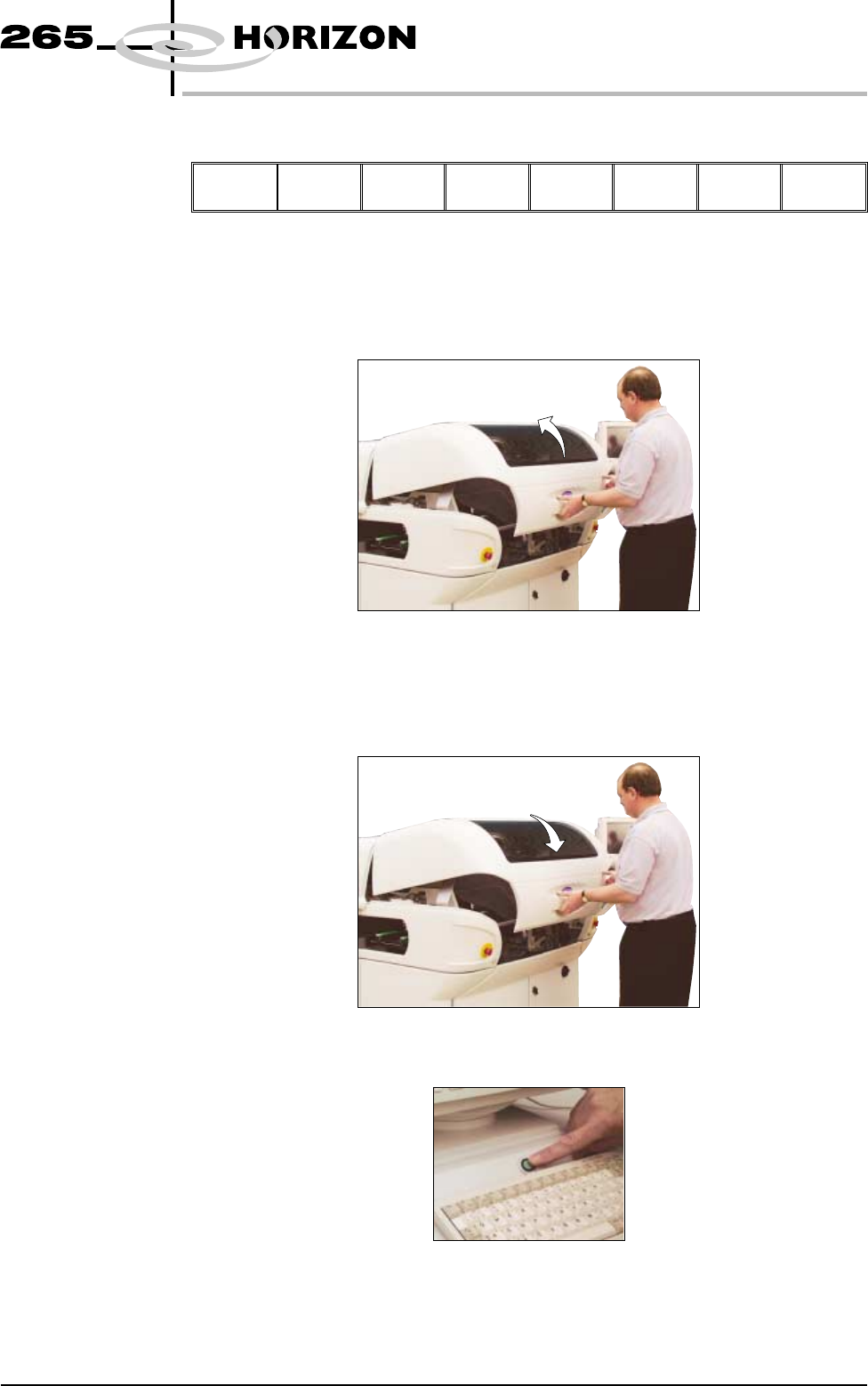

7. Open the front printhead cover.
8. Remove the ProFlow unit’s base cover.
9. Close the front printhead cover.
10. Press the System button.
Software Version 6 User Manual 9.71
CONSUMABLE REPLENISHMENTS
PROFLOW
11. Select Exit (F8).
Exit
12. Select Yes (F1).
Yes
Remove
Cover
The message ‘The ProFlow unit will be placed in the REAR envelope’ is
displayed.
13. If the ProFlow unit is required to be placed in another envelope continue with
Step 14. If the ProFlow unit is required to be placed in the machine preferred
envelope go to Step 18.
NOTE
The ProFlow unit needs to be in the rear envelope to replenish the ProFlow
transfer head.
14. Select Select Another (F8).
Proceed
Select
Another
The following window is displayed:
15. Use the Next or Previous keys (F4 or F5) to highlight Front.
Use
Next Previous
Exit
16. Select Use (F1).
Use
Next Previous Exit
17. Select Exit (F8).
Use Next Previous
Exit
9.72 User Manual Software Version 6
CONSUMABLE REPLENISHMENTS
PROFLOW
Preferred Envelope
REAR
FRONT
18. Select Proceed (F1).
Proceed
Select
Another
The ProFlow unit is placed in contact with the screen.

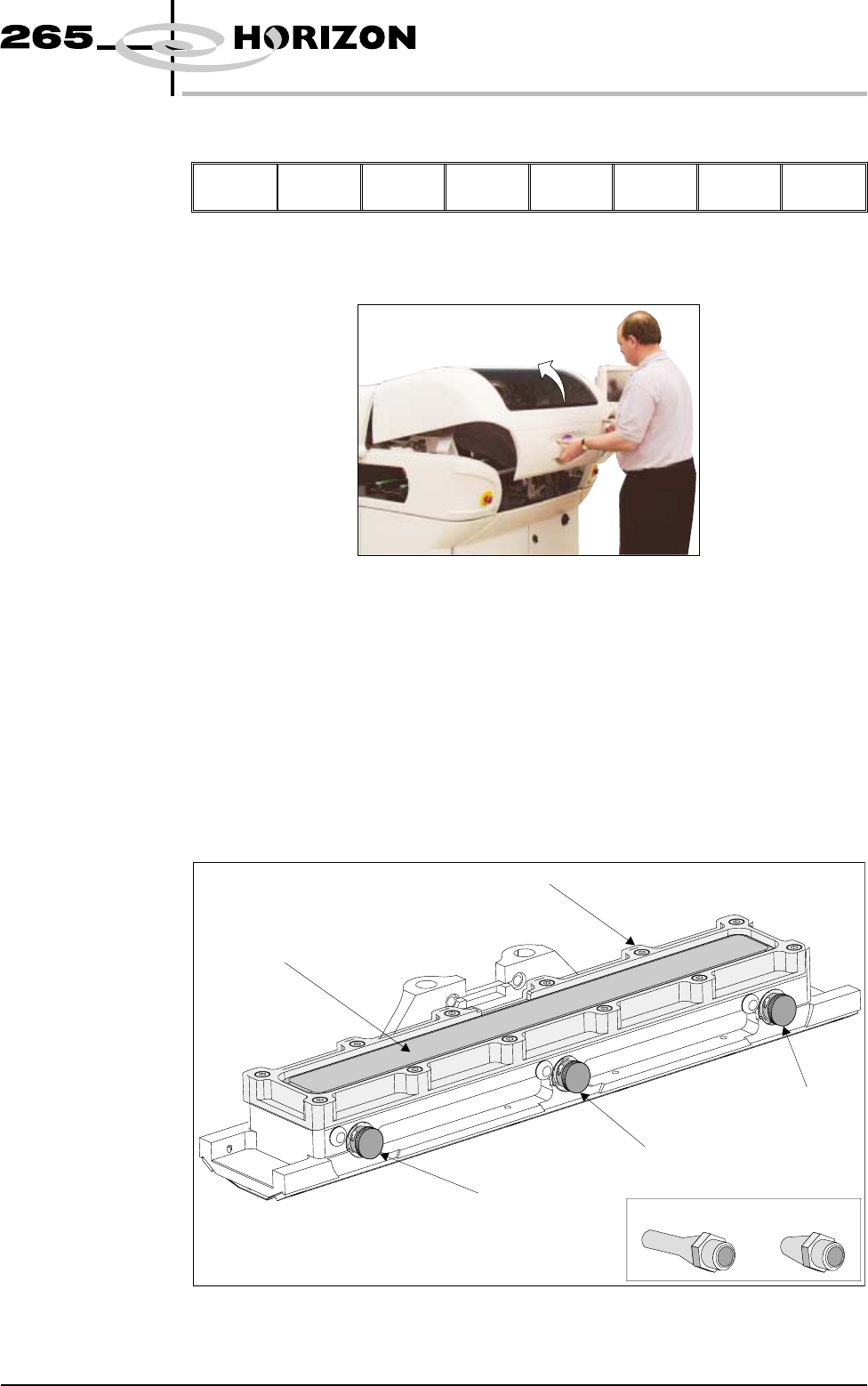

19. Open the front printhead cover.
Recharging
1.
Ensure that the ProFlow pressure mechanism is in the raised position (to
expose transfer head diaphragm).
2. Remove the centre filling port bayonet cap.
NOTE
The ITC transfer head has one central filling port only.
3. Using either a general purpose mastic gun or the optional pneumatic paste
gun (with a standard paste cartridge loaded). Push the nozzle of the gun into
the centre filling port of the ProFlow transfer head (see figure below).
Software Version 6 User Manual 9.73
CONSUMABLE REPLENISHMENTS
PROFLOW
Filling Port
Bayonet Cap
Diaphragm
Diaphragm Retainer
Recharging Nozzles
Filling Port
Bayonet Cap
Filling Port
Bayonet Cap
