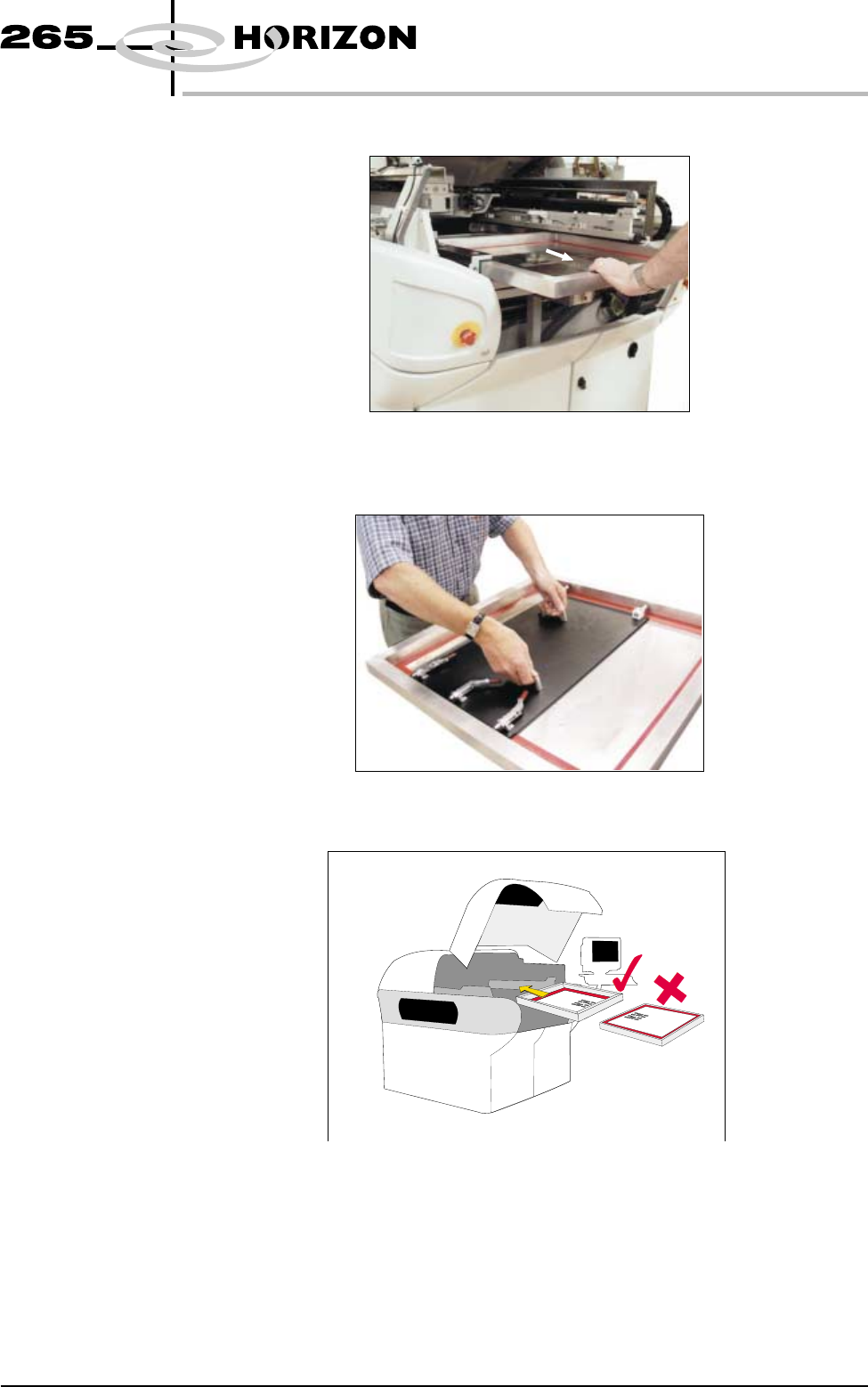

27. Remove the stencil.
28. Release the toggle levers amd remove the FormFlex setup plate from the
stencil.
29. Refit the stencil, ensuring the correct orientation.
Software Version 6 User Manual 1.23
MACHINE PROGRAMMING
STAGE 4C
30. Close the front printhead cover.
31. Press the System button.
32. Select Change Screen (F5).
Mode Load
Data
Edit
Data
Setup
Squeegee
Change
Screen
Change
Tooling
Change
Language
Exit
33. Continue with either of the following stages:
•
Stage 4A - Fit Squeegees
•
Stage 4B - ProFlow Setup
34. Go to Stage 6.
1.24 User Manual Software Version 6
MACHINE PROGRAMMING
STAGE 4C
STAGE 5A
Tooling Setup -
Magnetic Pillars
Board Stop Setting up the board stop position is automatically done using the board
dimensions previously set in the board parameter file. If adjustment is necessary
proceed as follows:
1. Select Change Tooling (F6).
Mode Load
Data
Edit
Data
Setup
Squeegee
Change
Screen
Change
Tooling
Change
Language
Exit
The print carriage and the under screen cleaner are moved to the rear.
The Change Tooling Parameters window is displayed:
NOTE
If the remote board stop is fitted the Board Stop X and Board Stop Y parameters
are replaced by Remote Board Stop X.
These parameters are automatically calculated from the board size parameters
that were entered in the product file. If they need adjustment to re-position the
board stop for any reason, ie any routing on the board edge or a badly positioned
image on the screen, this can be done now.
2. Select Adjust (F1).
Adjust
Open
Cover
Home
Cleaner
Board
Stop
Full
Width
Load
Width
Print
Height
Exit
3. Use the Next and Previous keys (F4 - F5) to highlight each parameter.
Save
Next Previous
Incr. Decr. Exit
Software Version 6 User Manual 1.25
MACHINE PROGRAMMING
STAGE 5A
Change Tooling Parameters
BOARD WIDTH
BOARD STOP X
BOARD STOP Y
216.0
125.0
142.6
mm
mm
mm
