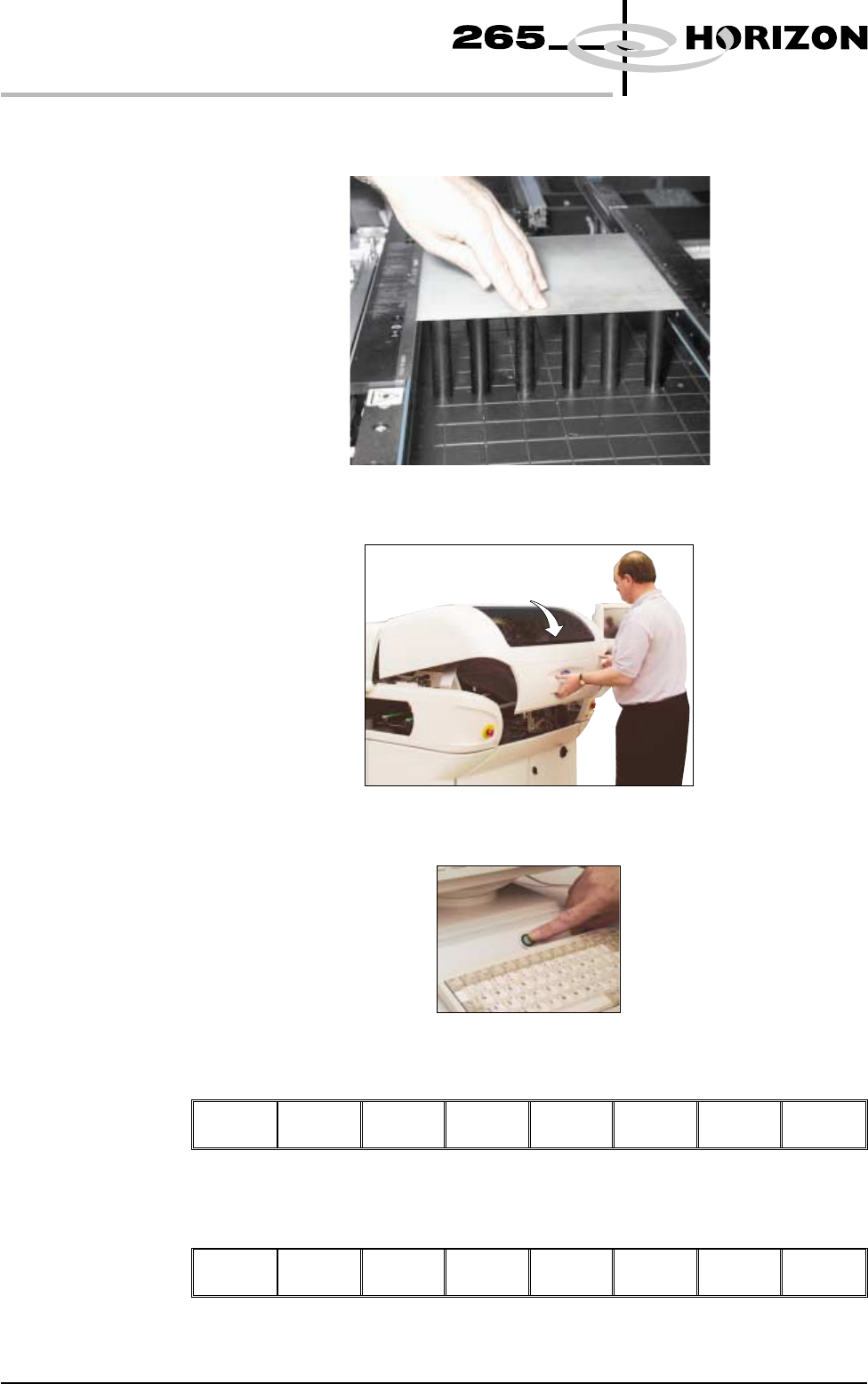

28. Check that the setup of the tooling is adequate for the board, adjust as
necessary.
29. Close the front printhead cover.
30. Press the System button.
31. Select Exit (F8).
Adjust Change
Screen
Board
Clamps
Set
Stop
Exit
32. Select Home Position (F7).
Open
Cover
Home
Position
Exit
1.32 User Manual Software Version 6
MACHINE PROGRAMMING
STAGE 5A
33. Select Open Cover (F2).
Adjust
Open
Cover
Remove
Cleaner
Board
Stop
Full
Width
Load
Width
Print
Height
Exit
34. Lift the front printhead cover.
35. Select Board Clamps (F3), to open the clamps.
Adjust
Board
Clamps
Set
Stop
Exit
36. Remove the board from the rails.
37. Load the appropriate stencil for the product file loaded, ensuring the correct
orientation of the stencil.
Software Version 6 User Manual 1.33
MACHINE PROGRAMMING
STAGE 5A

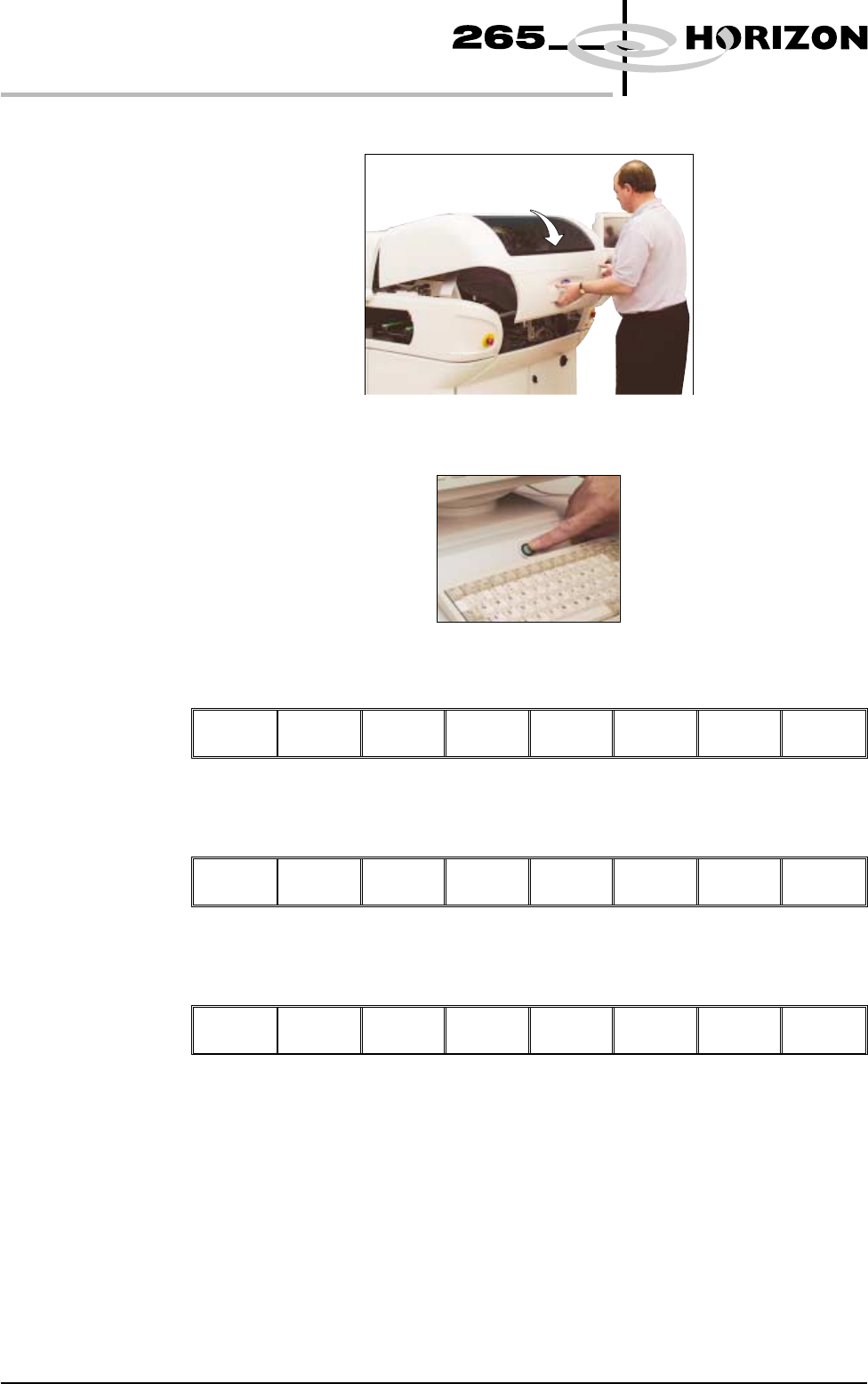

38. Close the front printhead cover.
39. Press the System button.
40. Select Change Screen (F2).
Adjust
Change
Screen
Board
Clamps
Set
Stop
Exit
41. Select Exit (F8).
Adjust Change
Screen
Board
Clamps
Set
Stop
Exit
42. Select Exit (F8).
Adjust Open
Cover
Remove
Cleaner
Board
Stop
Full
Width
Load
Width
Print
Height
Exit
43. Go to Stage 6.
1.34 User Manual Software Version 6
MACHINE PROGRAMMING
STAGE 5A
