12. Press the System button.
13. Select Home Cleaner (F3).
Adjust Open
Cover
Home
Cleaner
Board
Stop
Board
Width
Load
Width
Print
Height
Exit
14. Select Board Width (F5).
Adjust Open
Cover
Remove
Cleaner
Board
Stop
Board
Width
Load
Width
Print
Height
Exit
15. Select Board Stop (F4).
Adjust Open
Cover
Remove
Cleaner
Board
Stop
Full
Width
Load
Width
Print
Height
Exit
The camera moves to the board stop position. The board stop on the camera
extends.
16. Select Open Cover (F2).
Adjust
Open
Cover
Remove
Cleaner
Home
Camera
Full
Width
Load
Width
Print
Height
Exit

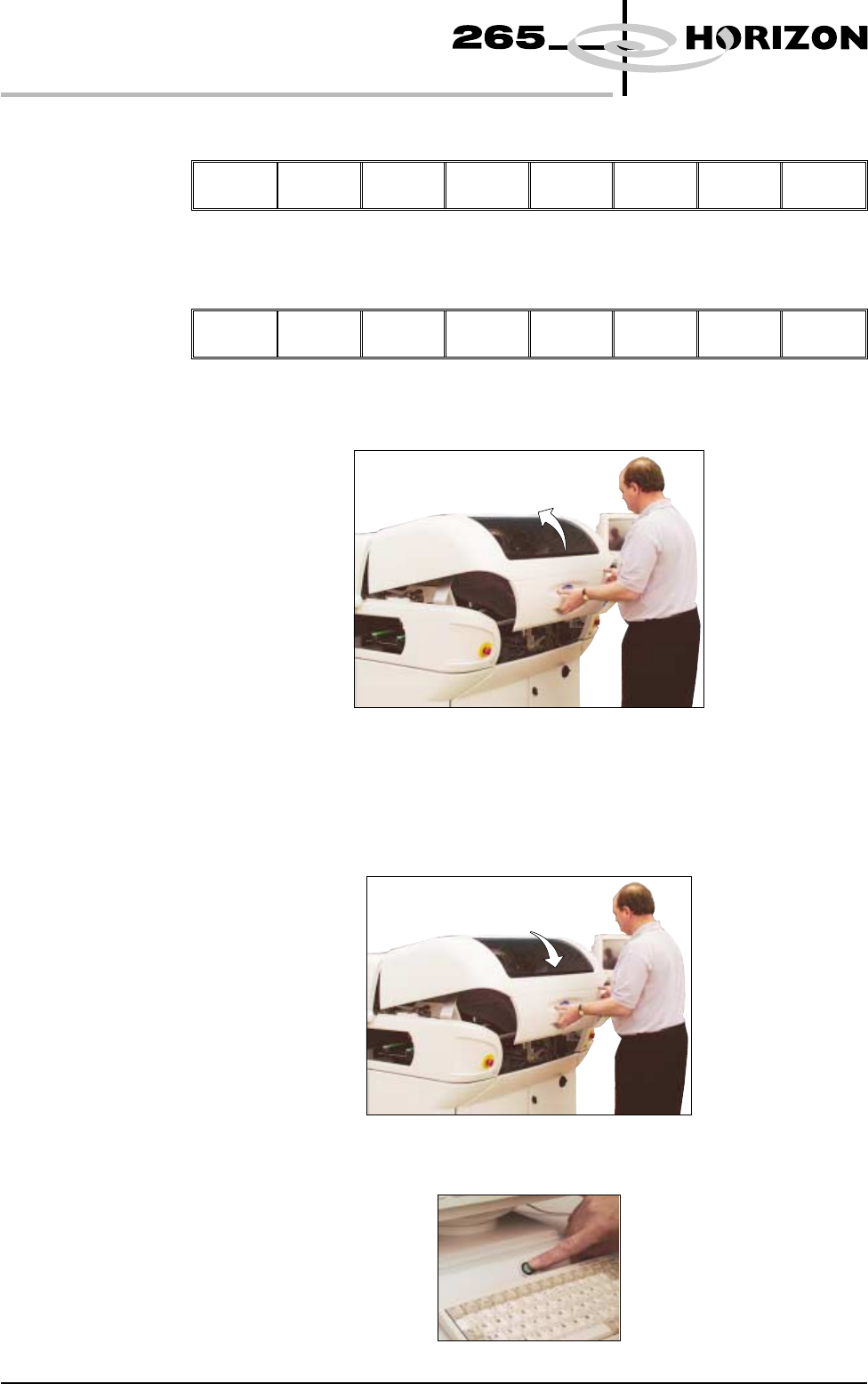

17. Open the front printhead cover.
1.38 User Manual Software Version 6
MACHINE PROGRAMMING
STAGE 5B
18. Select Board Clamps (F3), to open the clamps.
Adjust
Board
Clamps
Set
Stop
Exit
19. Slide a board along the rails to abut the board stop.
20. Select Board Clamps (F3), to close the clamps.
Adjust
Board
Clamps
Set
Stop
Exit

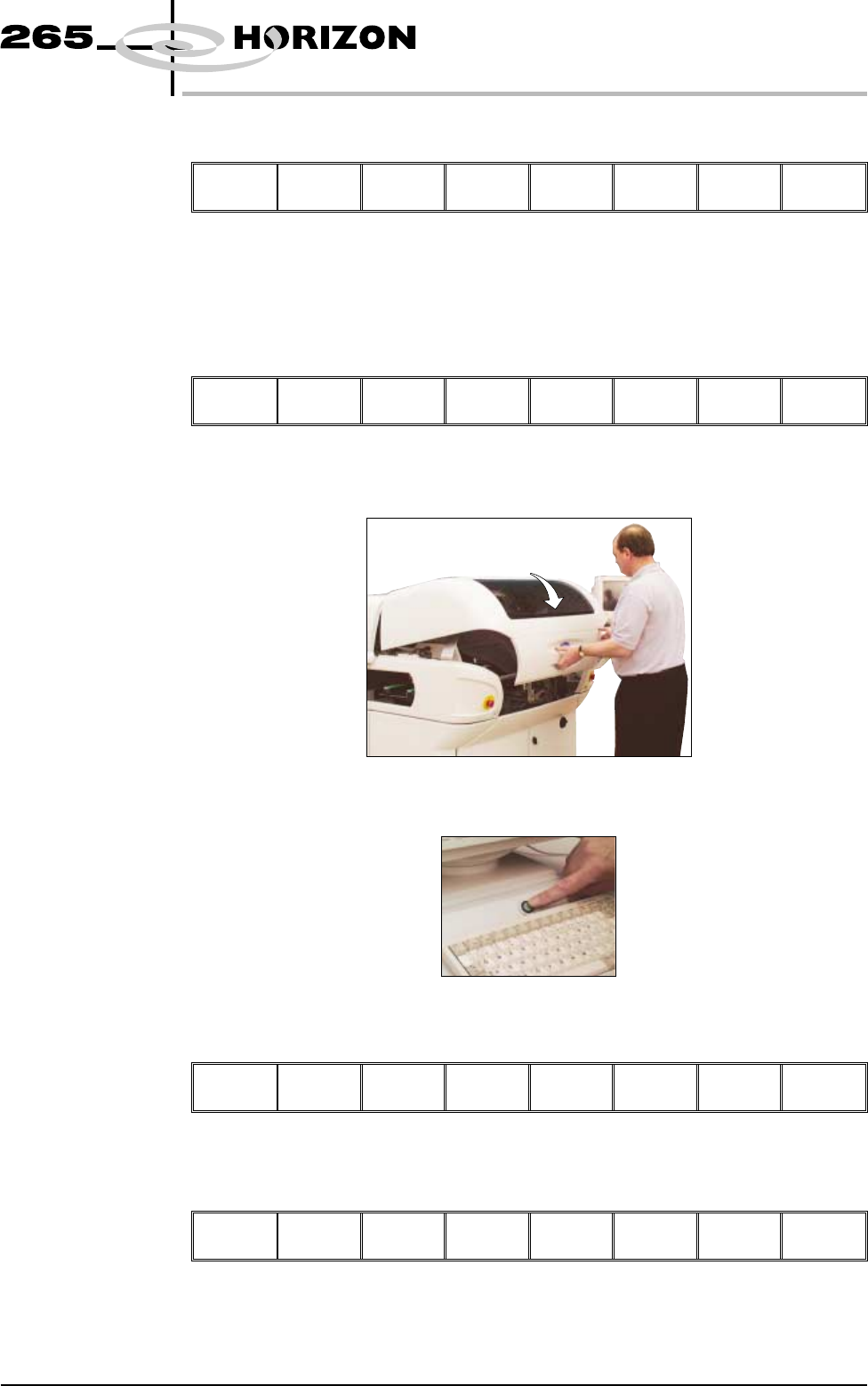

21. Close the front printhead cover.
22. Press the System button.
23. Select Exit (F8).
Adjust Change
Screen
Board
Clamps
Set
Stop
Exit
24. Select Home Camera (F4).
Adjust Open
Cover
Remove
Cleaner
Home
Camera
Full
Width
Load
Width
Print
Height
Exit
Software Version 6 User Manual 1.39
MACHINE PROGRAMMING
STAGE 5B
25. Select Print Height (F7).
Adjust Open
Cover
Remove
Cleaner
Board
Stop
Full
Width
Load
Width
Print
Height
Exit
26. Select Open Cover (F2).
Open
Cover
Home
Position
Exit

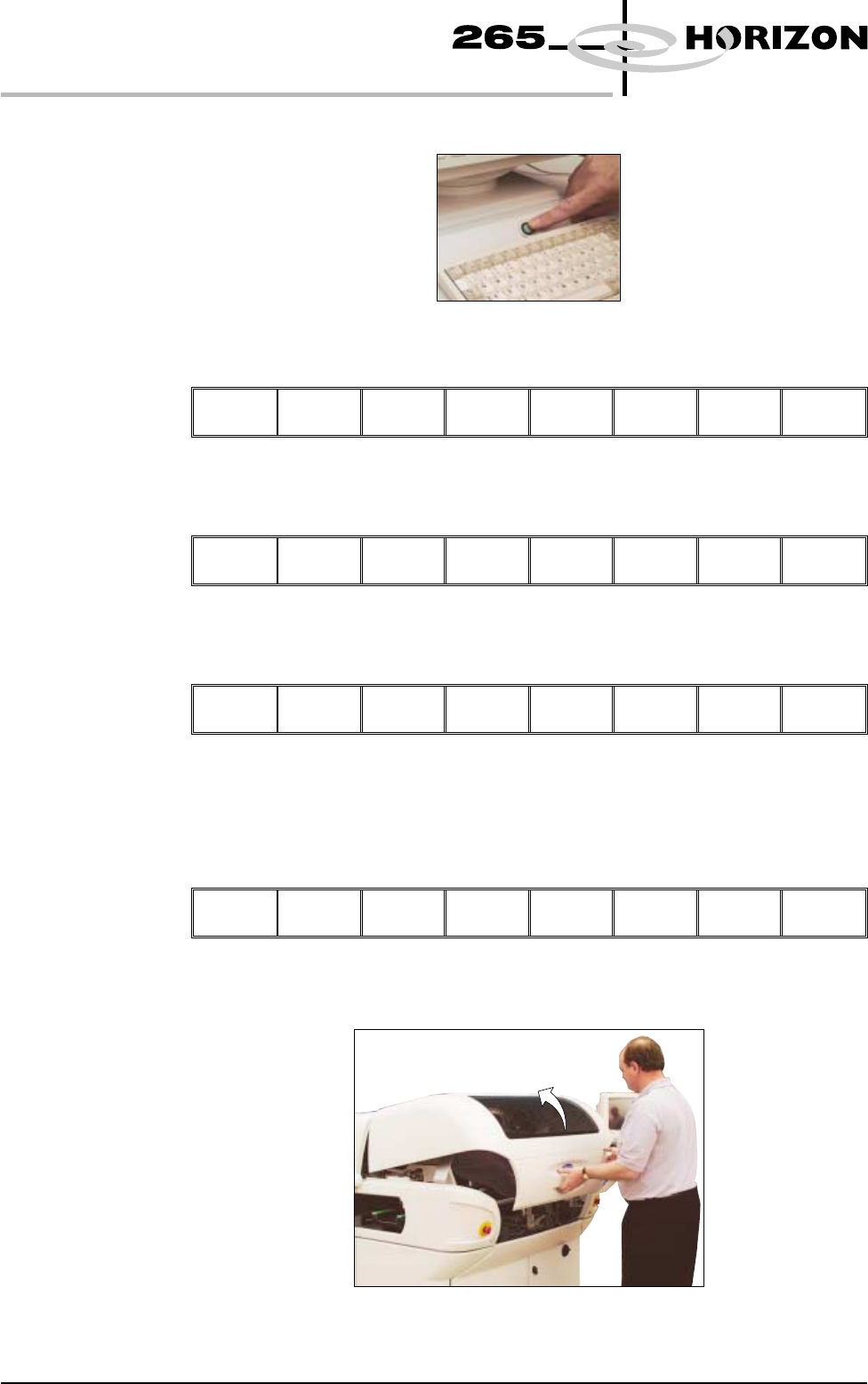

27. Lift the front printhead cover.
28. Check that the setup of the tooling is adequate for the board, adjust as
necessary.
29. Close the front printhead cover.
30. Press the System button.
