25. Select Print Height (F7). Adjust Open Cover Remove Cleaner Board Stop Full Width Load Width Print Height Exit 26. Select Open Cover (F2). Open Cover Home Position Exit 27. Lift the front printhead cover. 28. Check th…
18. Select Board Clamps (F3), to open the clamps.
Adjust
Board
Clamps
Set
Stop
Exit
19. Slide a board along the rails to abut the board stop.
20. Select Board Clamps (F3), to close the clamps.
Adjust
Board
Clamps
Set
Stop
Exit
21. Close the front printhead cover.
22. Press the System button.
23. Select Exit (F8).
Adjust Change
Screen
Board
Clamps
Set
Stop
Exit
24. Select Home Camera (F4).
Adjust Open
Cover
Remove
Cleaner
Home
Camera
Full
Width
Load
Width
Print
Height
Exit
Software Version 6 User Manual 1.39
MACHINE PROGRAMMING
STAGE 5B
25. Select Print Height (F7).
Adjust Open
Cover
Remove
Cleaner
Board
Stop
Full
Width
Load
Width
Print
Height
Exit
26. Select Open Cover (F2).
Open
Cover
Home
Position
Exit

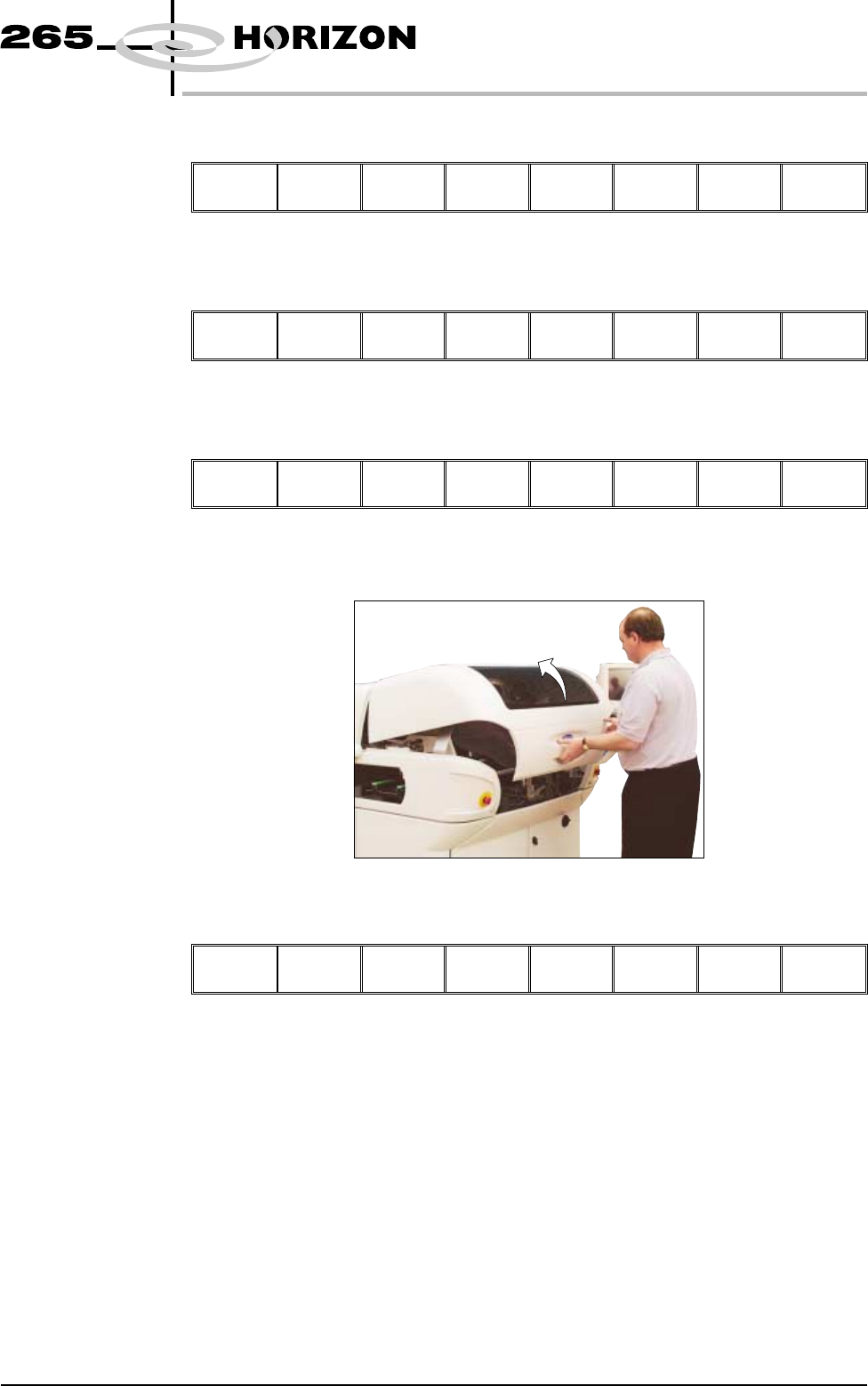

27. Lift the front printhead cover.
28. Check that the setup of the tooling is adequate for the board, adjust as
necessary.
29. Close the front printhead cover.
30. Press the System button.
1.40 User Manual Software Version 6
MACHINE PROGRAMMING
STAGE 5B
31. Select Exit (F8).
Adjust Change
Screen
Board
Clamps
Set
Stop
Exit
32. Select Home Position (F7).
Open
Cover
Home
Position
Exit
33. Select Open Cover (F2).
Adjust
Open
Cover
Remove
Cleaner
Board
Stop
Full
Width
Load
Width
Print
Height
Exit
34. Lift the front printhead cover.
35. Select Board Clamps (F3), to open the clamps.
Adjust
Board
Clamps
Set
Stop
Exit
36. Remove the board from the rails.
Software Version 6 User Manual 1.41
MACHINE PROGRAMMING
STAGE 5B
