9. Lift the front printhead cover.
10. Fit the tooling tower to the manual plate. Ensure the dowels on the front edge
of the tooling tower base are correctly seated in the holes in the front edge of
the manual tooling plate.
11. Verify the plate assembly orientation and fit the assembly to the tooling
tower. Ensure the dowels of the plate assembly are correctly seated in the
holes in the tooling tower.
1.46 User Manual Software Version 6
MACHINE PROGRAMMING
STAGE 5C
View on Rear of Tooling Plate

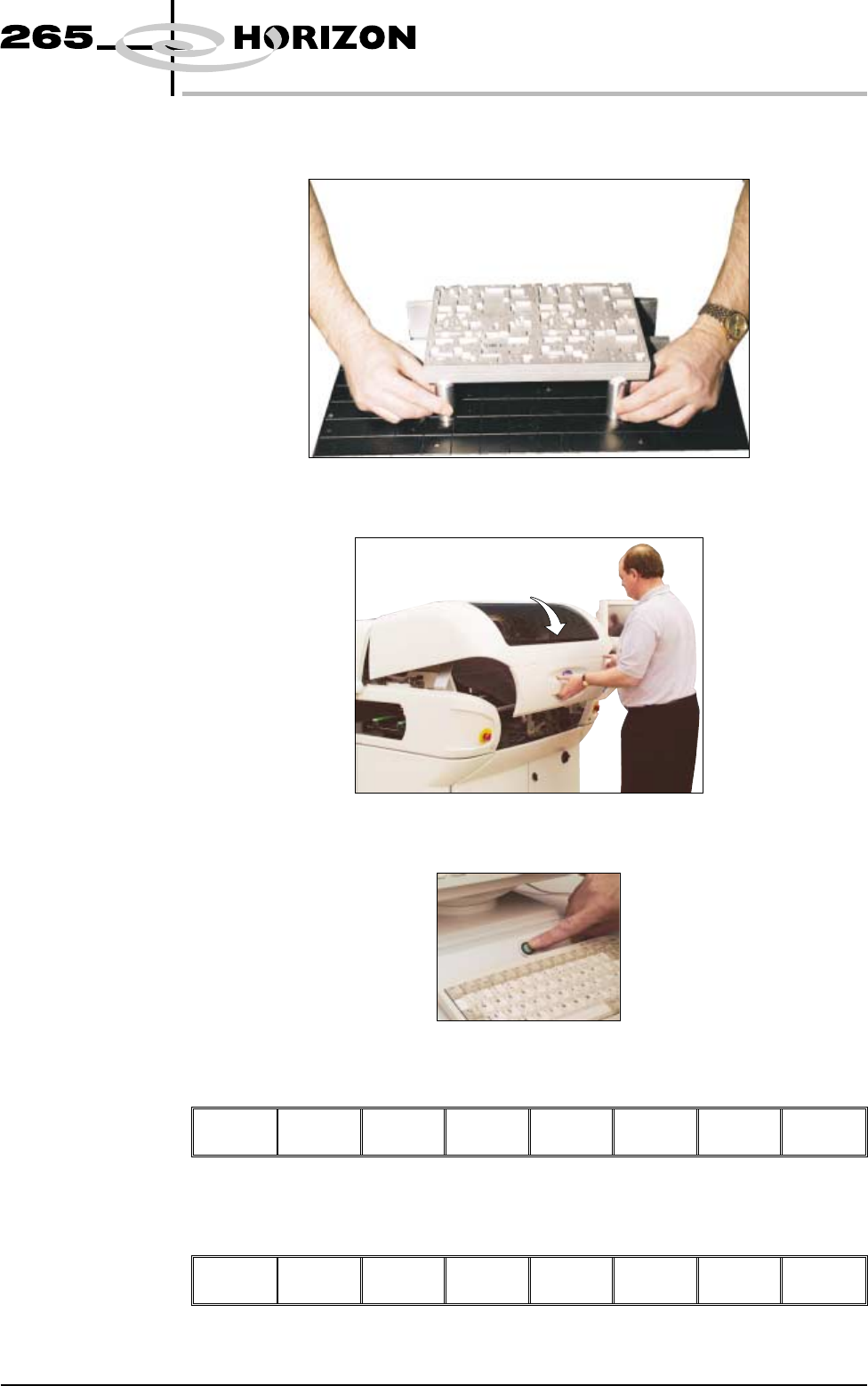

12. If required, slide additional magnetic pins beneath the plate assembly to fully
support it when printing wide boards.
13. Lower the front printhead cover.
14. Press the System button.
15. Select Home Cleaner (F3).
Adjust Open
Cover
Home
Cleaner
Board
Stop
Board
Width
Load
Width
Print
Height
Exit
16. Select Board Width (F5).
Adjust Open
Cover
Remove
Cleaner
Board
Stop
Board
Width
Load
Width
Print
Height
Exit
Software Version 6 User Manual 1.47
MACHINE PROGRAMMING
STAGE 5C

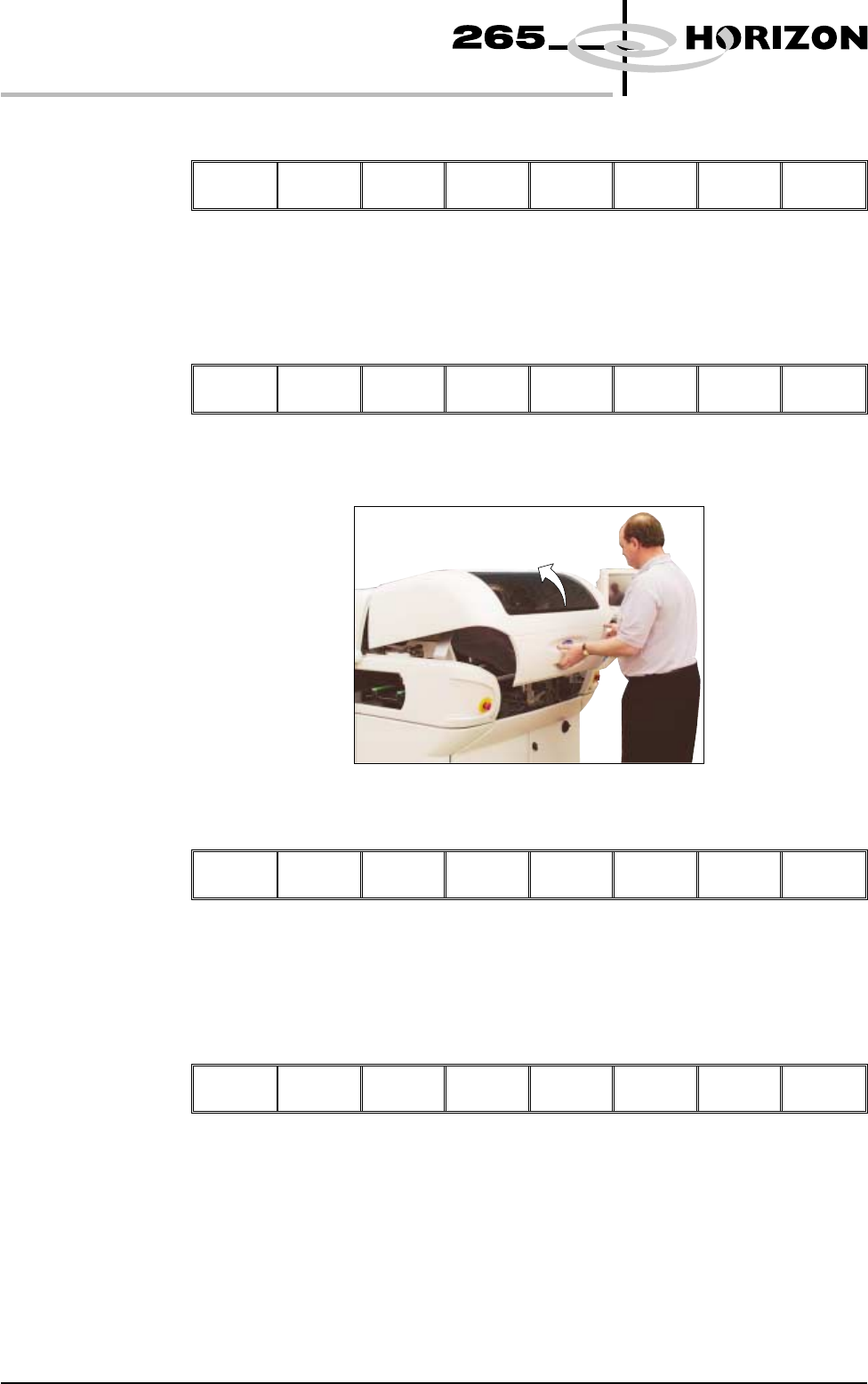

17. Select Board Stop (F4).
Adjust Open
Cover
Remove
Cleaner
Board
Stop
Full
Width
Load
Width
Print
Height
Exit
The camera moves to the board stop position. The board stop on the camera
extends.
18. Select Open Cover (F2).
Adjust
Open
Cover
Remove
Cleaner
Home
Camera
Full
Width
Load
Width
Print
Height
Exit
19. Open the front printhead cover.
20. Select Board Clamps (F3), to open the clamps.
Adjust
Board
Clamps
Set
Stop
Exit
21. Slide a board along the rails to abut the board stop.
22. Select Board Clamps (F3), to close the clamps.
Adjust
Board
Clamps
Set
Stop
Exit
