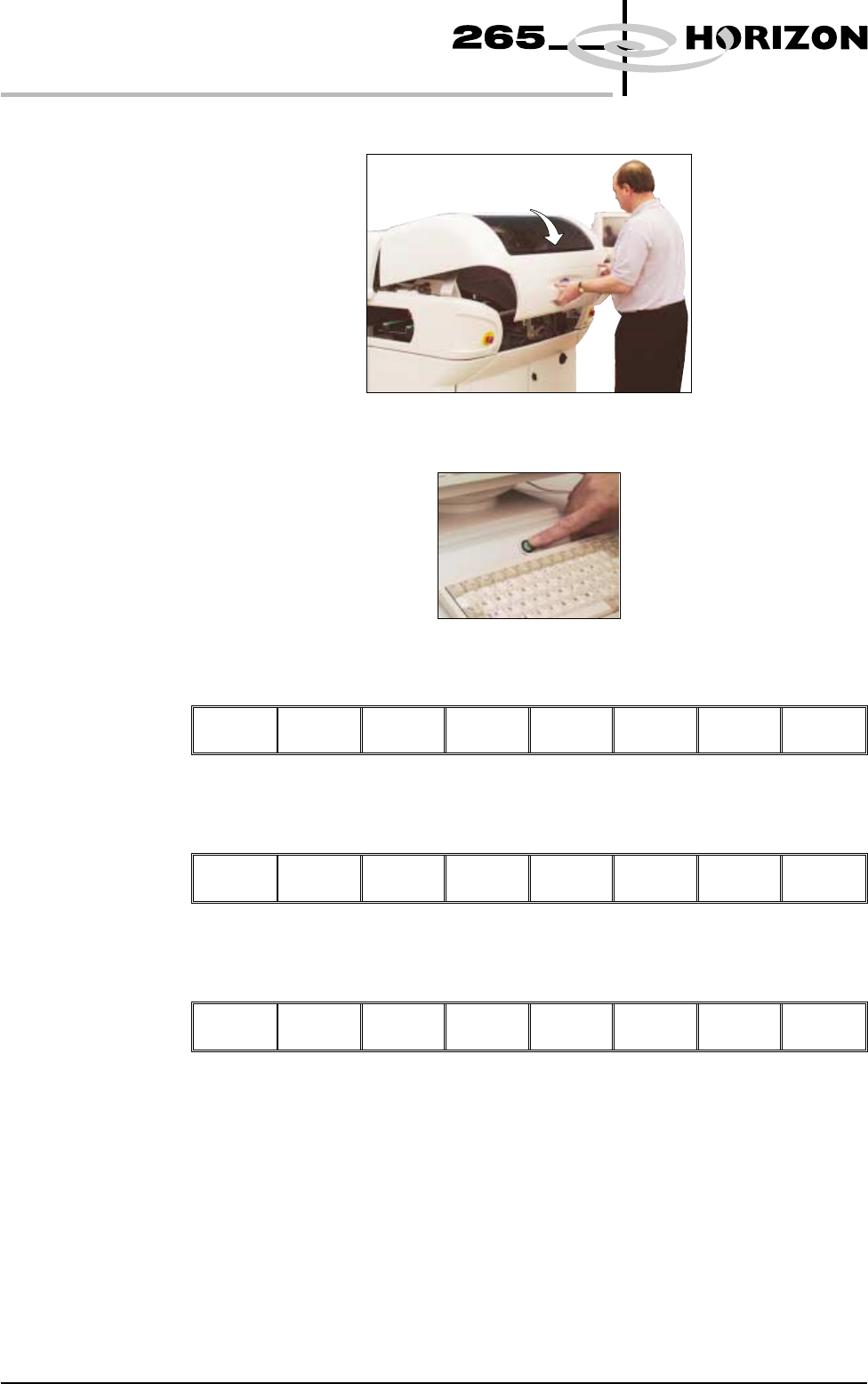

34. Close the front printhead cover.
35. Press the System button.
36. Select Exit (F8).
Adjust Change
Screen
Board
Clamps
Set
Stop
Exit
37. Select Home Position (F7).
Open
Cover
Home
Position
Exit
38. Select Open Cover (F2).
Adjust
Open
Cover
Remove
Cleaner
Board
Stop
Full
Width
Load
Width
Print
Height
Exit
1.60 User Manual Software Version 6
MACHINE PROGRAMMING
STAGE 5D

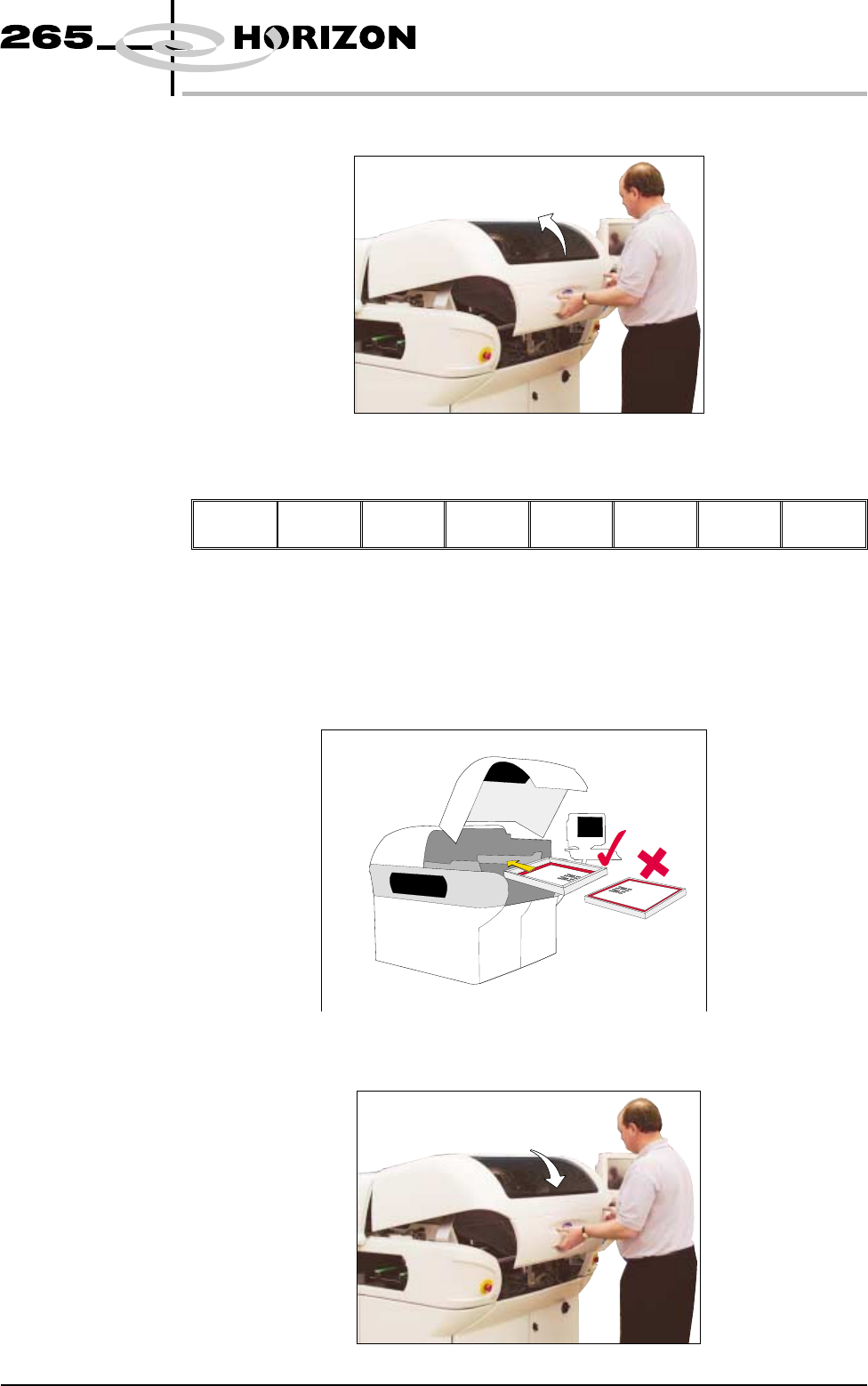

39. Lift the front printhead cover.
40. Select Board Clamps (F3), to open the clamps.
Adjust
Board
Clamps
Set
Stop
Exit
41. Remove the board from the rails.
42. Load the appropriate stencil for the product file loaded, ensuring the correct
orientation of the stencil.
43. Lower the front printhead cover.
Software Version 6 User Manual 1.61
MACHINE PROGRAMMING
STAGE 5D
44. Press the System button.
45. Select Change Screen (F2).
Adjust
Change
Screen
Board
Clamps
Set
Stop
Exit
46. Select Exit (F8).
Adjust Change
Screen
Board
Clamps
Set
Stop
Exit
47. Select Exit (F8).
Adjust Open
Cover
Remove
Cleaner
Board
Stop
Full
Width
Load
Width
Print
Height
Exit
48. Go to Stage 6.
1.62 User Manual Software Version 6
MACHINE PROGRAMMING
STAGE 5D
