13. Select Exit (F8). Change Autoflex Save Next Previous Incr. Decr. Exit 14. Select Exit (F8). Adjust Open Cover Home Cleaner Board Stop Full Width Load Width Print Height Exit 15. Select Exit (F8). Mode Load Data Edit …
8. Select Change Autoflex (F1).
Change
Autoflex
Save Next Previous Incr. Decr. Exit
The Autoflex Matrix window is displayed:
The Autoflex pin matrix has already been setup for this product from the board
dimensions.
9. Use the Left, Right, Up and Down keys (F4 - F7), to select the pin positions
required for editing.
Lower Raise Reset
Left Right Up Down
Exit
10. Use the Lower and Raise keys (F1 - F2), to select or deselect the pins.
Lower Raise
Reset Left Right Up Down Exit
11. Select Exit (F8).
Lower Raise Reset Left Right Up Down
Exit
12. Select Save (F2).
Change
Autoflex
Save
Next Previous Incr. Decr. Exit
Software Version 6 User Manual 1.65
MACHINE PROGRAMMING
STAGE 5E
Autof
l
ex Matr
i
x
14
13
12
11
10
9
8
7
6
5
4
3
2
1
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
---------------
---------------
---------------
---------------
---------------
---------------
---------------
---------------
---------------
---------------
---------------
---------------
---------------
---------------
13. Select Exit (F8).
Change
Autoflex
Save Next Previous Incr. Decr.
Exit
14. Select Exit (F8).
Adjust Open
Cover
Home
Cleaner
Board
Stop
Full
Width
Load
Width
Print
Height
Exit
15. Select Exit (F8).
Mode Load
Data
Edit
Data
Setup
Squeegee
Change
Screen
Change
Tooling
Change
Language
Exit
The rail moves to the board width and the selected Autoflex pins rise.
16. Select Setup (F6).
Run Open
Cover
Paste
Load
Clean
Screen
Adjust
Setup
Monitor Maint.
17. Select Change Tooling (F6).
Mode Load
Data
Edit
Data
Setup
Squeegee
Change
Screen
Change
Tooling
Change
Language
Exit
18. Select Home Cleaner (F3).
Adjust Open
Cover
Home
Cleaner
Board
Stop
Full
Width
Load
Width
Print
Height
Exit
19. Select Board Stop (F4).
Adjust Open
Cover
Remove
Cleaner
Board
Stop
Full
Width
Load
Width
Print
Height
Exit
The camera moves to the board stop position. The board stop on the camera
extends.
1.66 User Manual Software Version 6
MACHINE PROGRAMMING
STAGE 5E
20. Select Open Cover (F2).
Adjust
Open
Cover
Remove
Cleaner
Home
Camera
Full
Width
Load
Width
Print
Height
Exit

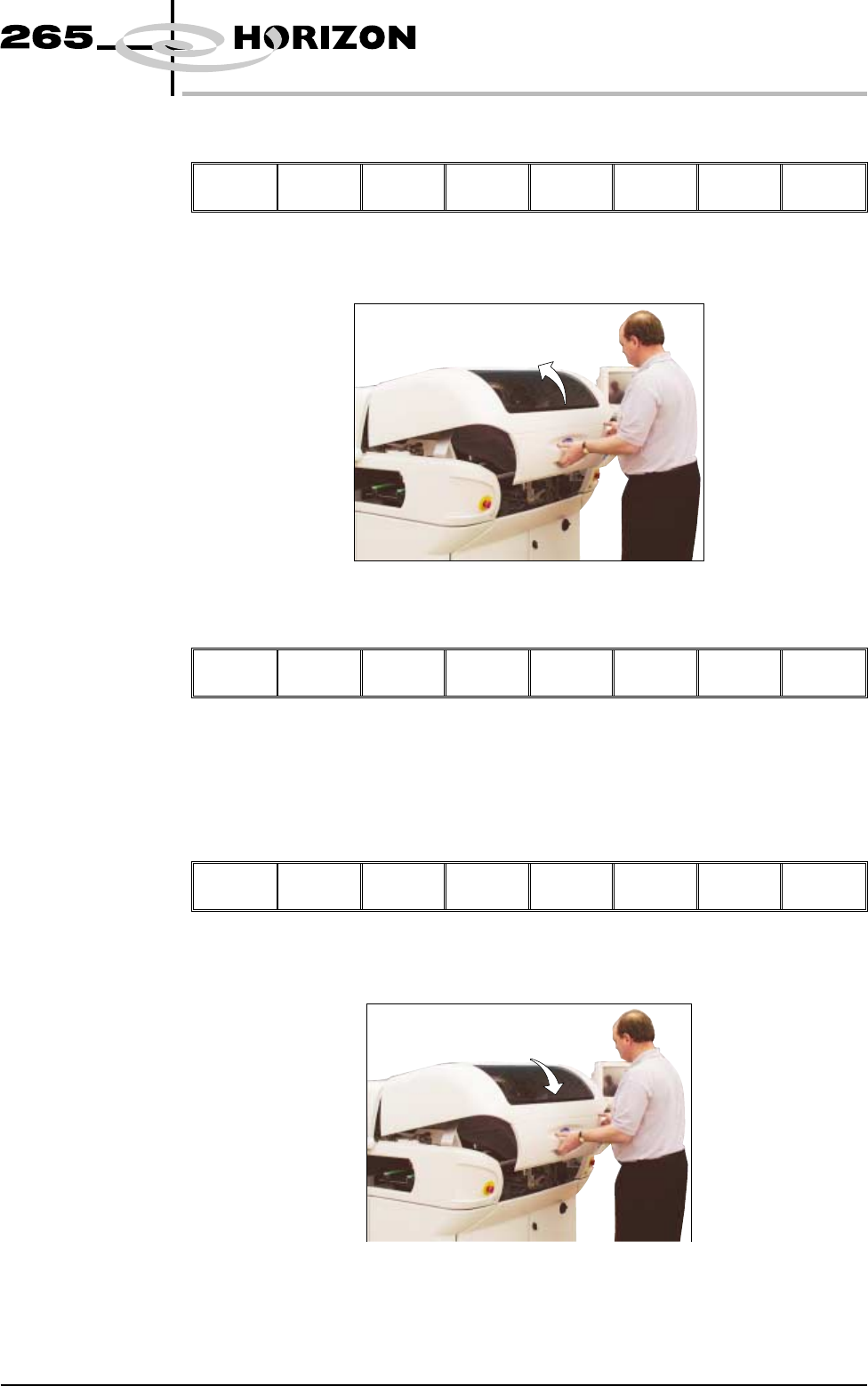

21. Open the front printhead cover.
22. Select Board Clamps (F3), to open the clamps.
Adjust
Board
Clamps
Set
Stop
Exit
23. Slide a board along the rails to abut the board stop.
24. Select Board Clamps (F3), to close the clamps.
Adjust
Board
Clamps
Set
Stop
Exit
25. Close the front printhead cover.
