3.7 Mode:AutomaticStep

3.7.1 Overview

AutomaticStepmode(“Auto‐Step”)simplifiesthepicturetakingprocess.Itallowstheuserto

determinethebeginningandendpositionbyusingtheFWDandBACKbuttons,andalsothe

numberofstepsdesired.Afterthatthecapturingprocessis started.Thereisnoneedtoenter

anydistance–justchoosetheappropriatestartand endpositionthatyoudesire.



3.7.2 NumberofSteps

“#Steps”isthenumberofstepsbetweenthebeginningandendposition.UsetheUP/DOWN

buttonstochoosethenumberofstepsdesired.StackShotalwaystakesapicturepriorto

movingthemotorsothetotalnumberofpicturestakenwillalwaysbe:“#Steps”+1.See

below:



Mode: Auto-Step

> # Steps: 5

Select Start Pos



AsyoucanseeinFigure6below,therearefivesteps(movements)oftherail .Thefirstpicture

startspriortomovingit,andthefinalpictureoccursafterthelaststep.Fivesteps‐‐sixpictures.



Pictures Taken

Step 1 Step 2 Step 3 Step 4 Step 5

Pic 1 Pic 2 Pic 3 Pic 4 Pic 5 Pic 6



Figure6‐StepsVs.Pictures



3.7.3 SelectingtheStart/EndPositions

PresstheSELECTbuttonuntilthecursorison“SelectStartPos”.UsetheFWD/BACKbuttonsto

findtheappropriatebeginningofthepicturesequence.Oncehappywiththatposition,press



18



eithertheUPorDOWNbutton.Thetextonthedisplaywillchangeto“SelectEndPos”.Again,

usetheFWD/BACKbuttonstochoosethefinalpositionofthesequence.Onceagainpressthe

UPorDOWNbuttontoselectthisfinalposition.



3.7.4 StartingtheSequence



Oncethefinalpositionhasbeenselected,thestatus willchangeto“Up/Downtostart”andthe

lastlineonthedisplaywillshow“ChangeSettings”.



Mode: Auto-Step

# Steps: 10

> Up/Down to start

Change Settings



PresstheUPorDOWNbuttontoinitiatethesequence.Themotorwillmovebacktothestart

positionandbegincapturingpictures.Thestatus li newillindicatewhichstepisinprogress:

Mode: Auto-Step

# Steps: 10

Running: 3/10



Ifyoupressanybuttonduringthistimeitwillstopthemotor,abortthesequence,andthe

displaywillshow“Aborted”andgiveyoutheoptiontorunthesequenceagain.Torestartthe

sequence,presseithertheUPorDOWNbutton.

Mode: Auto-Step

# Steps: 10

> Aborted. Run Again?

Change Settings



Whenthesequencecompletes,youalso havetheoptiontorestartbypressingtheUPorDOWN

button.Ifyouwanttochoosenewstartandendpositions,presstheSELECTbuttonsothatthe

cursorisnextto“ChangeSettings”.PresstheUPorDOWNbutton.Youcanthenchooseanew

startandendposition.SeeFigure7belowtode monstrate“Auto‐Step”mode.



19



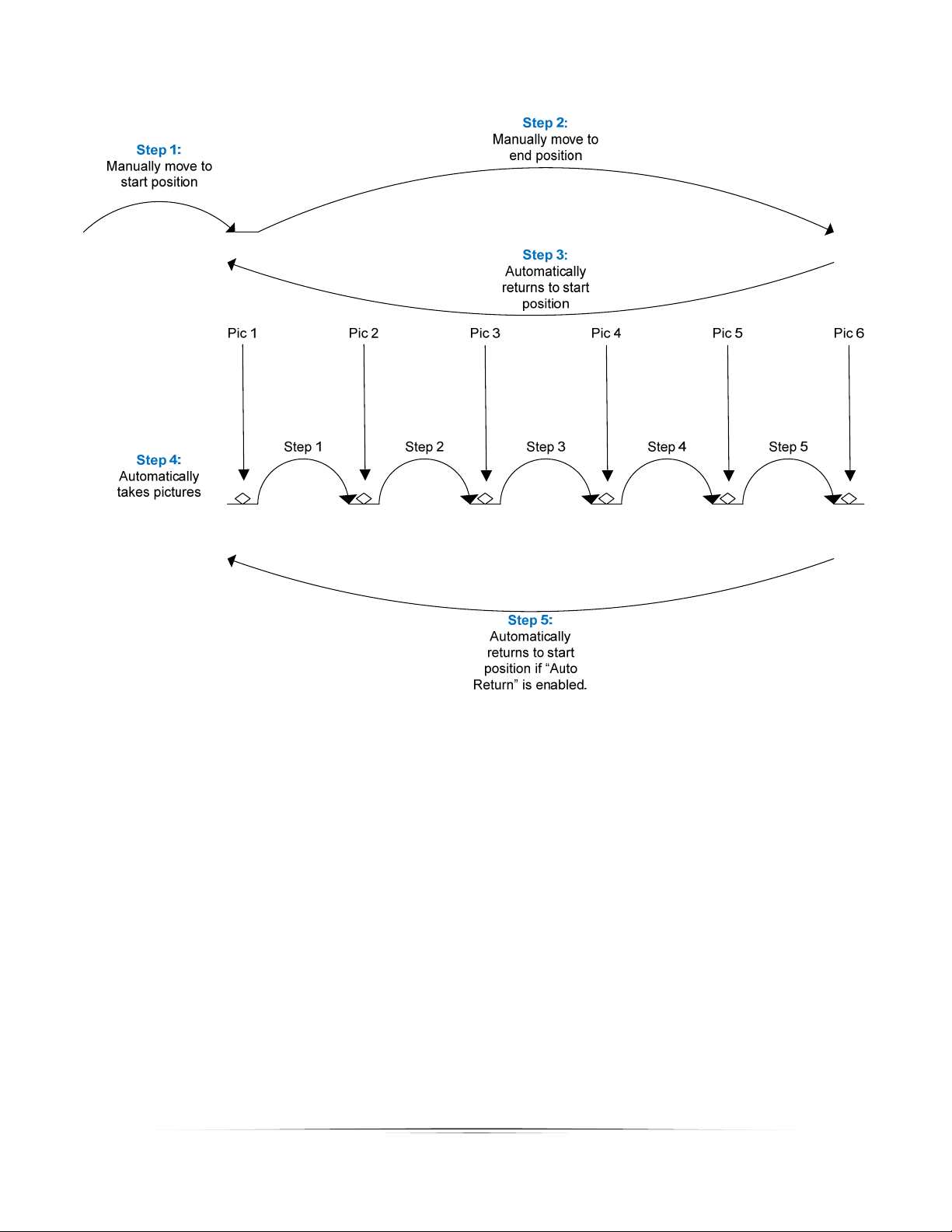

Figure7‐AutomaticStepMode



Note:IfyoupresstheFWDorBACKbuttonsafterthestackhascompleted,therailwillmovein

thedirectiondesired.Ifyouthenchoose“RunAgain?”fromthemenu, itwillusethecurrent

positionoftherailasthestartratherthantheoriginalposition.Thisallowsadjustmentstothe

startingpointwithouthavingtogothroughandchooseanewstartandendpointforthestack.


