3.9 Mode:ManualDistance
3.9.1 Overview
ManualDistancemode(“ManualDist”)isidenticalto“AutomaticDistance”mode(seesection
3.8above)exceptthateachstepmustbemanuallyadvanced.Thisisusefulforapplications
wherethecamera,subject,dye,ormaterialmayhaveavariableamountoftimebeforethe
nextpictureisdesired.Thismodeisgearedtoward specializedapplicationsandwewould
recommendtheuseof“AutomaticDistance”undermostcircumstances.
3.9.2 Advancingtherail
Afterthestartandstoppointshavebeenselectedlikeinthe“AutomaticDistance”mode,the
railwillautomaticallymovetothestartpointandtakethefirstpicture(orpictures).Oncethe
“Toff”timeexpiresyouwillseethefollowing:
Mode: ManualDist
Dist/Step: 200 um
> Up/Down for next
AtthispointyoumaypressUPorDOWNtoadvancetothenextposition.
24
3.10 Mode:TotalTravelDistance
3.10.1 Overview
Inthisoperatingmode(“TotalDist”)youcanselectthetotaldistancetherailw illtravelandthe
numberofstepstouseinthatgivendistance.Tonavigatethroughtheoptions,pressthe
SELECTbutton.
3.10.2 NumberofSteps
The“#Steps”optionfunctionsidenticallytothe“AutomaticStep”mode.Itisthenumberof
steps(movementsoftherail)inthespecifieddistancebelow.UsetheUP/DOWNbuttonsto
adjustthenumberofstepsdesired.
Mode: Total Dist
> # Steps: 5
Distance: 10.0 mm
Start (up/down)
3.10.3 TotalDistance

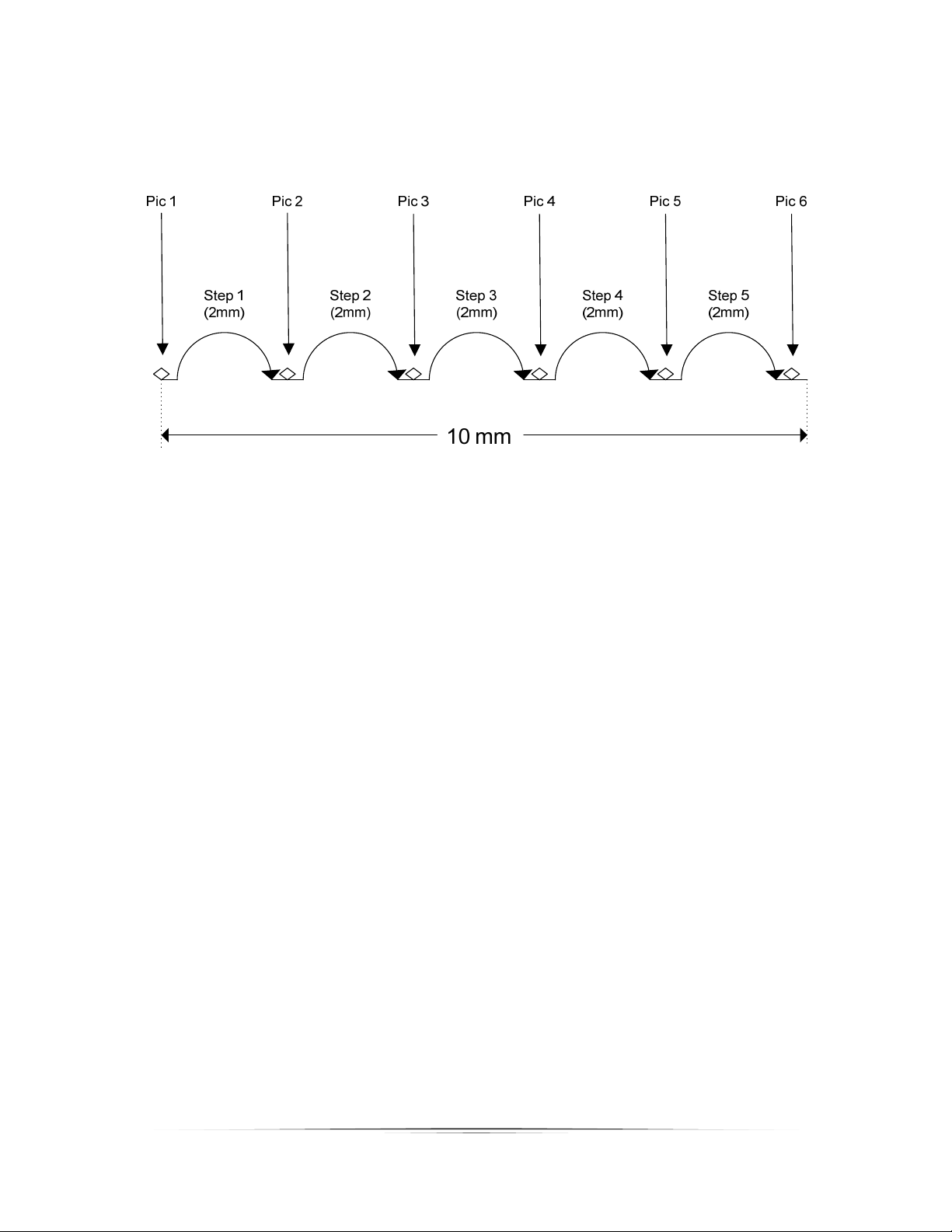

Totaldistance(“Distance”)specifiesthecompletedistancetomovetherail.StackShotwill
automaticallycalculatethedistanceofeachsteprequiredtoresultinthetotaldistancedesired.
Mode: Total Dist
# Steps: 5
> Distance: 10.0 mm
Start (up/down)
3.10.4 StartingtheSequence
PresstheSELECTbuttonuntilitisnexttothe“Start(up/down)”text.
Mode: Total Dist
# Steps: 5
Distance: 10.0 mm
> Start (up/down)
Thedirectionthattherailtravelsiscompletelydependentonwhichbuttonyoupresstoinitiate
thesequence.IfyoupresstheUPbutton,therailwillmovetowardthesubject.Ifyoupress
theDOWNbutton,itwillmoveaway.
Pressinganybuttonwillstopthemotorfrommovingtherailandabortthesequence.
