1 Assembly instructions Support wheels fo r SIPLACE Splice cart (00166705-01) SIPLACE 08/2008 Edition 8 1.6 Inst allation : Overturn the SIPL ACE splice cart. 1 W atch your hands an d feet! 1 1 1 1 1 1 1 1 1 1
SIPLACE 1 Assembly instructions Support wheels for SIPLACE Splice cart (00166705-01)
08/2008 Edition
7
1.3 Requirements
SIPLACE splice cart item no.: 03066234-01 1
1.4 Scope of delivery
– 1 x supporter for left side (pre-assembled)
– 1 x supporter for right side (pre-assembled)
– 2 x socket head screws M10 x 30 mm
– 2 x self locking nut M10
1.5 Necessary tools
– Set of hexagonal socket spanners
– Set of flat wrench
– Flat wrench no.17
1
1
1 Assembly instructions Support wheels for SIPLACE Splice cart (00166705-01) SIPLACE
08/2008 Edition
8

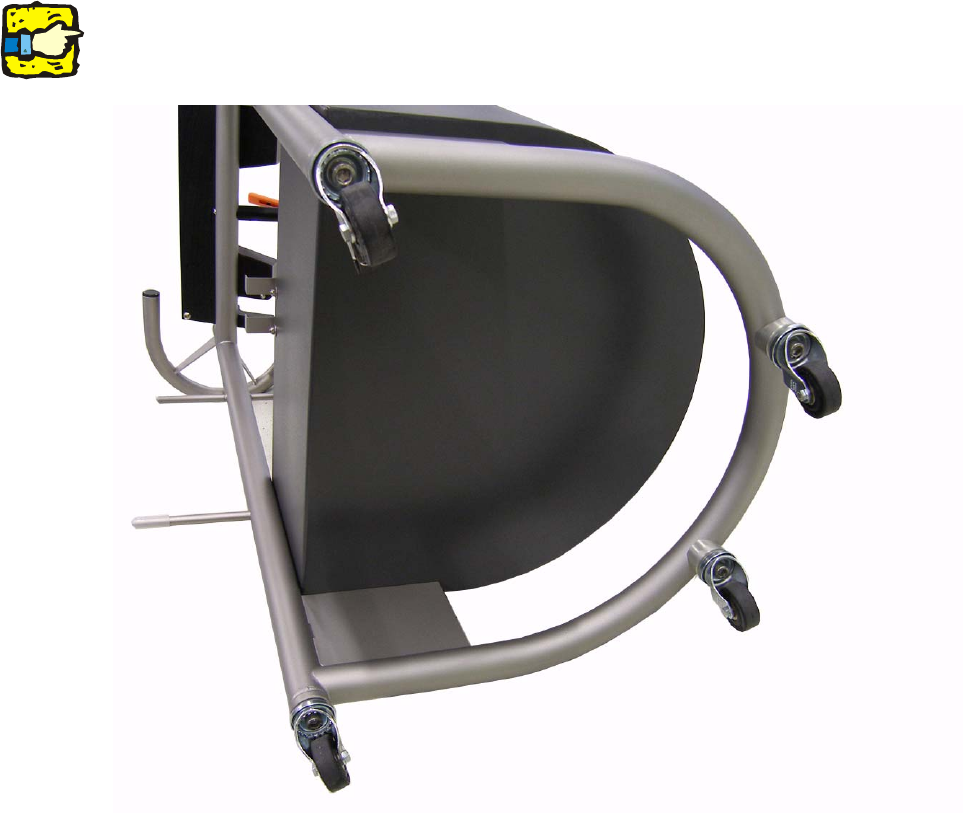

1.6 Installation
: Overturn the SIPLACE splice cart.
1
Watch your hands and feet! 1
1
1
1
1
1
1
1
1
1
SIPLACE 1 Assembly instructions Support wheels for SIPLACE Splice cart (00166705-01)
08/2008 Edition
9

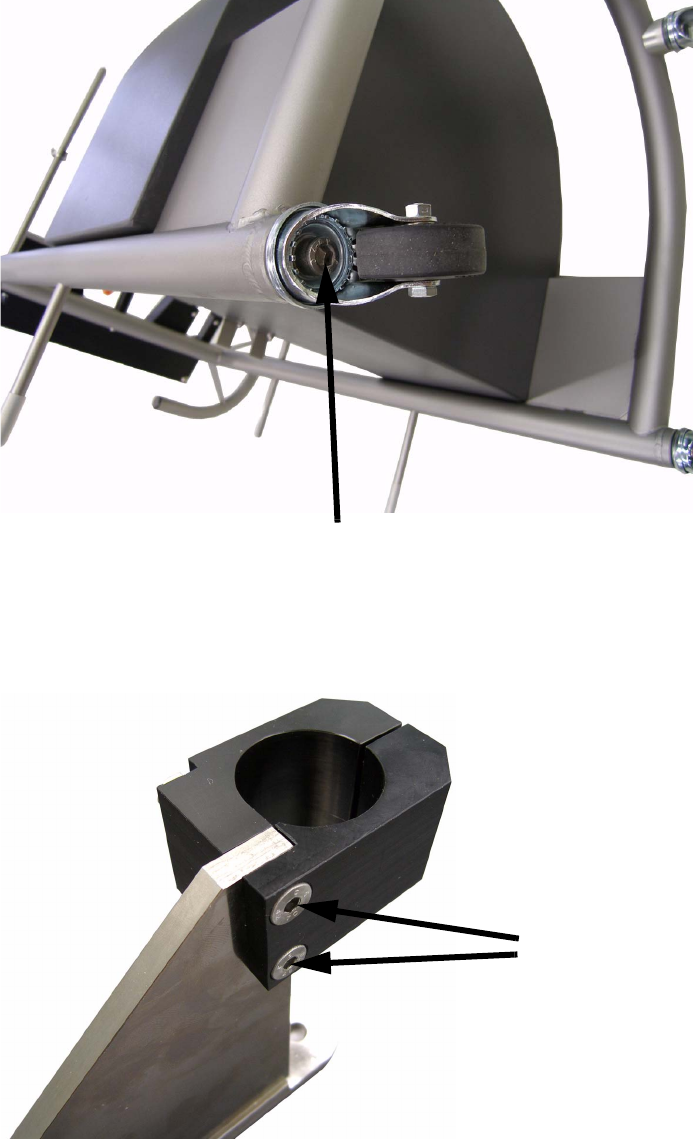

: Start the assembly with the right supporter.
: Loosen the socket head screw where the wheel in mounted on the splice cart shown on the
next figure.
1
: Take the supporter for the right side and loose both screws to remove the bracket from the sup-
porter.
1
Loosen this screw
Loosen these screws
