Page SAMSUNG TECHWIN 90 SM421 E lectric Device Ass’y (4/4) CAN FEEDER EXTENSION BOARD LC1D096BD LC1D096BD U F20TBH NOI SE FI LT ER RATI NG: 450V20A 23 24 4 20 21
Page
SAMSUNG TECHWIN
89
SM421
Electric Device Ass’y (3/4)
U F20TBH
NOISE FILT ER
RATING: 450V20A
CAN FEEDER EXTENS
ION BOARD
CAN FEEDER BOARD
1
30
CAN CONVEYOR BOARD
3
2
31
32
33
34
36
35
37
9
10
U F20TBH
NOISE FILT ER
RATING: 450V20A
22
SM421
22
SM421N
Page
SAMSUNG TECHWIN
90
SM421

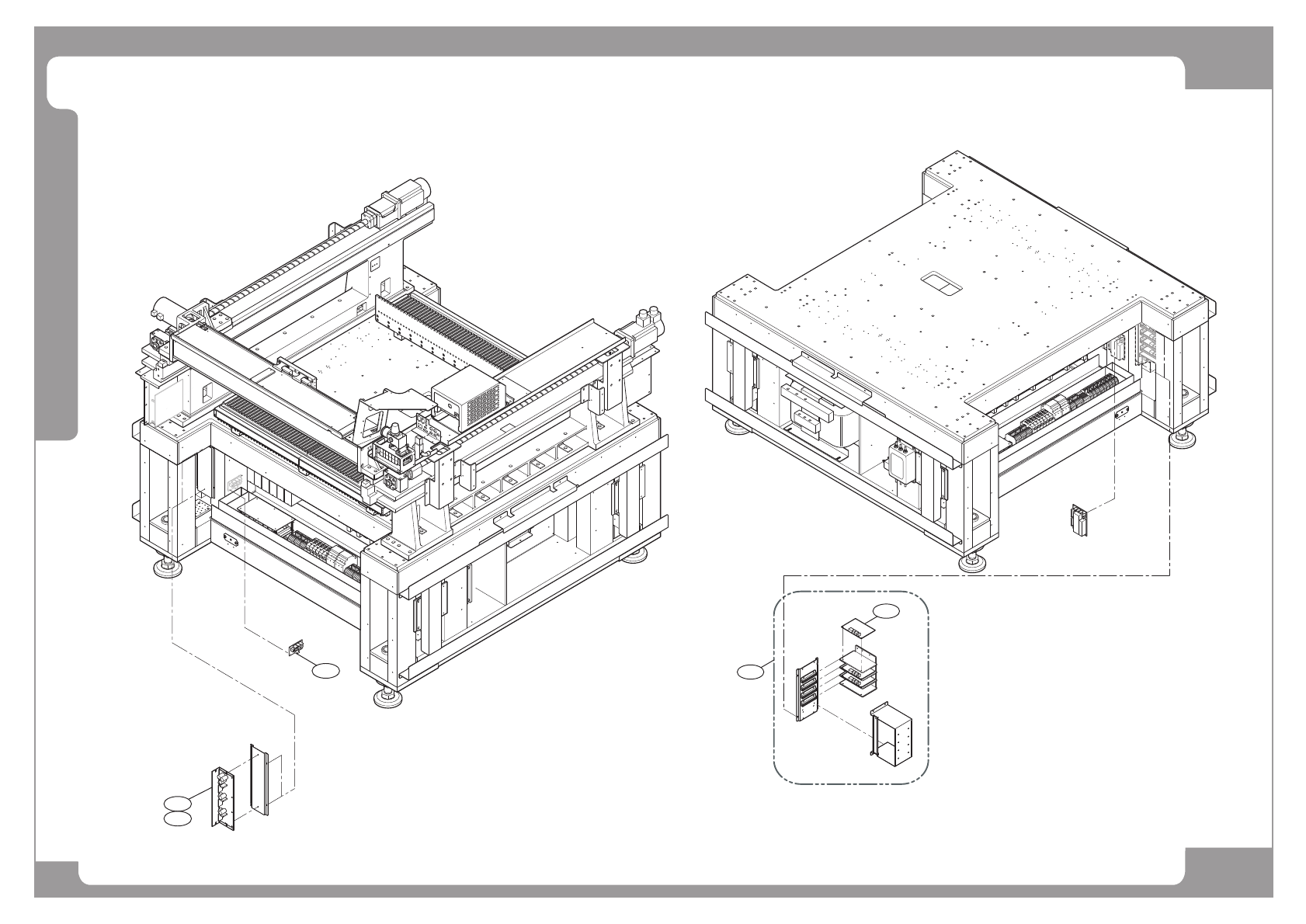

Electric Device Ass’y (4/4)
CAN FEEDER EXTENSION BOARD
LC1D096BD
LC1D096BD
U F20TBH
NOISE FILT ER
RATING: 450V20A
23
24
4
20
21
Page
SAMSUNG TECHWIN
91
SM421
Electric Device Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
A-1 J91681007A ELECTRIC_DEVICE_ASSY J91681007A 1
J91681020A SM421F_ELECTRIC_DEVICE_ASSY 1 SM421F
1 J91741042A SM421_AXIS_SENSOR_BOARD_ASSY VER1.0 1
2 J91741076A CONV_SUB_IF_BOARD 1
3 J91741049B CAN_CONVEYOR_BOARD 1
4
5 J7152027A GROUND TERMINAL [J7152027A] 1
6 J3603020A MAIN CIRCUIT BREAKER[GV2-ME20] 1
7 J3716070A PANEL[GV2-AF02] 1
8 J3713061A CONNECTOR[555376-1] 1
9 J26051001A TRANSFOMER 5KVA, 3PHASE 1
10 J29011001A NOISE_FILTER UF20TBH 1
11 J52011002A MINI_KEYBOARD 5510UH 1
12 J53011032A LCD_MONITOR_15 1 J53011015A
13 J6309025A FAN COVER[PFC120(FOR 120? FAN)] 2
14 J7452038A MOUSE PAD - OPTICAL[J7452038A] 1
15 J47131010A TOWER_LAMP PTE-APV-302-RYG(510) 1
16 J90601023B TEACHING_BOX 1
17 J52021011A OPTICAL MOUSE 1 J52021006A
18 J34060005B LOAD SWITCH 1
19 J3409029A KEYLOCK SWITCH[AS6M-2KT2PB] 1
20 J90601060A CONVEYOR_STEP_MOTOR_DRIVER_ASSY 1 J90511020A
21 J31521022A STEP_MOTOR_DRIVER_2AXIS 3 J31521002B
22 J44011001C POWER_SUPPLY 2
23 J90511022A HEAD_R_MOTOR_DRIVER_ASSY J90511022A 1
24 J31521016A R_AXIS_DRIVER_MD5_HD14_3X MD5_HD14_3X 1
25 J6404001A DOOR KEY 2
